Engine Front Cover Installation Note

Apply a 6 mm {0.24 in} dot of silicone sealant at the indicated location.

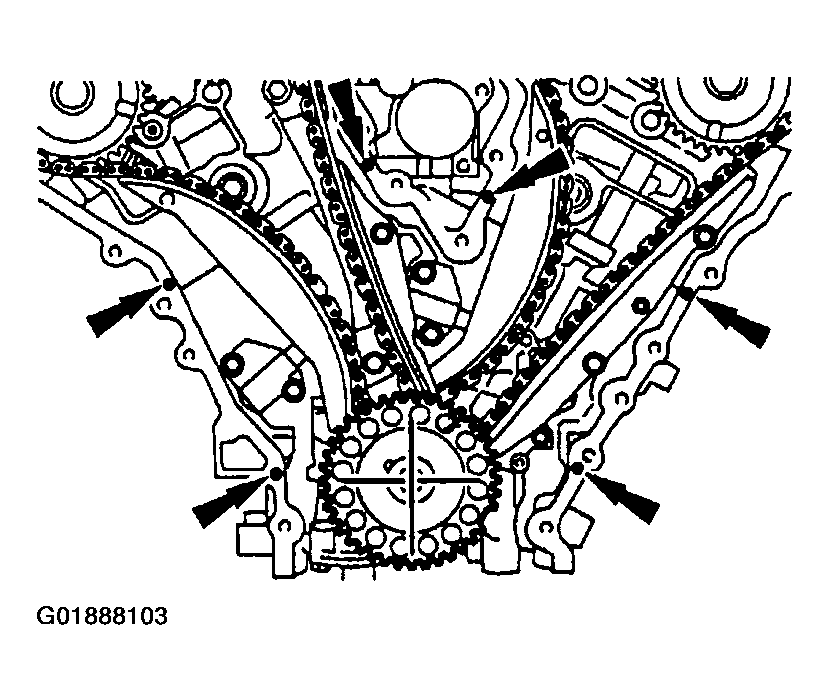

Fig 1: Apply Dot Of Silicone Sealant To Indicated Locations
Courtesy of MAZDA MOTORS CORP.
Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown.

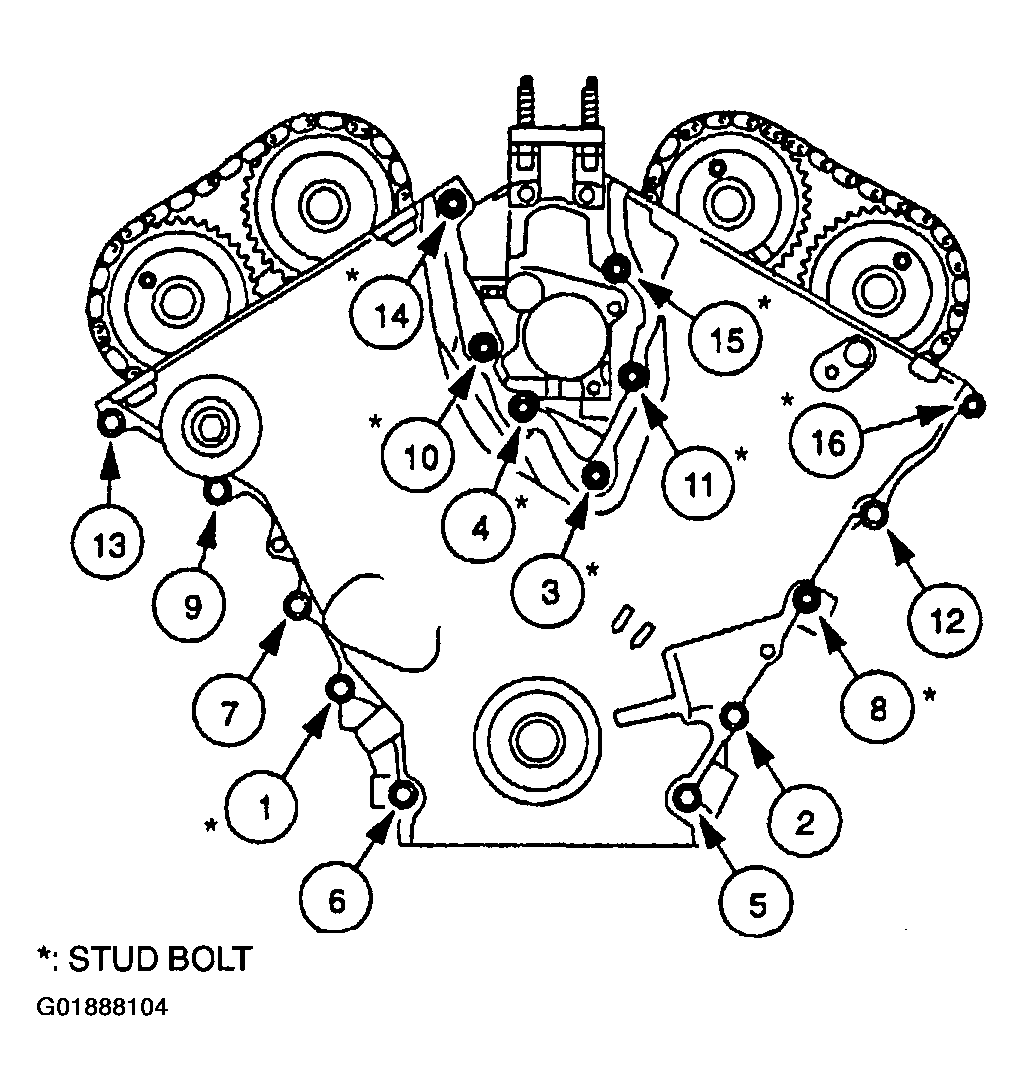

Fig 2: Bolts And Studs Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
