Removal & Installation (Miata)

1. Remove air hose. See INTAKE AIR SYSTEM .
2. Remove in order indicated in illustration. See Fig 1.
3. To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

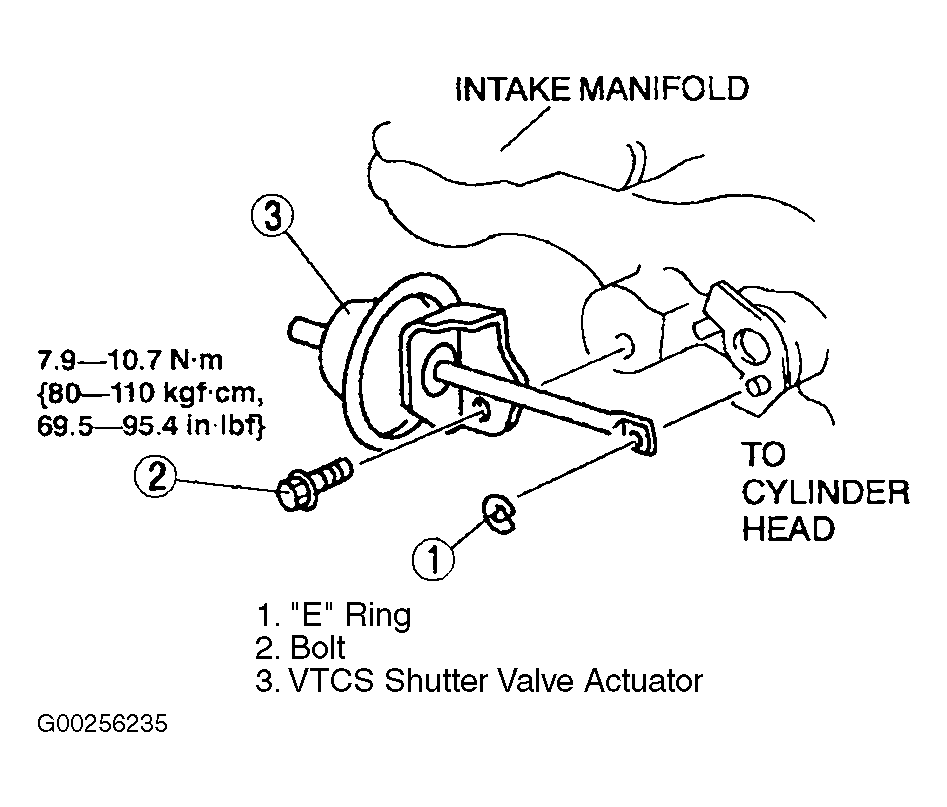

Fig 1: Removing & Installing VTCS Shutter Valve Actuator - Miata

Courtesy of MAZDA MOTORS CORP.
