Technical Data (Engine Mechanical)
›
Engine Technical Data
Engine Technical Data

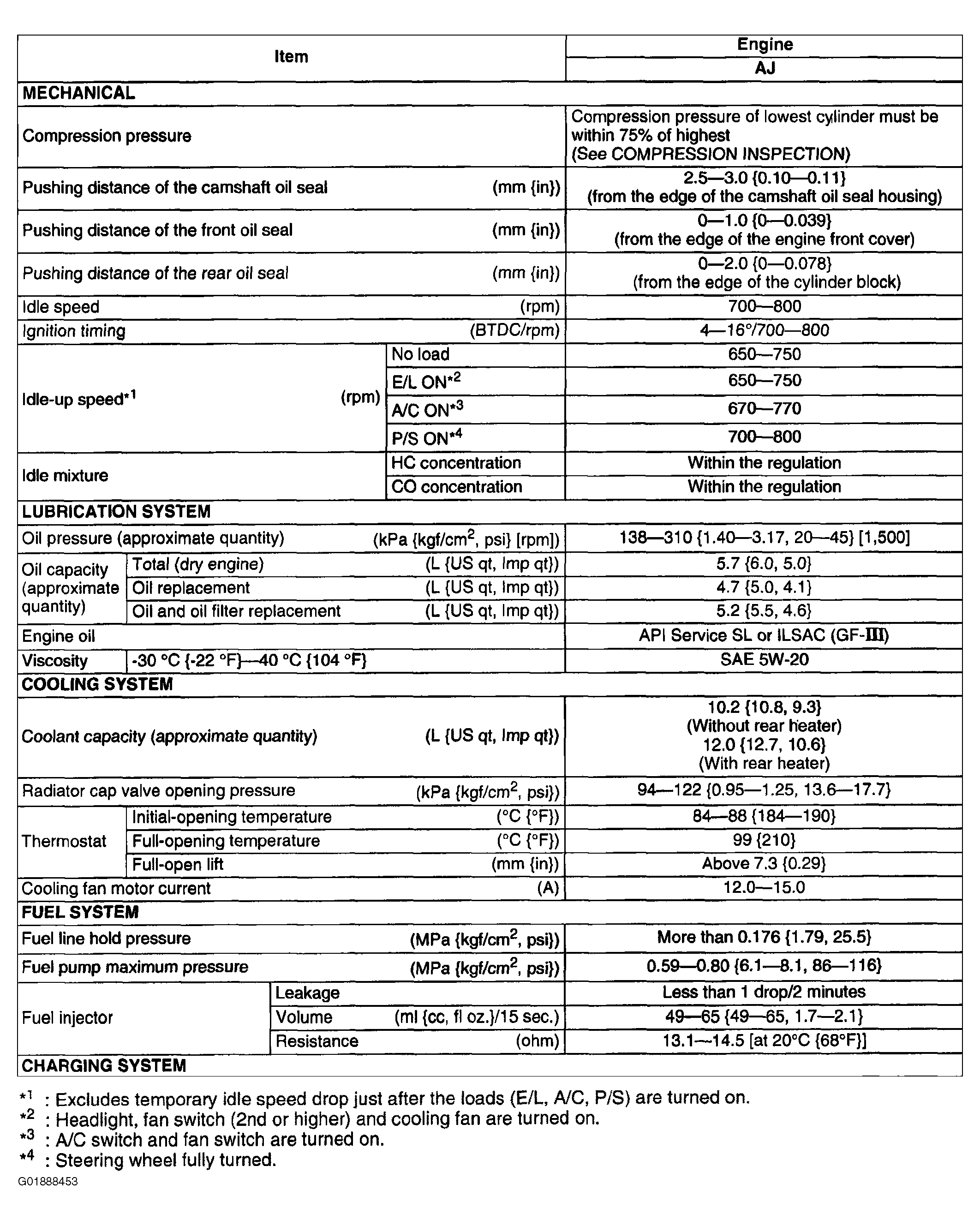

Fig 1: Engine Technical Data Sheet (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

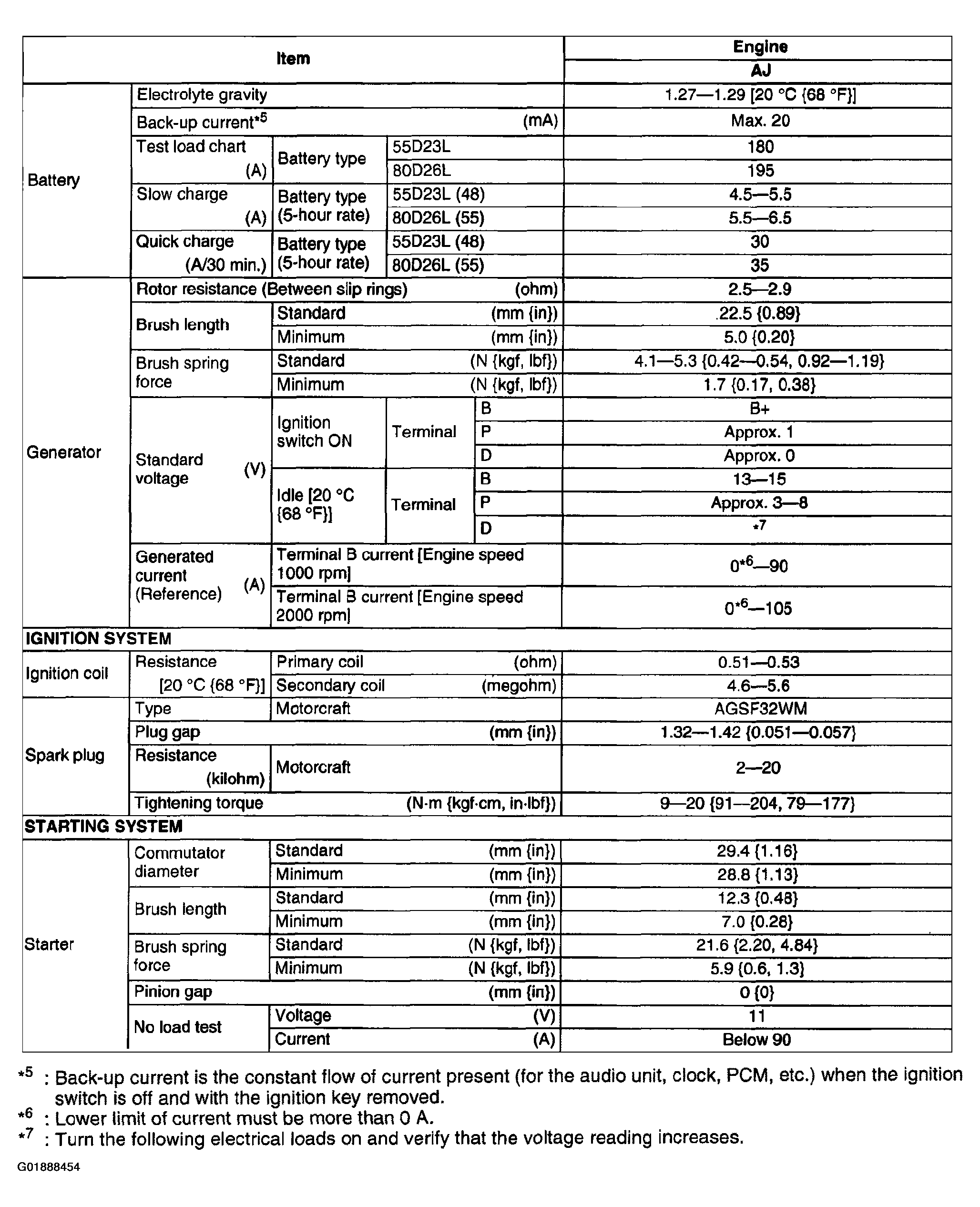

Fig 2: Engine Technical Data Sheet (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
