Firing Order: Notes
NOTE:
Firing order information for Mazda6 is not available from manufacturer.
NOTE:

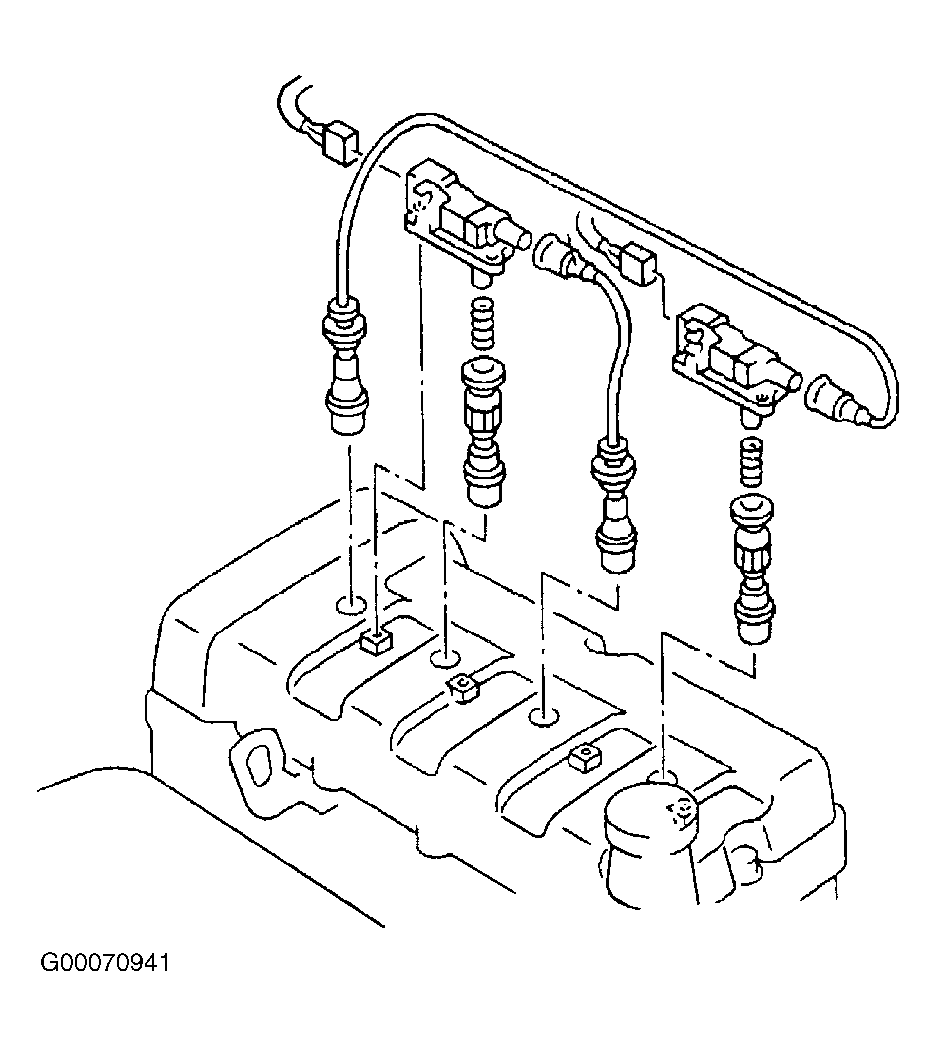

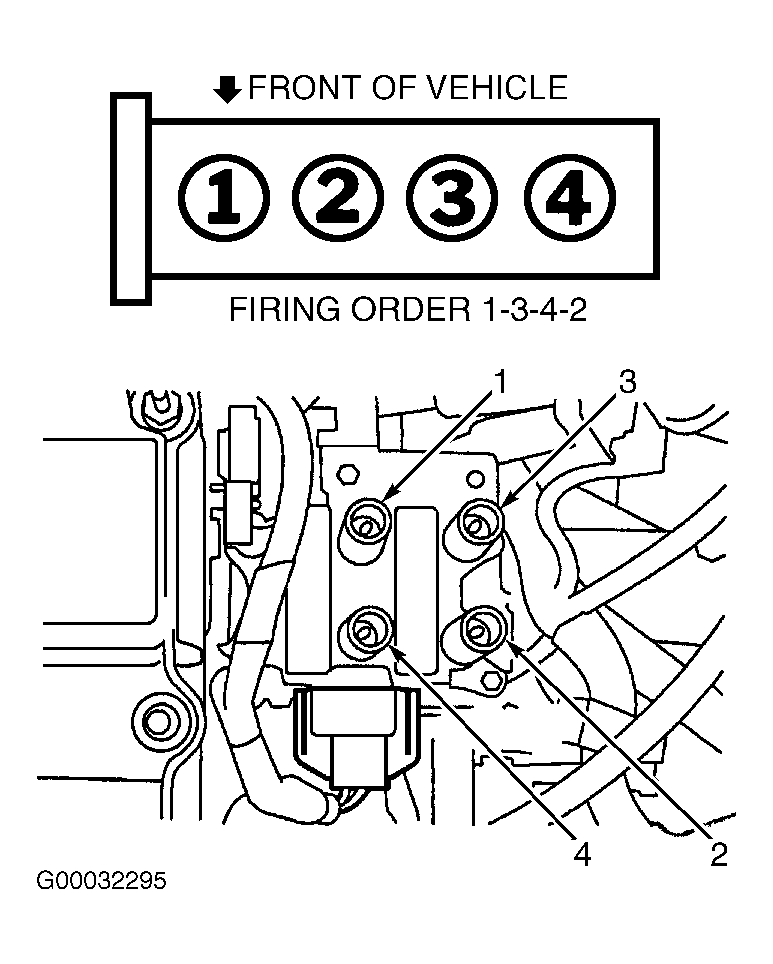

Firing order and coil pack information, see Figure-Figure
NOTE:
On Miata, Protege and Protege5, cylinders No. 1 and No. 4, and cylinders No. 2 and No. 3 are fired simultaneously (wasted spark).
