Vacuum Diagrams: Introduction: Protege

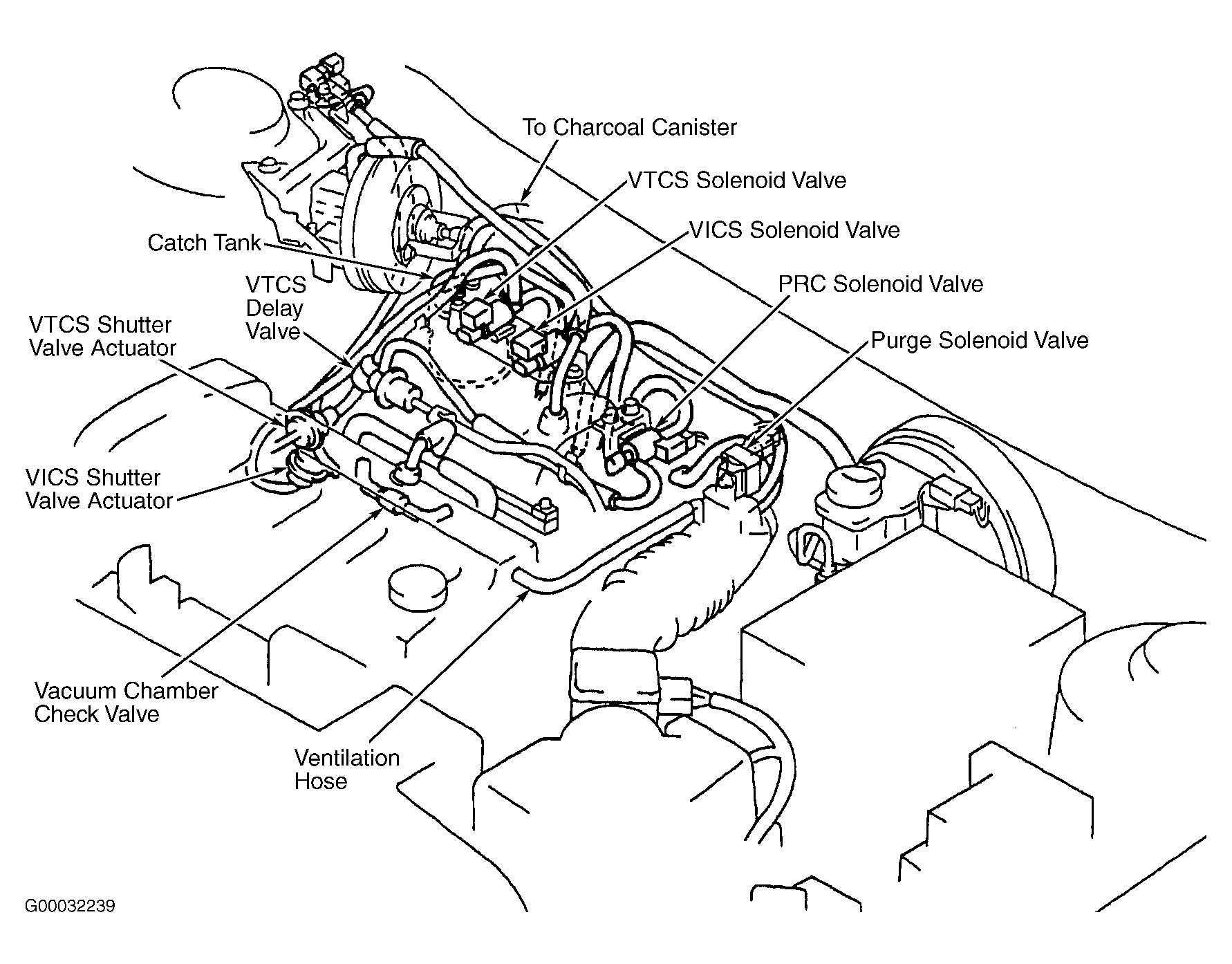

Fig 1: Vacuum Diagram - 2003 (Protege 2.0L)
G00032239Courtesy of MAZDA MOTORS CORP.
