Rear Stabilizer Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the illustration.
Install in the reverse order of removal.

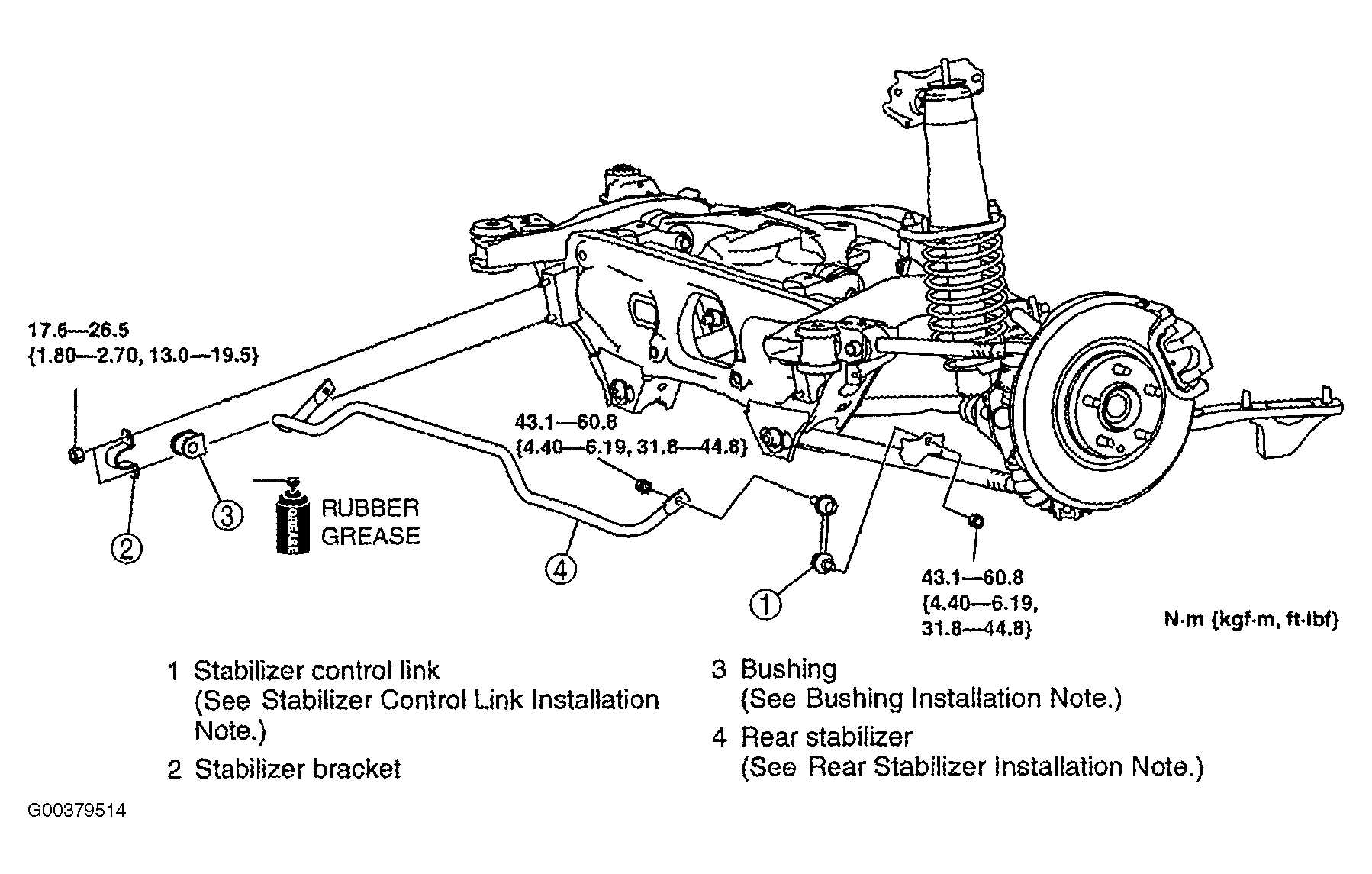

Fig 1: Removing/Installing Rear Stabilizer

Courtesy of MAZDA MOTORS CORP.
