Automatic Transaxle Basic Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

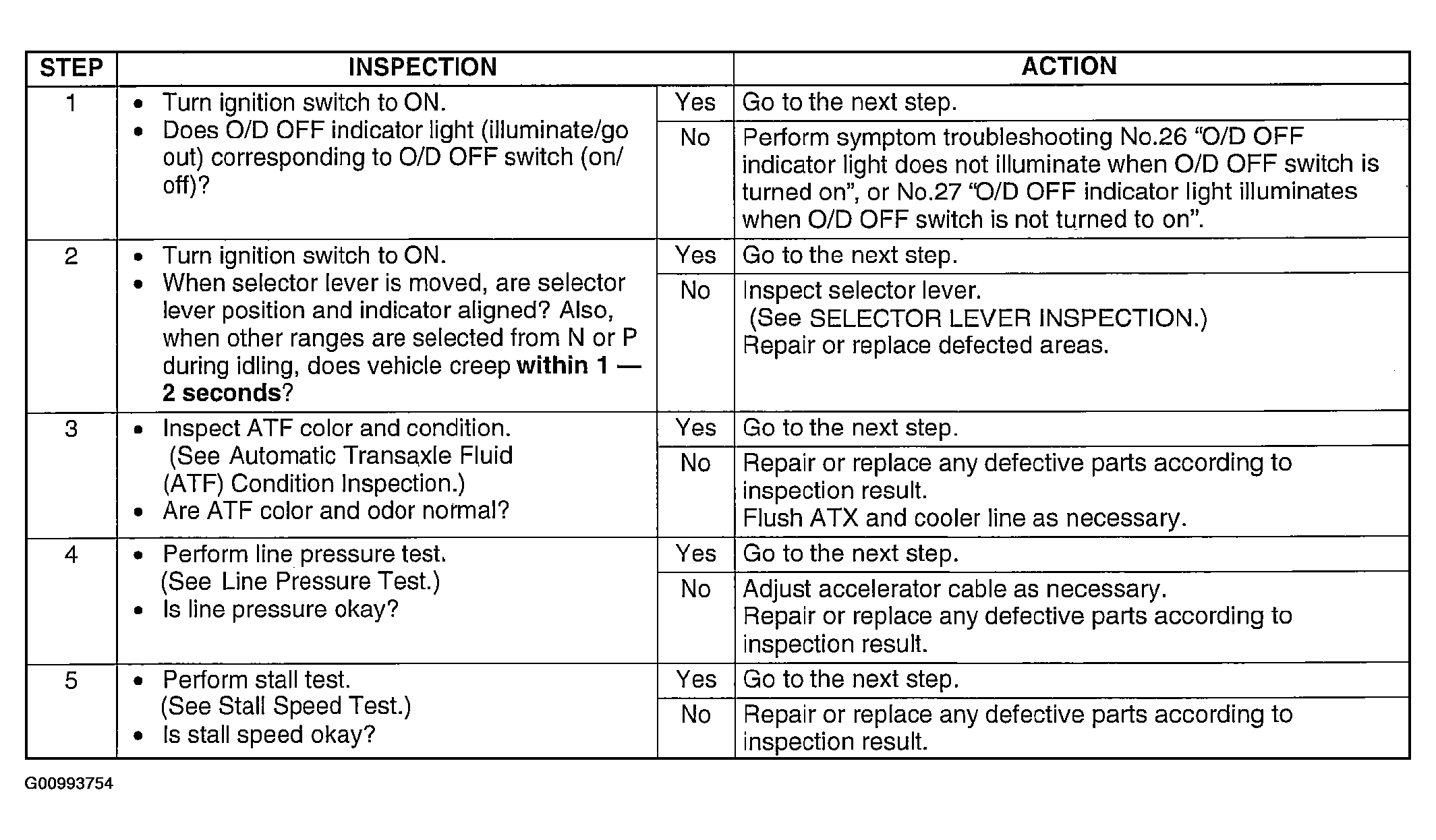

Fig 1: Automatic Transaxle Basic Inspection Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

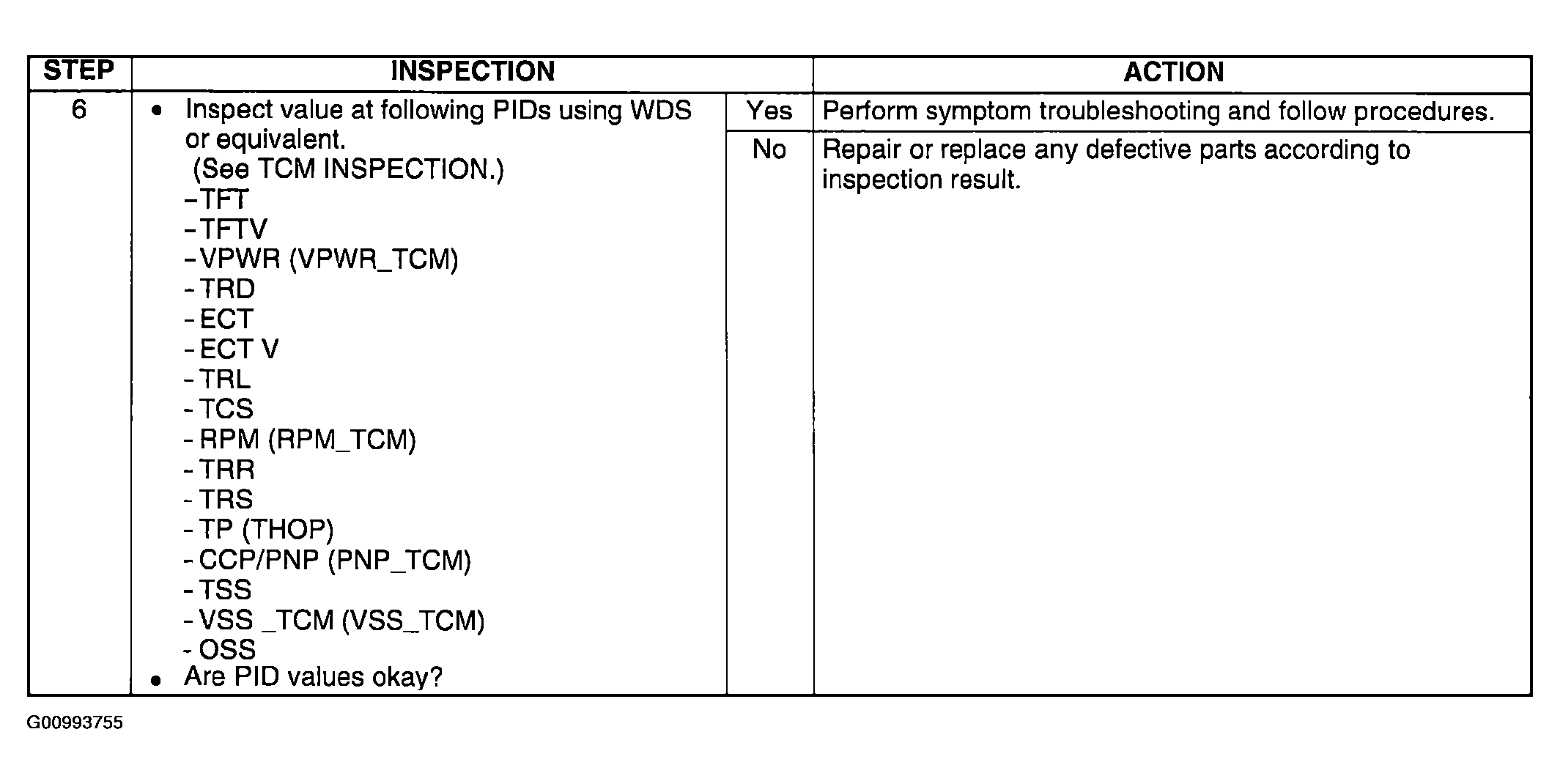

Fig 2: Automatic Transaxle Basic Inspection Table (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
