Clutch Master Cylinder Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in Fig 1 .

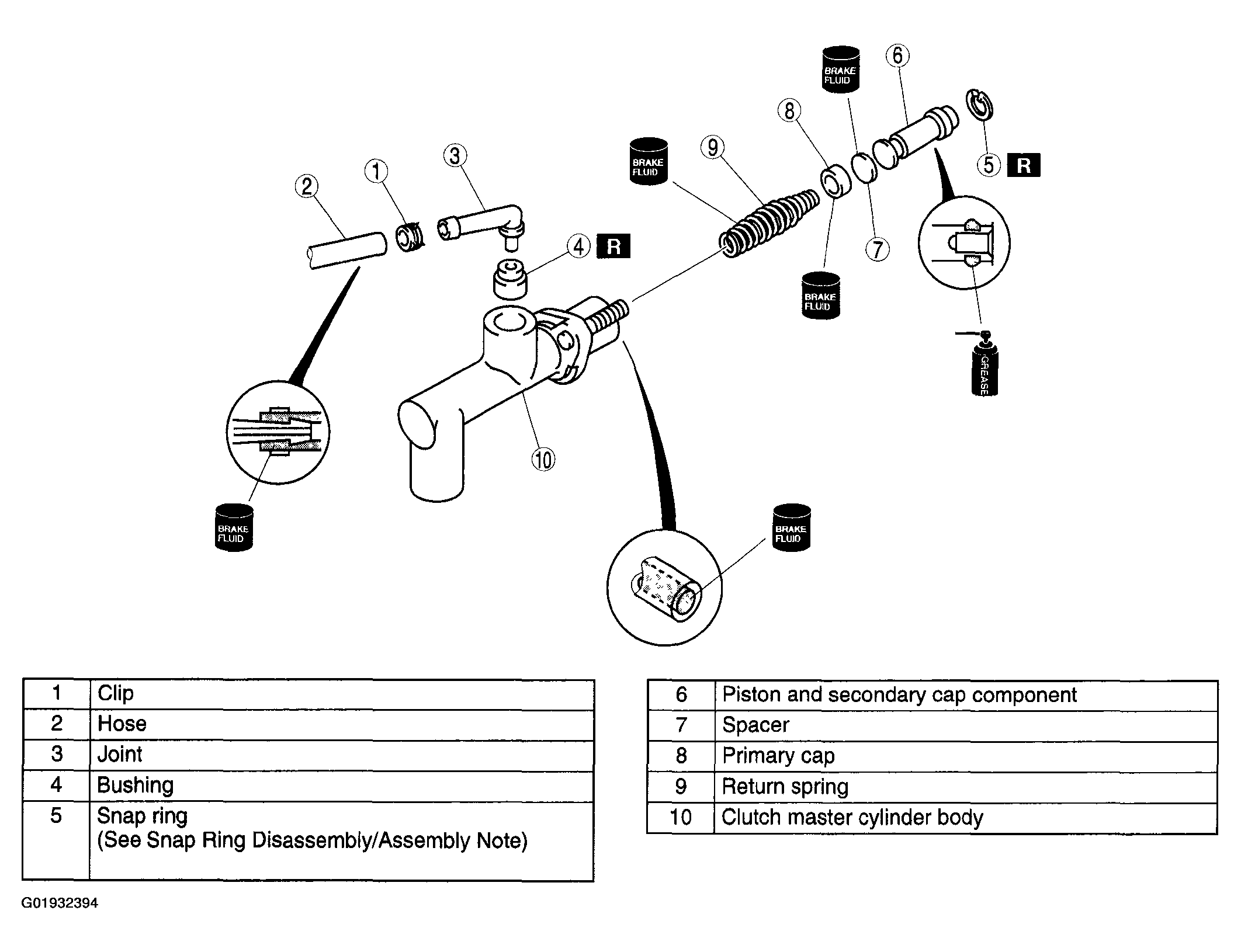

Fig 1: Exploded View Of Clutch Master Cylinder
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
