Clutch Pedal Removal/Installation: Notes
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery and battery tray.

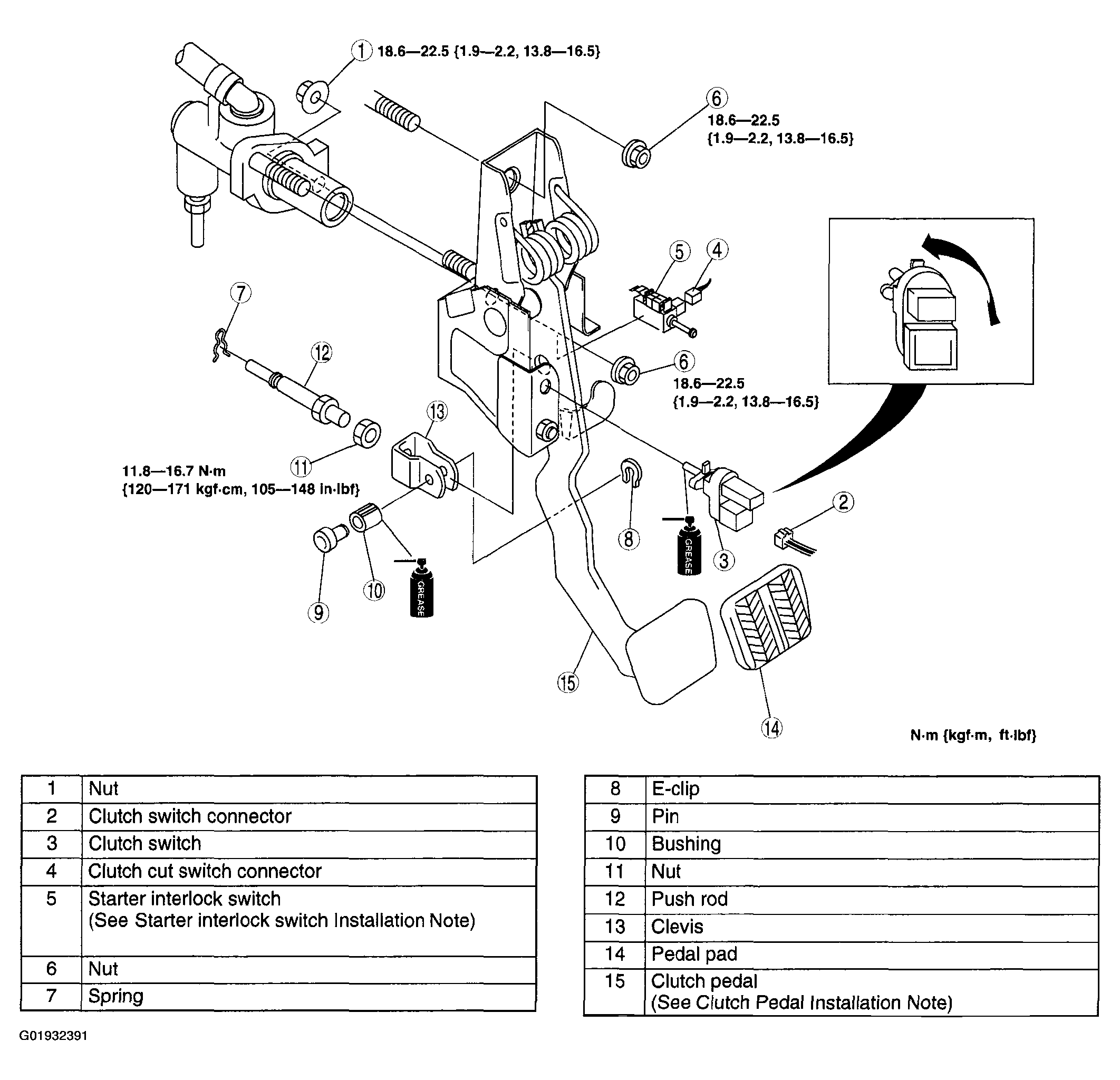

- Remove in the order indicated in Fig 1 .
- Install in the reverse order of removal.
- After installation, inspect the clutch pedal. (See CLUTCH PEDAL ADJUSTMENT .)
