G35M-R manual transaxle models

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SSTs.
  2. Tighten the bolts evenly and gradually in a crisscross pattern.
    1. Tightening torque 25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

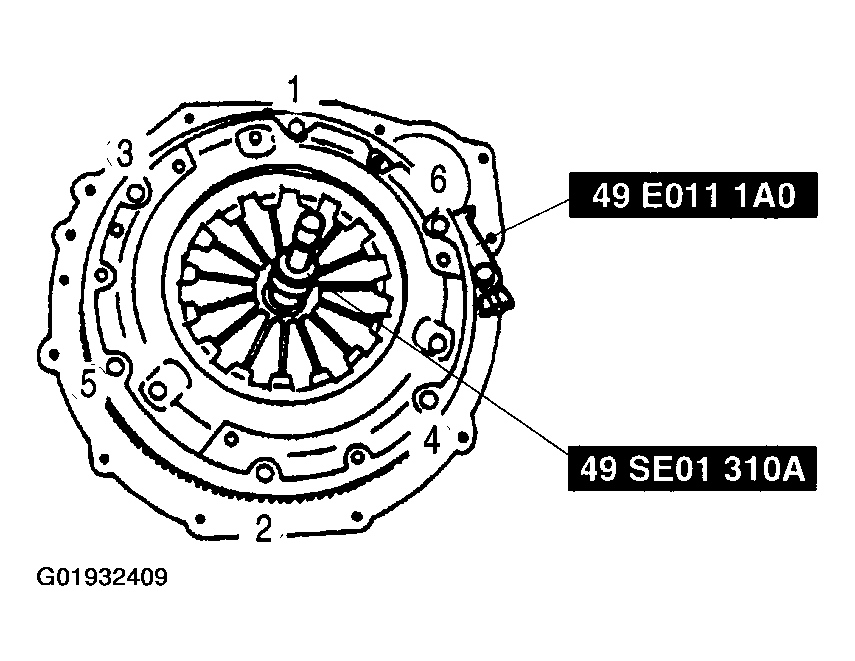

    Fig 1: Installing Clutch Cover (G35M-R)
    G01932409Courtesy of MAZDA MOTORS CORP.
