Monitor Item Table

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

The PID/DATA monitoring items for the instrument cluster is as shown in the figure below.

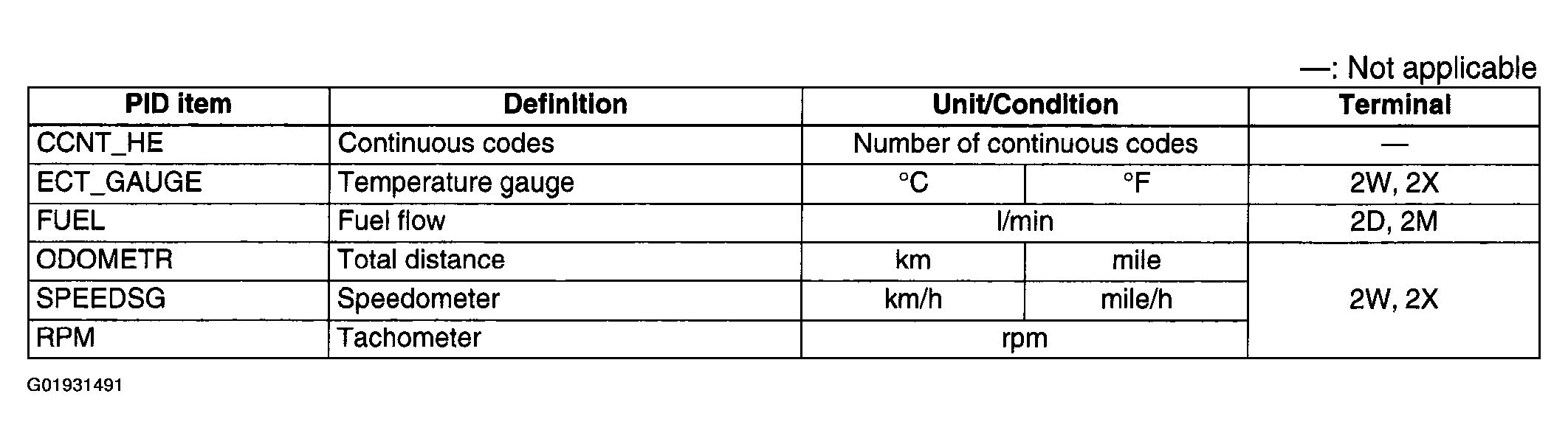

Fig 1: Instrument Cluster PID/DATA Item Monitoring Chart

Courtesy of MAZDA MOTORS CORP.
