Vacuum Schematic

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

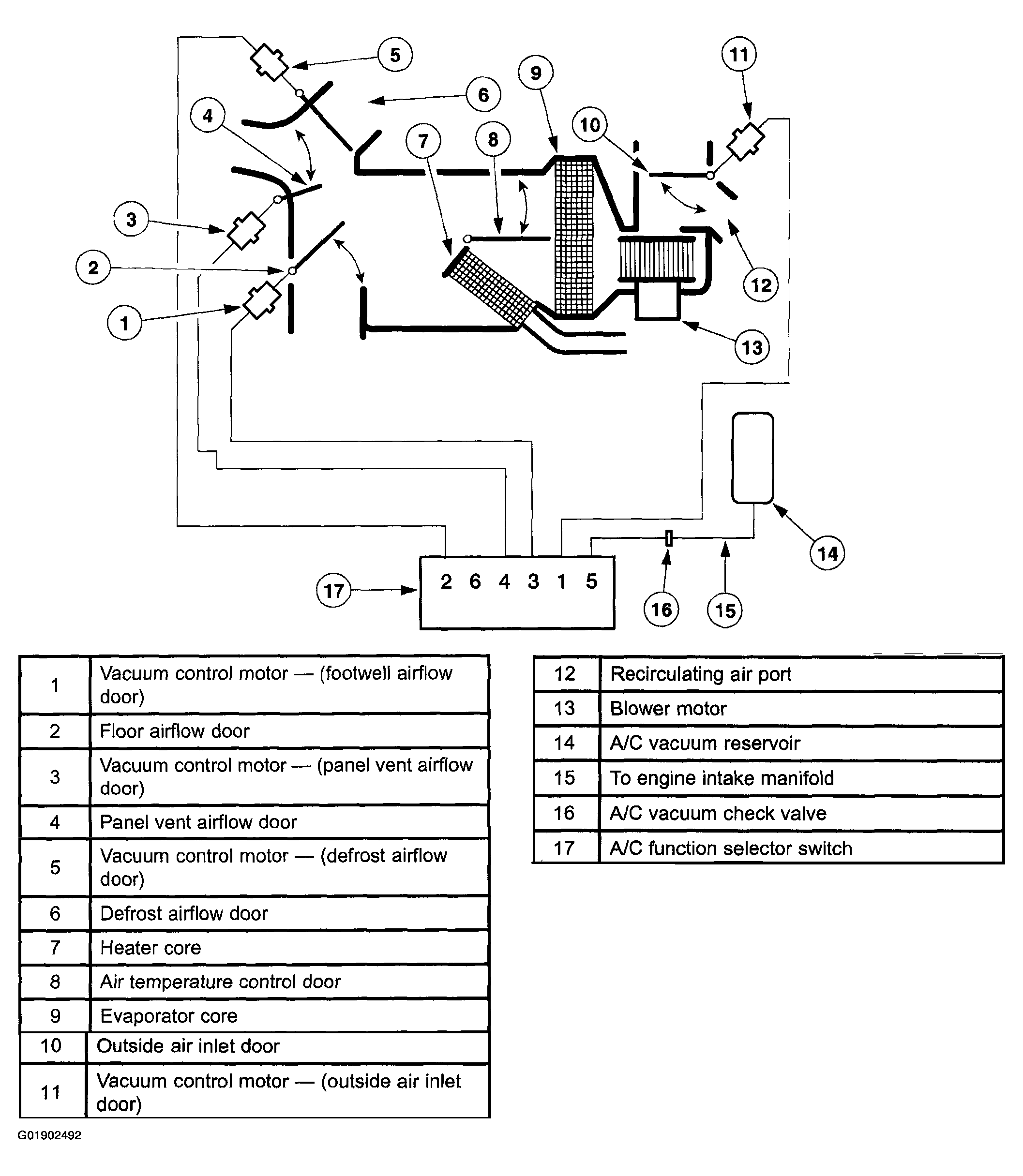

Fig 1: Vacuum Schematic & Component Description Chart

Courtesy of MAZDA MOTORS CORP.
