Rotary Blade Coupling Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

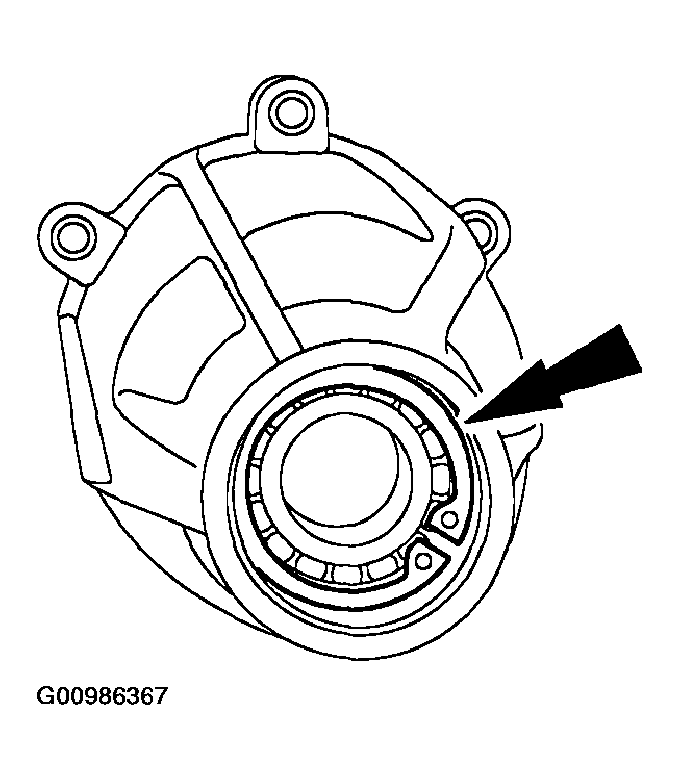

Fig 1: Identifying Bearing Housing

Courtesy of MAZDA MOTORS CORP.

Using a bearing driver and handle, install the bearing into the housing.

Fig 2: Locating Snap Ring
Courtesy of MAZDA MOTORS CORP.
Install the snap ring.

Fig 3: Installing Seal
Courtesy of MAZDA MOTORS CORP.
Using the special tool, install the seal.
- Make sure the seal flange is in contact with the housing.

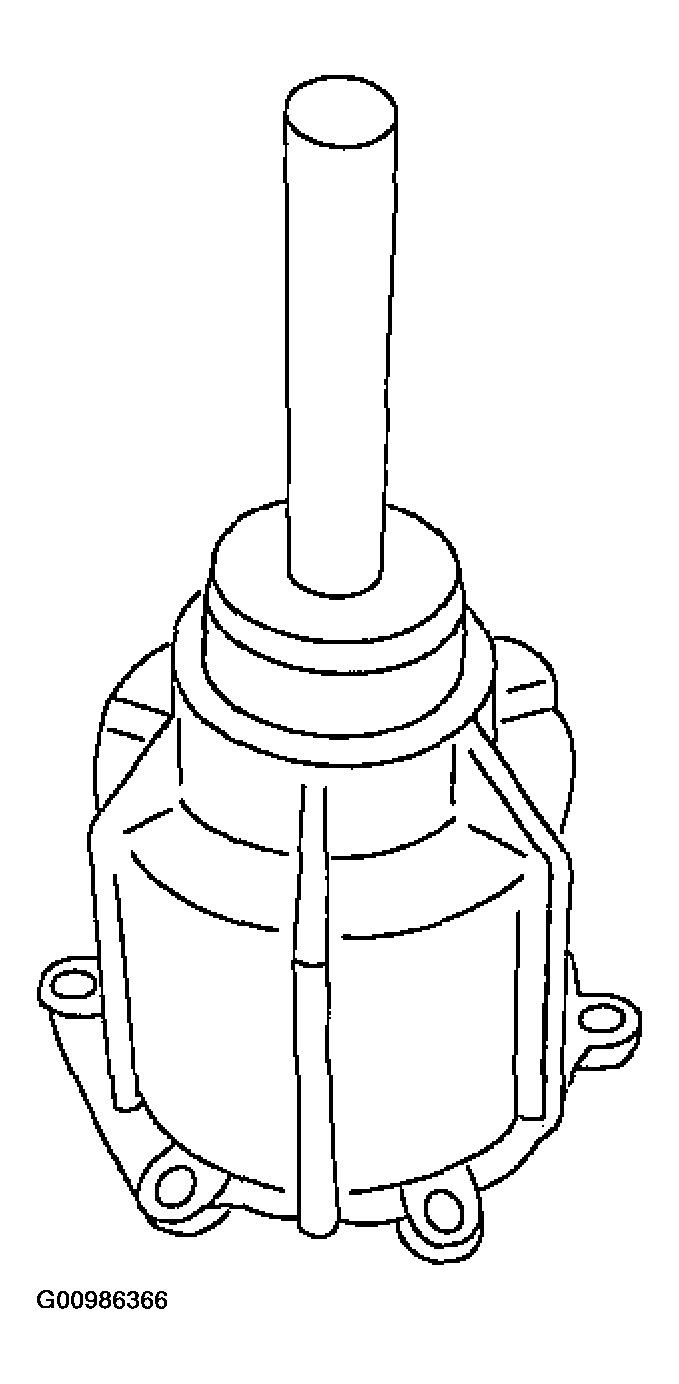

Fig 4: Locating Clutch Shaft And Four Bolts
Courtesy of MAZDA MOTORS CORP.
Install the clutch shaft and the four bolts.

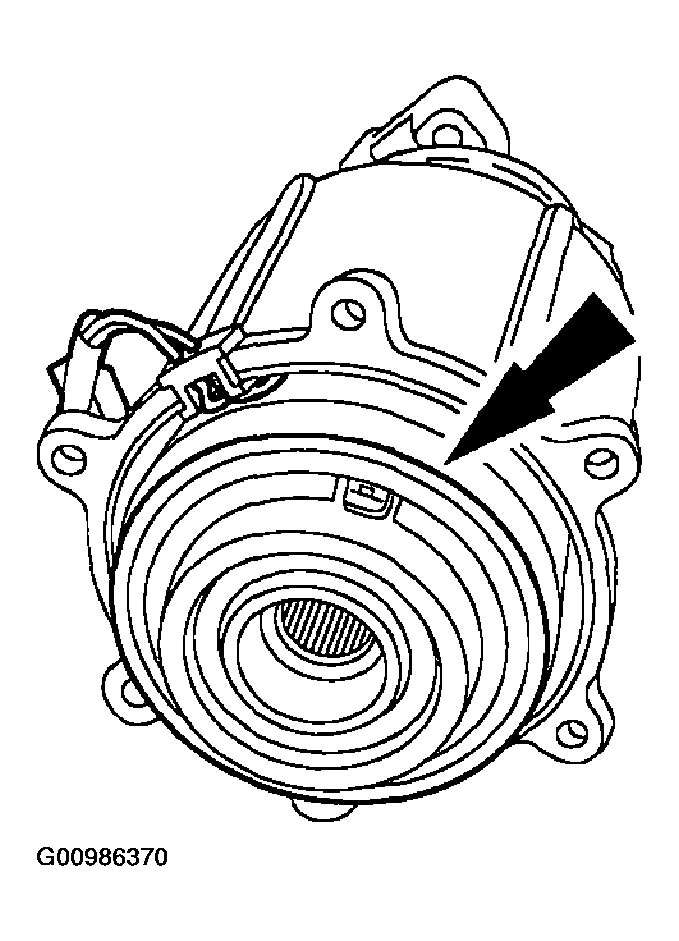

Fig 5: Locating Clutch Housing
Courtesy of MAZDA MOTORS CORP.
Install the clutch assembly into the housing.

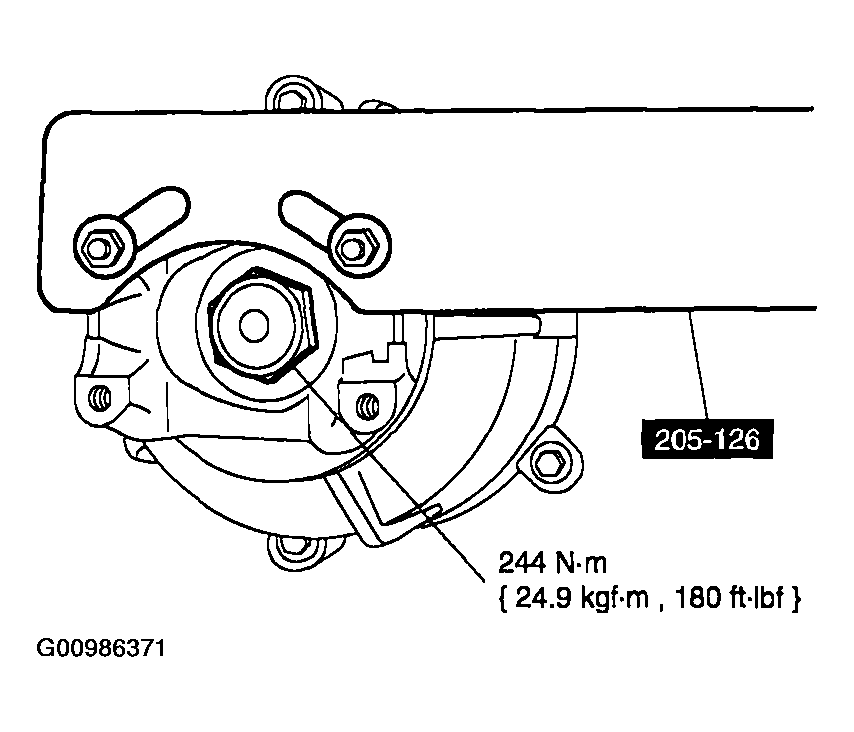

Fig 6: Installing Special Tool And Nut
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Make sure the marks are aligned on the pinion gear and yoke.
Install the yoke and nut.
- Use the special tool to hold the yoke while tightening the nut.
