Dashboard Disassembly/Assembly
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the passenger-side air bag module.
- Remove the ventilator grilles.
- Remove the audio unit.
- Remove the climate control unit.

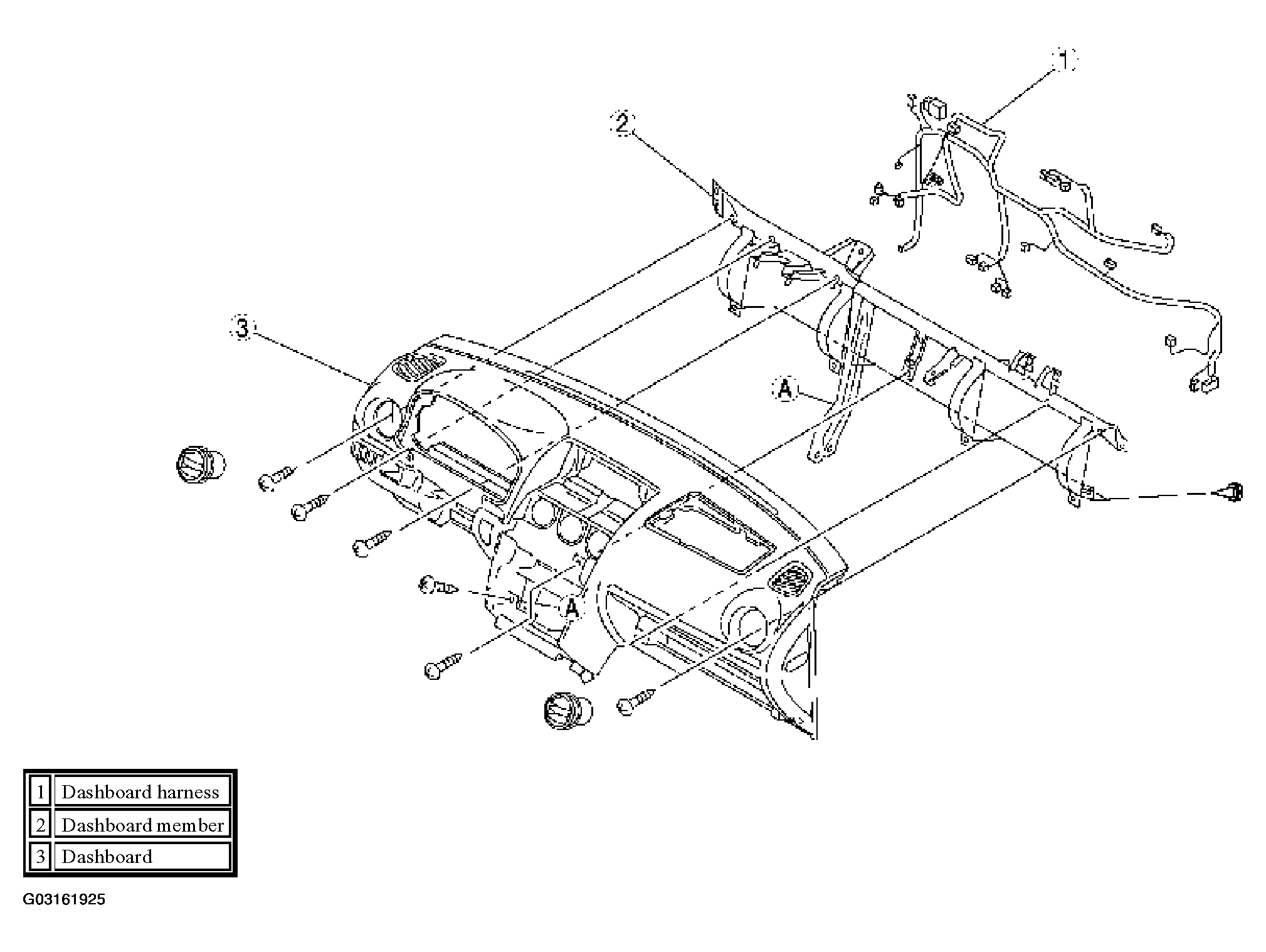

- Disassemble in the order indicated in the figure.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
