Front Scuff Plate Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

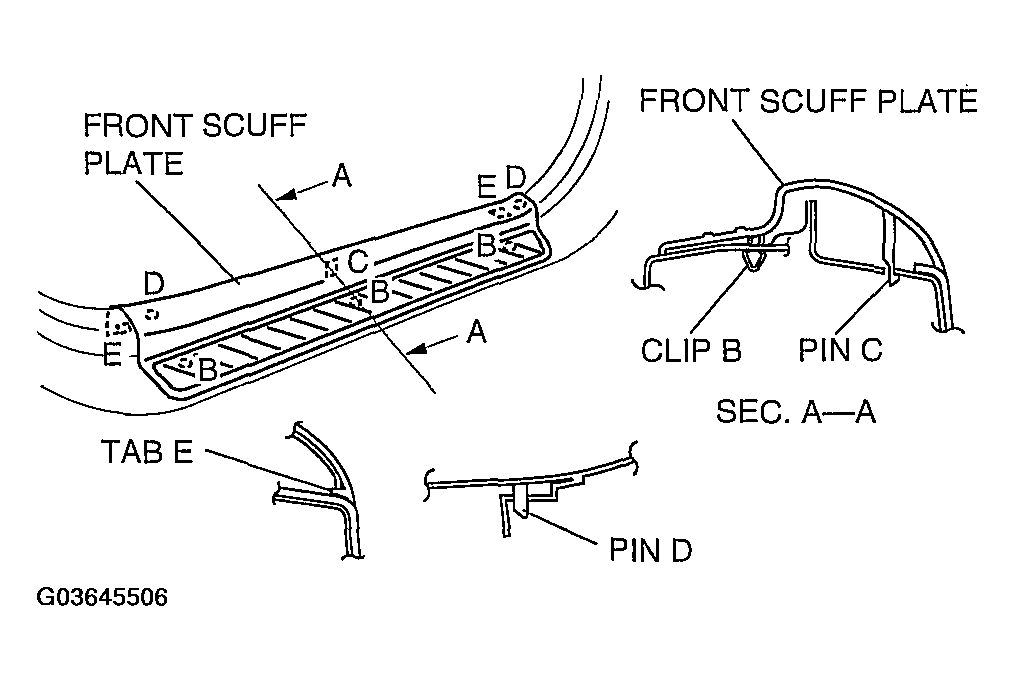

- Pull the front scuff plate upward, disengage clips B, pins C, D and tabs E from the body, and remove the front scuff plate.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
