Driver-Side Air Bag Module Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See SERVICE WARNINGS .) (See SERVICE CAUTIONS .)
- Turn the ignition switch to the LOCK position.
- Disconnect the negative battery cable and wait for 1 min or more.

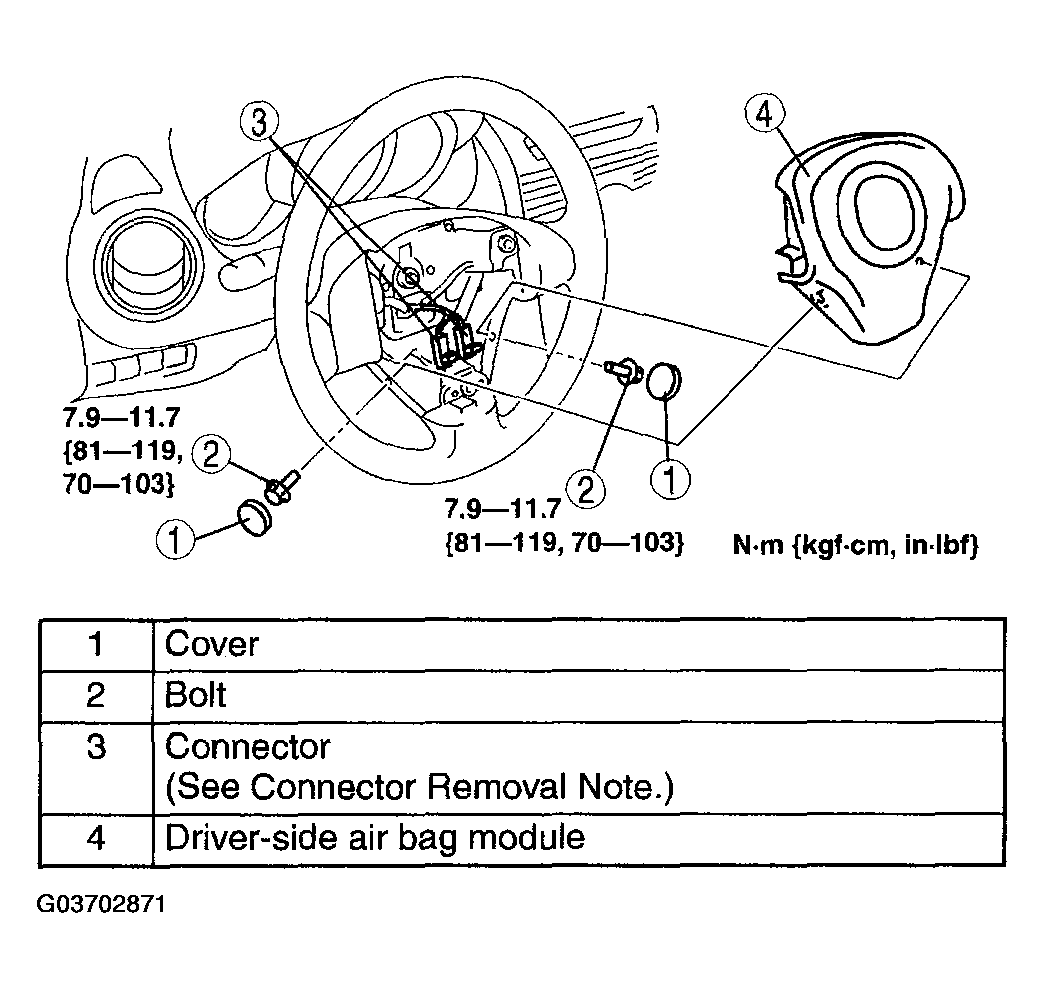

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Turn the ignition switch to the ON position.
- Verify that the air bag system warning light illuminates for approx. 6 s
and goes out.
- If the air bag system warning light does not operate normally, refer to the ON-BOARD DIAGNOSTIC and perform inspection of the system.
