Blower Unit Disassembly/Assembly

Disassemble in the order indicated in the figure below.

Fig 1: Blower Unit Component Table
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.

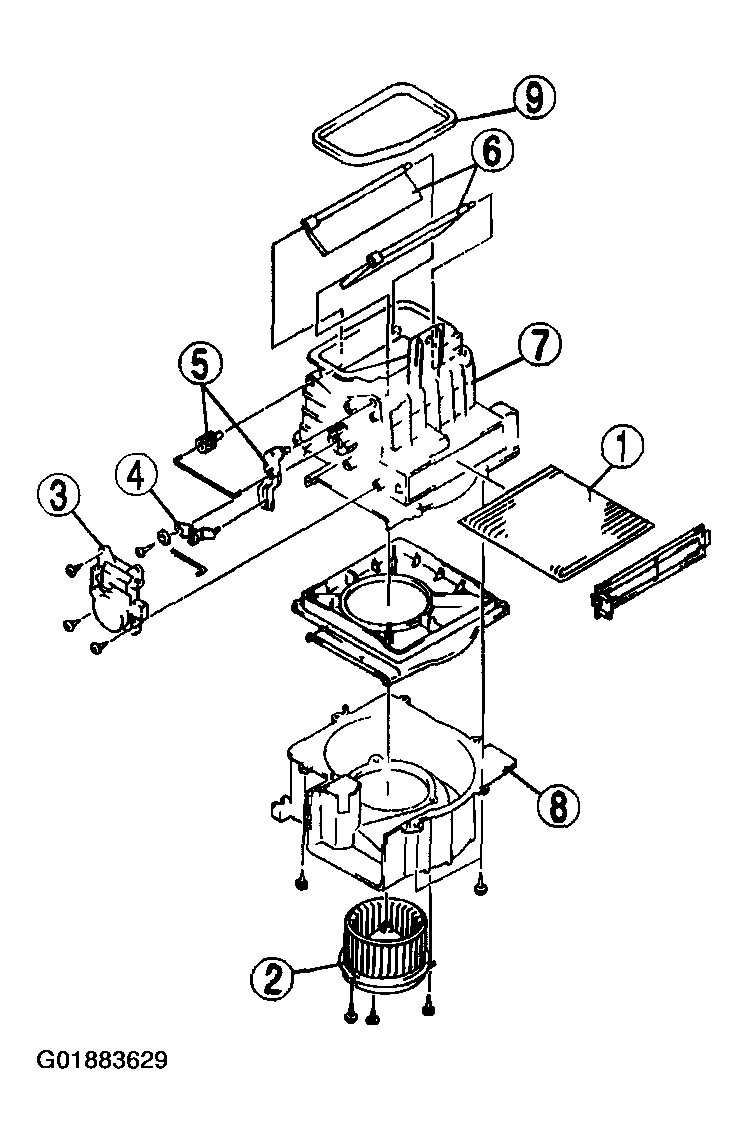

Fig 2: Exploded View Of Blower Unit
Courtesy of MAZDA MOTORS CORP.
