Suspension Technical Data

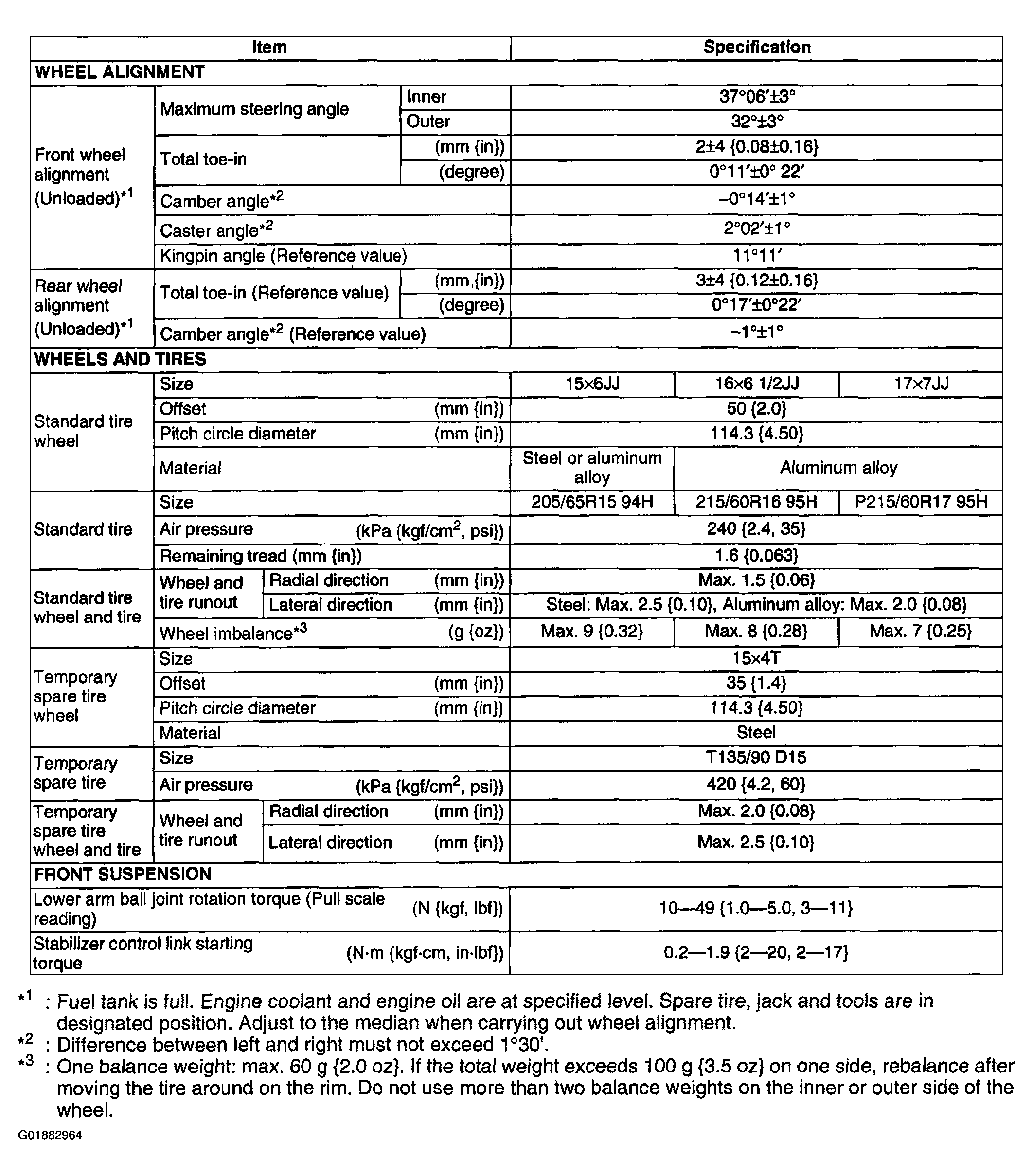

Fig 1: Suspension Technical Specification Chart
G01882964Courtesy of MAZDA MOTORS CORP.
