Automatic Transaxle Location Index

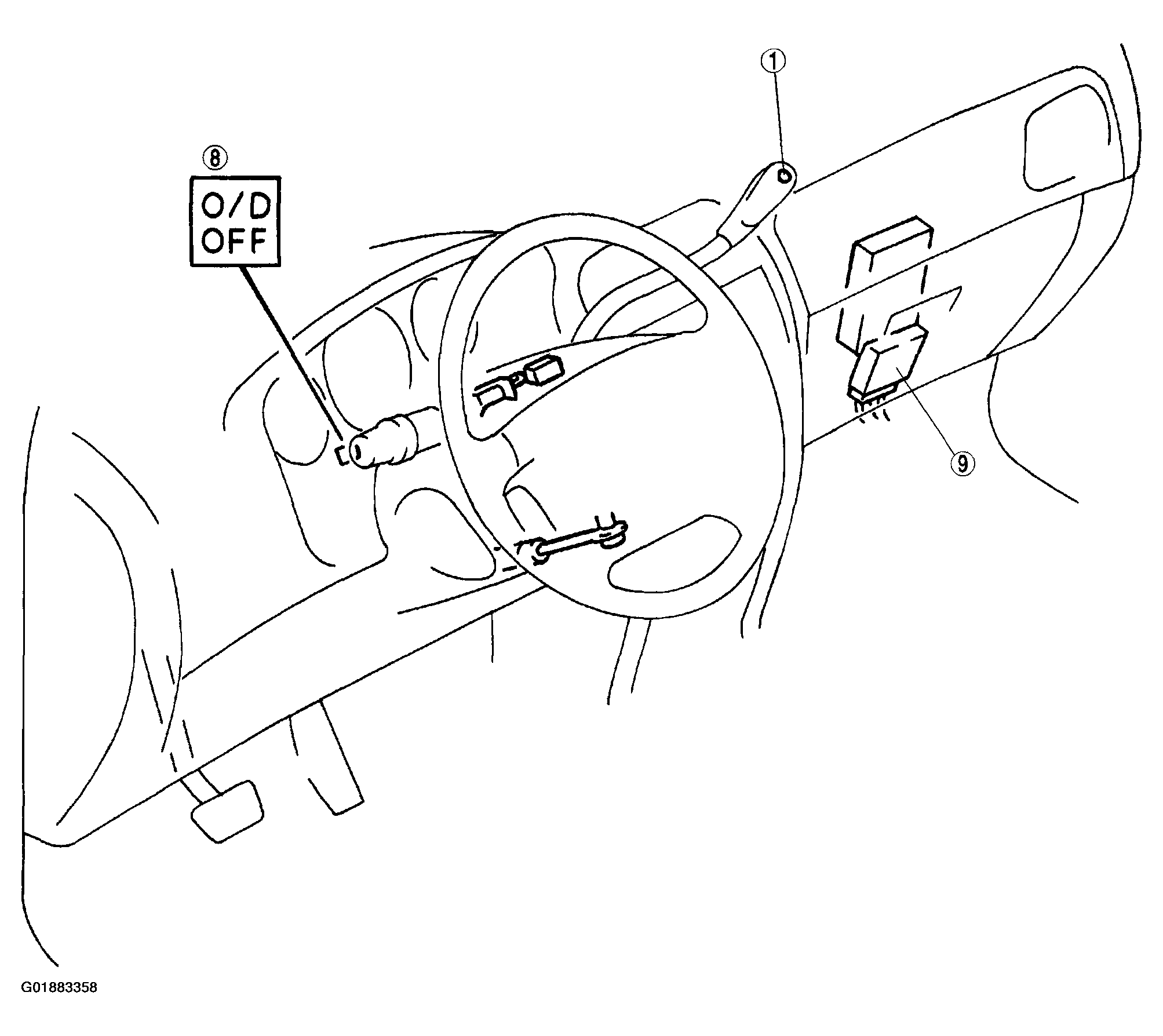

Fig 1: Automatic Transaxle Component Location (1 Of 2)
G01883358Courtesy of MAZDA MOTORS CORP.

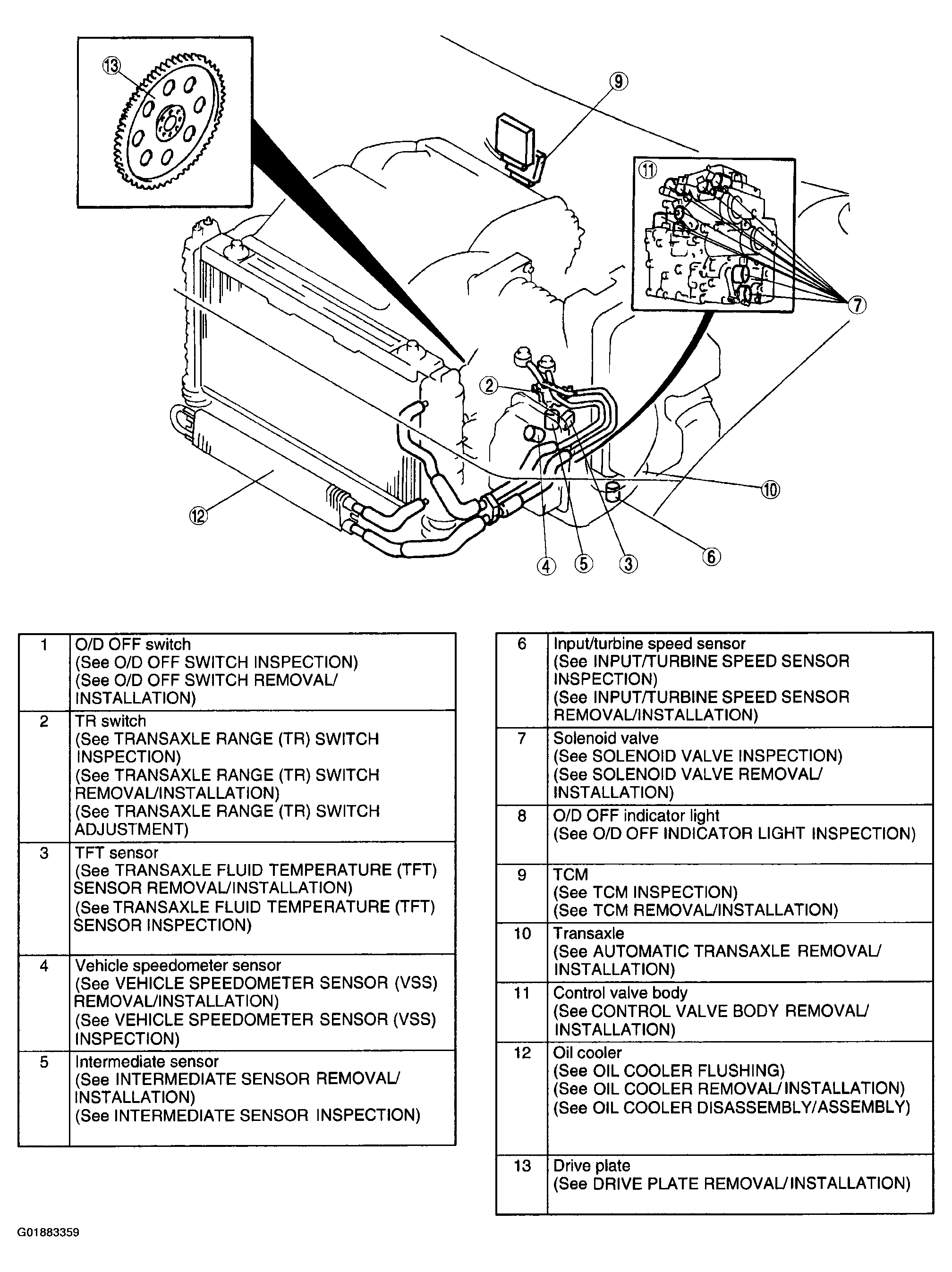

Fig 2: Automatic Transaxle Component Location (2 Of 2)
G01883359Courtesy of MAZDA MOTORS CORP.
