Drive Plate Mounting Bolts Installation Note

  1. Set the SST  or equivalent against the drive plate.
  2. Tighten the drive plate mounting bolts in two or three steps in the order shown in Fig 1 .

    Tightening torque

    73-87 N.m {7.4-8.9 kgf.m, 54-64 ft.lbf}

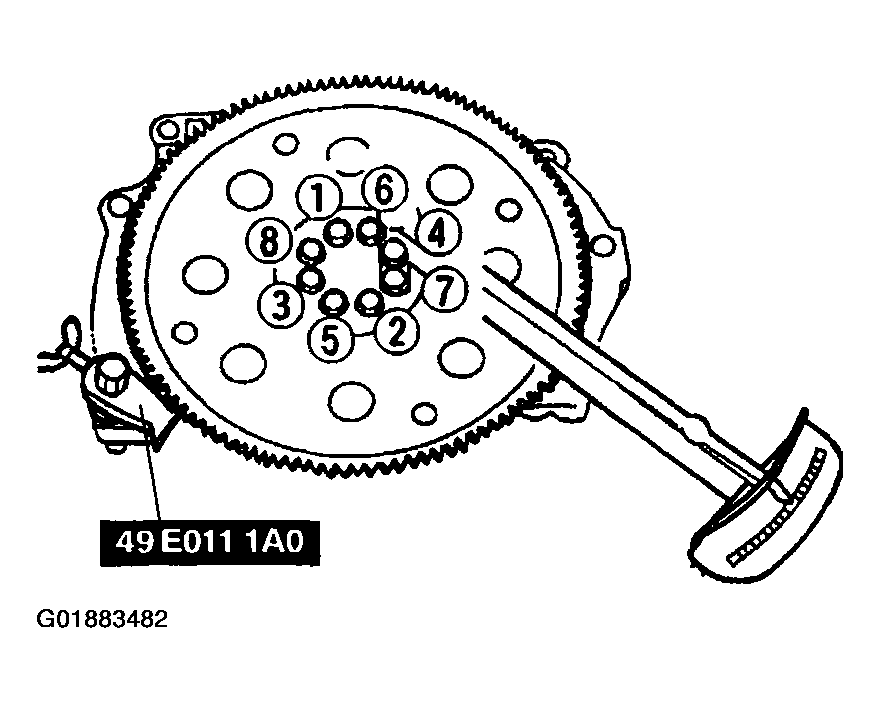

    Fig 1: Securing Drive Plate Using SST & Tightening Bolts
    G01883482Courtesy of MAZDA MOTORS CORP.
