Component Description (Electronic Control)

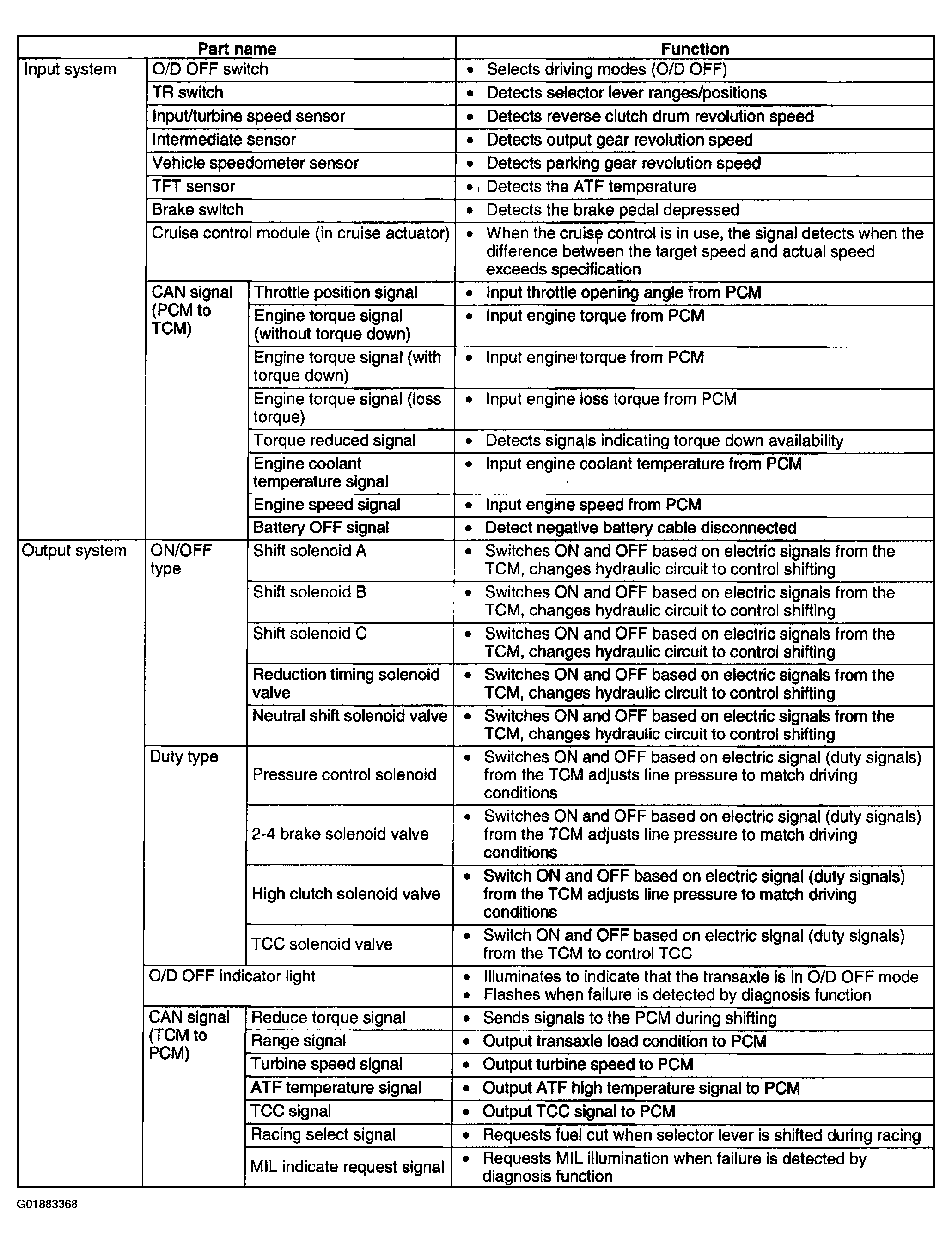

Fig 1: Electronic Control Component Description Chart
G01883368Courtesy of MAZDA MOTORS CORP.
