Oil Cooler Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in Fig 1 .

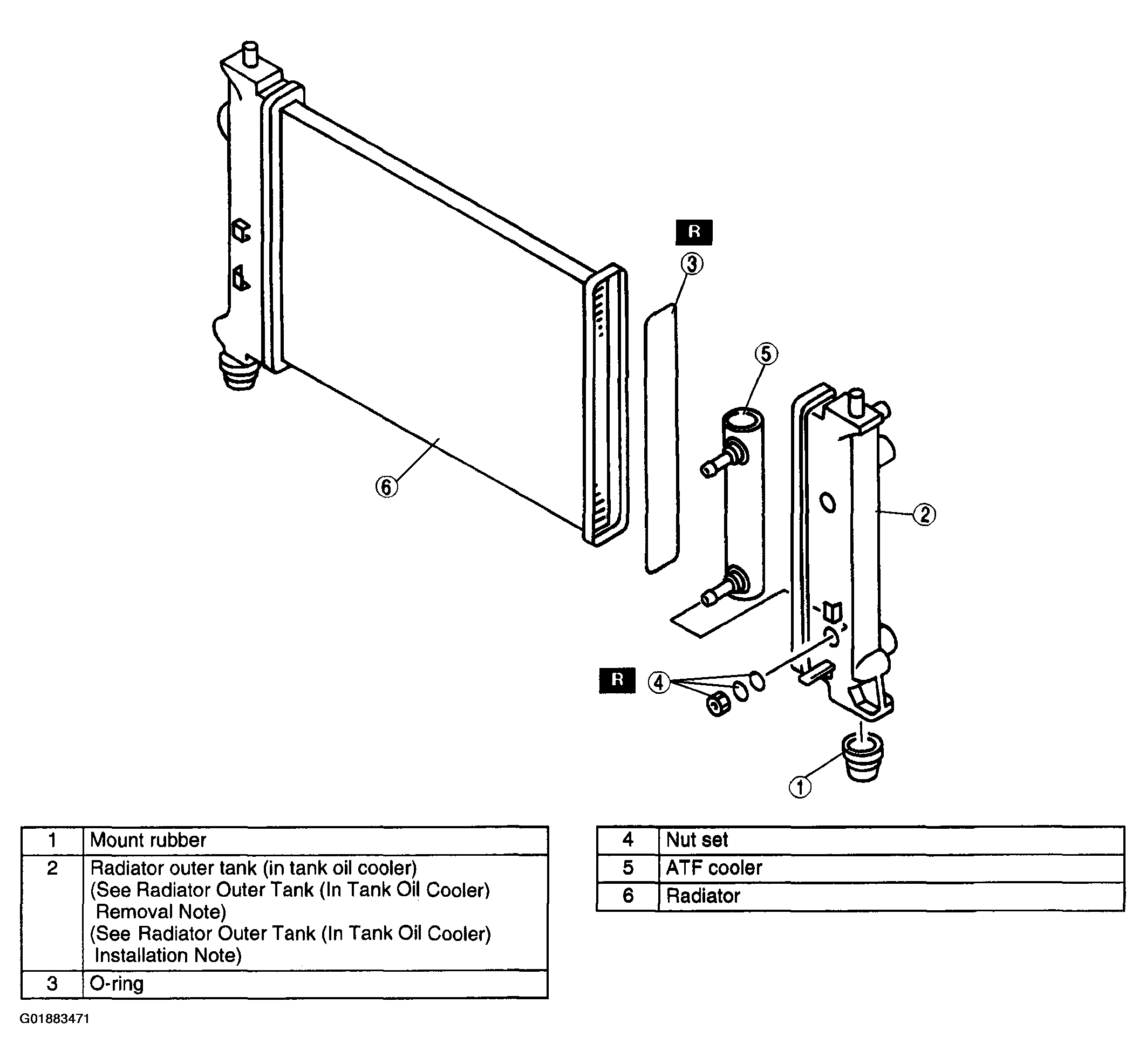

    Fig 1: Disassembling Oil Cooler
    G01883471Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
