Oil Cooler Flushing
›
Power Flushing
›
Forward flushing
Forward flushing
Connect power flushing equipment so the flushing fluid flows in the direction of normal fluid flow.
Flush oil cooler/lines until discharge fluid is clean.

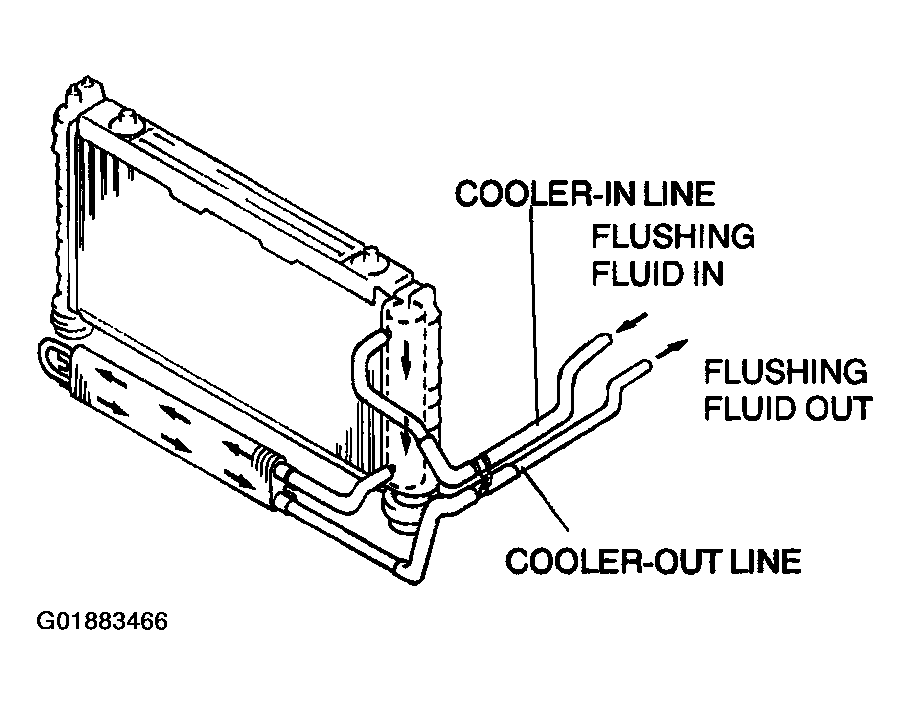

Fig 1: Forward Flushing Oil Cooler/Lines
Courtesy of MAZDA MOTORS CORP.
