Control Valve Component Description

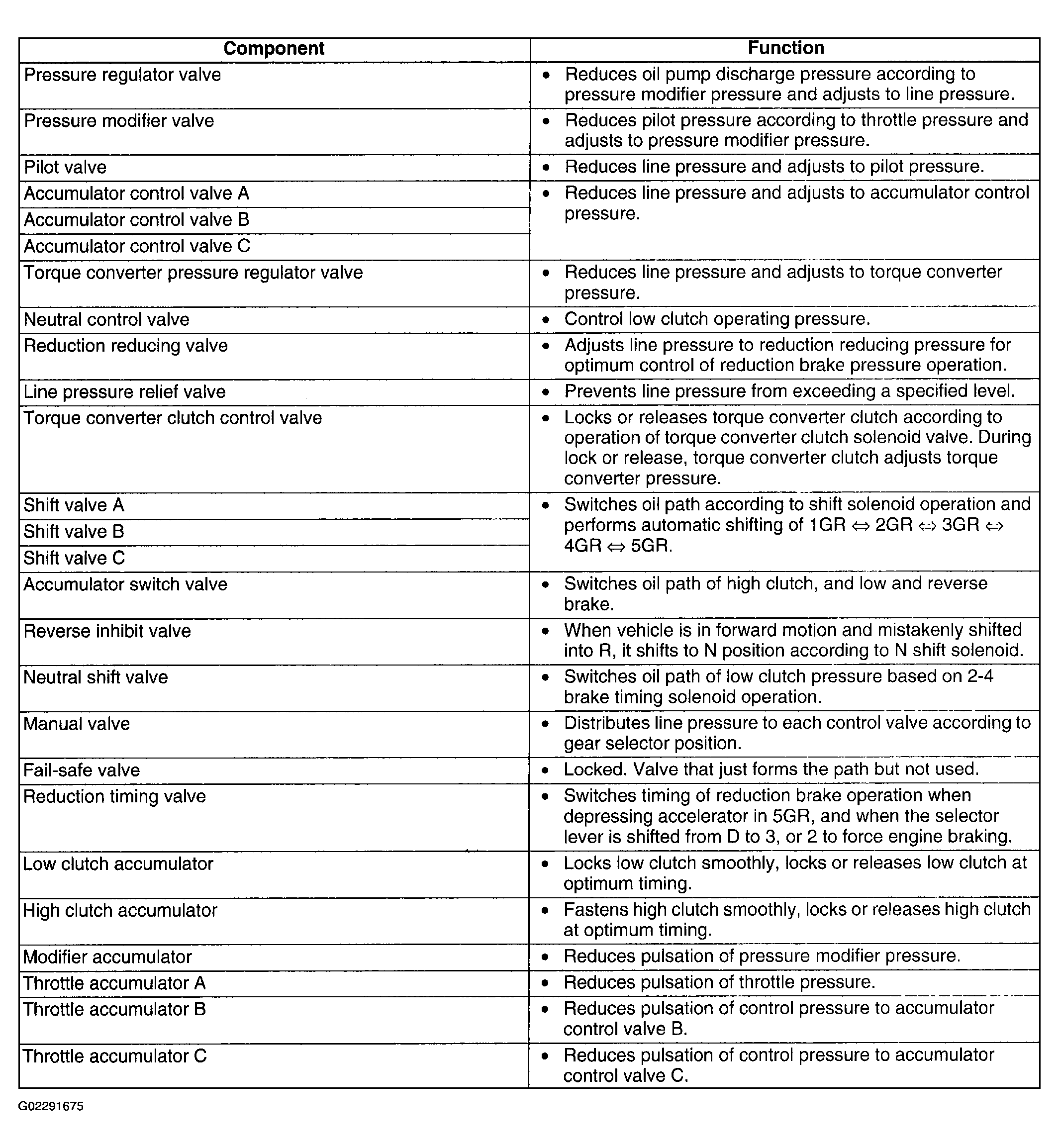

Fig 1: Control Valve Component Description & Function Table
G02291675Courtesy of MAZDA MOTORS CORP.
