Parking Mechanism Disassembly/Assembly: Notes

Disassemble in the order indicated in the figure.

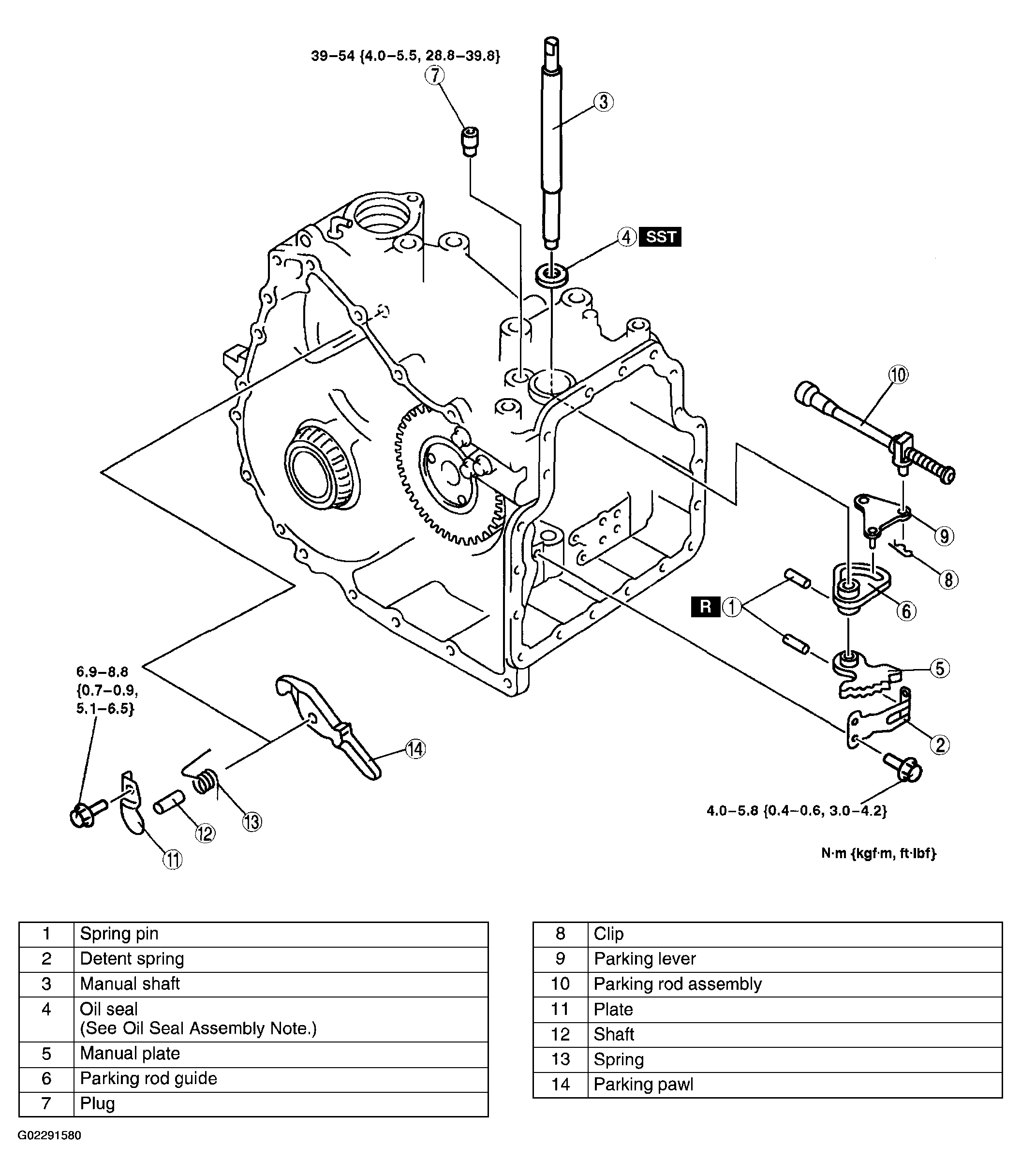

Fig 1: Disassembling/Assembling Parking Mechanism
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
