| Anchor End Bolt |
47-69 (64-94) |
| Converter Housing Bolt |
20-22 (27-30) |
| End Cover Bolt |
14-16 (19-22) |
| Oil Pump Component Bolt |
14-16 (19-22) |
| Oil Strainer Bolt |
14-16 (19-22) |
| One-Way Clutch Inner Race Bolt |
23.9-28.2 (32.4-38.3) |
| Piston Stem Locknut |
40-51 (39-50) |
| INCH Lbs. (N.m) |
| Control Valve Body Bolts |
5.1-6.5 (6.9-8.8) |
| Control Valve Body Solenoid Bolts |
74-91 (8.34-10.3) |
| Control Valve Body Cover Bolt |
5.1-6.5 (6.9-8.8) |
| Intermediate Sensor Bolt |
5.1-7.9 (6.9-7.9) |
| Oil Pipe Bolt |
3.6-5.1 (4.9-6.9) |

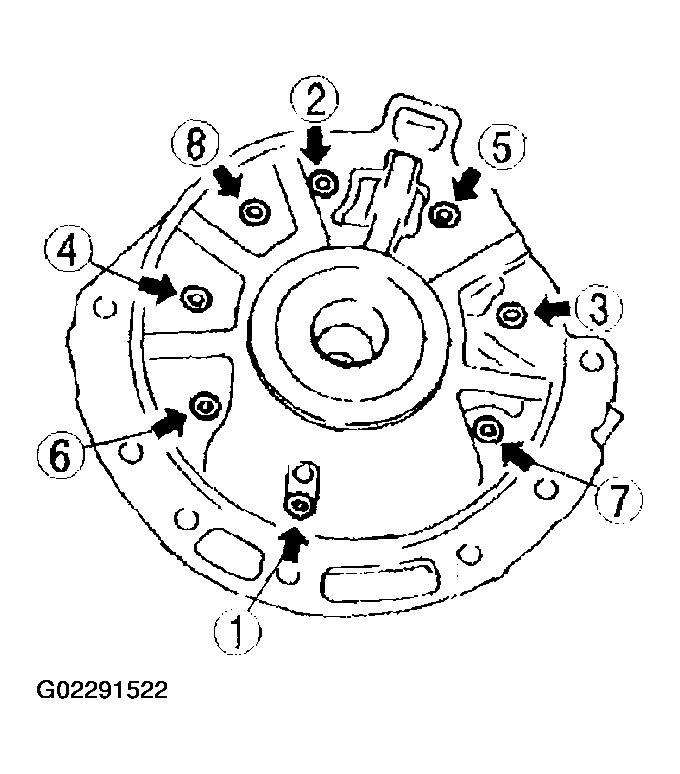

| Oil Pump Housing Bolt |
5.1-7.9 (6.9-7.9) |
| Transaxle Fluid Temperature Sensor Bolt |
5.1-7.9 (6.9-7.9) |
| TR Switch Bolt |
43.4-61.1 (4.9-6.9) |
| Turbine Speed Sensor Bolt |
5.1-6.5 (6.9-8.8) |
| Vehicle Speedometer Sensor Bolt |
5.1-6.5 (6.9-8.8) |
| Vehicle Speedometer Sensor Harness Bracket Bolt |
5.1-6.5 (6.9-8.8) |
