Transmission/Transaxle Technical Data

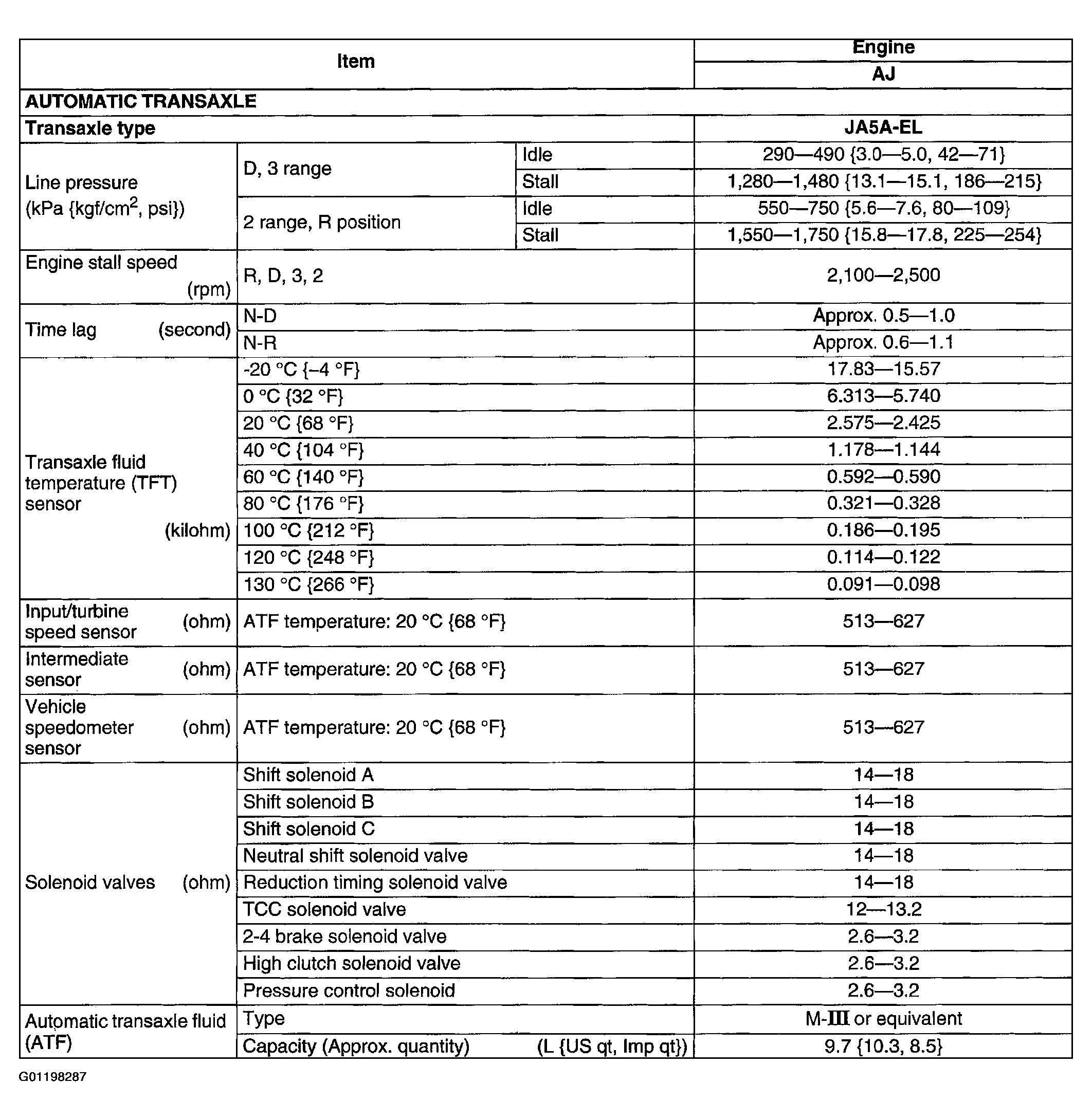

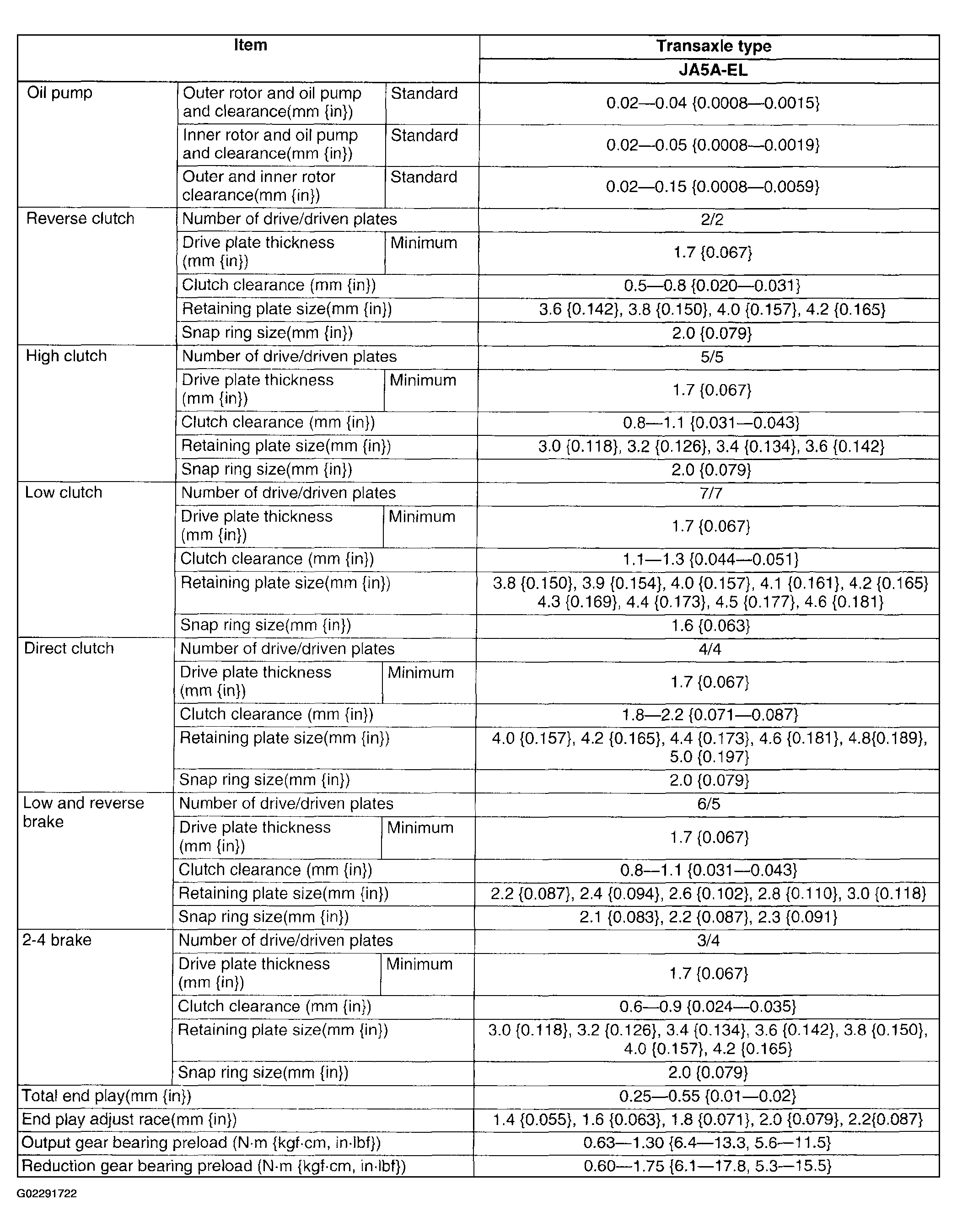

Fig 1: Transmission/Transaxle Specifications

Courtesy of MAZDA MOTORS CORP.

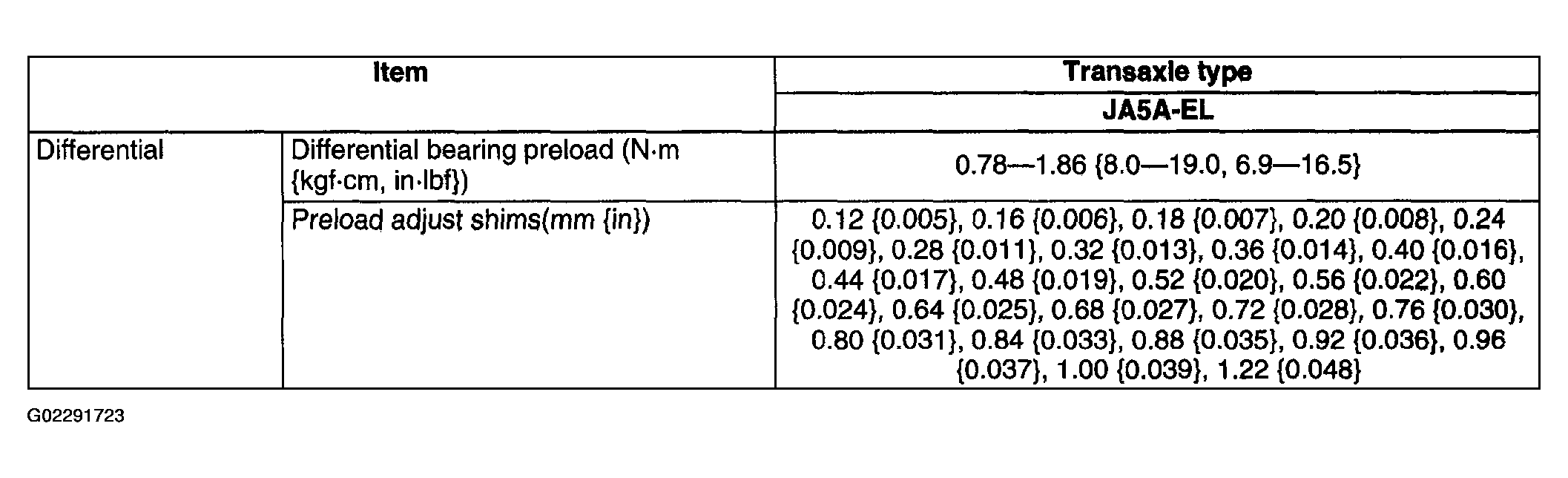

Fig 2: Transmission/Transaxle - Differential Specifications

Courtesy of MAZDA MOTORS CORP.

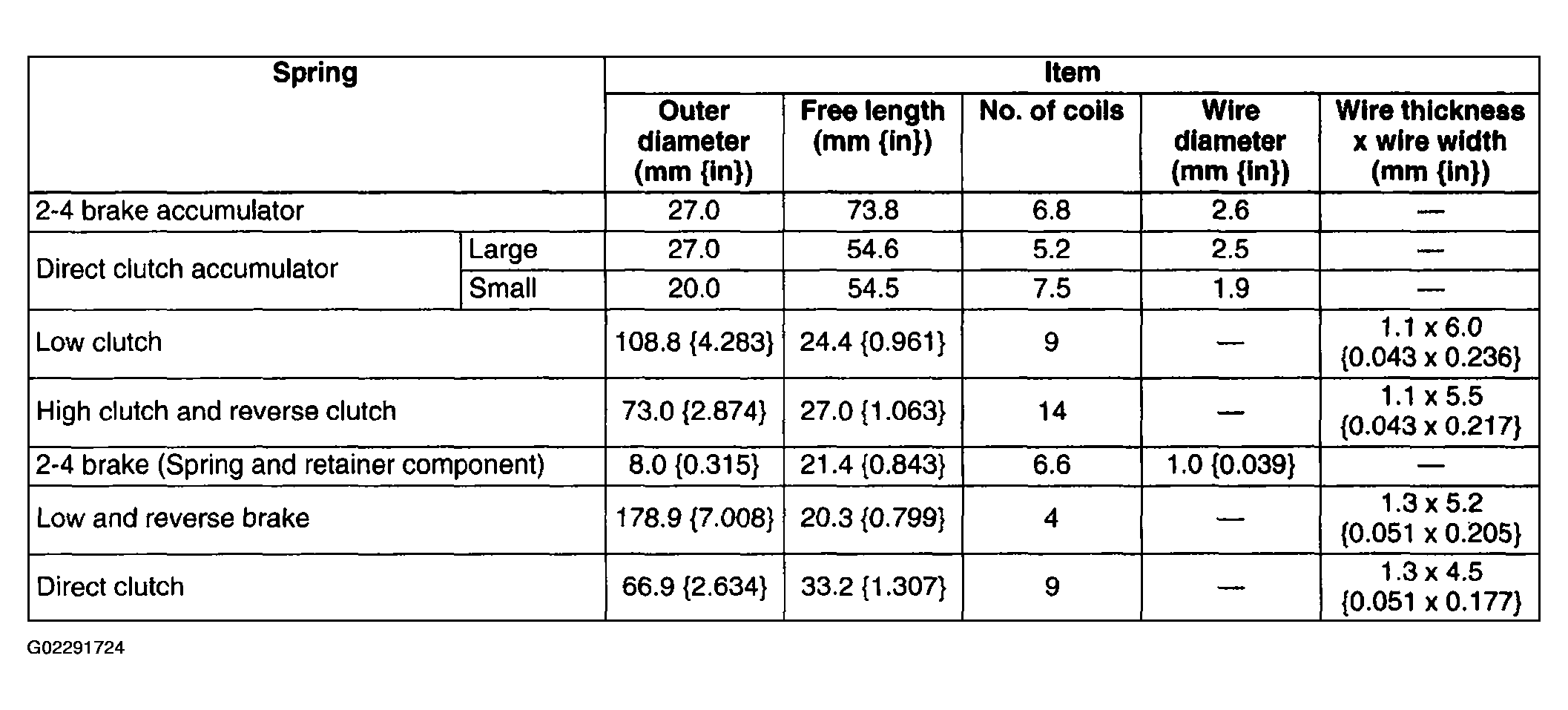

Fig 3: Transmission/Transaxle - Spring Specifications

Courtesy of MAZDA MOTORS CORP.

Fig 4: Technical Data (2002-03 Models)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Technical Data (2004 Models)

Courtesy of MAZDA MOTORS CORP.
