Symptom Troubleshooting - Automatic Transaxle
›
Automatic Transaxle Basic Inspection
Automatic Transaxle Basic Inspection

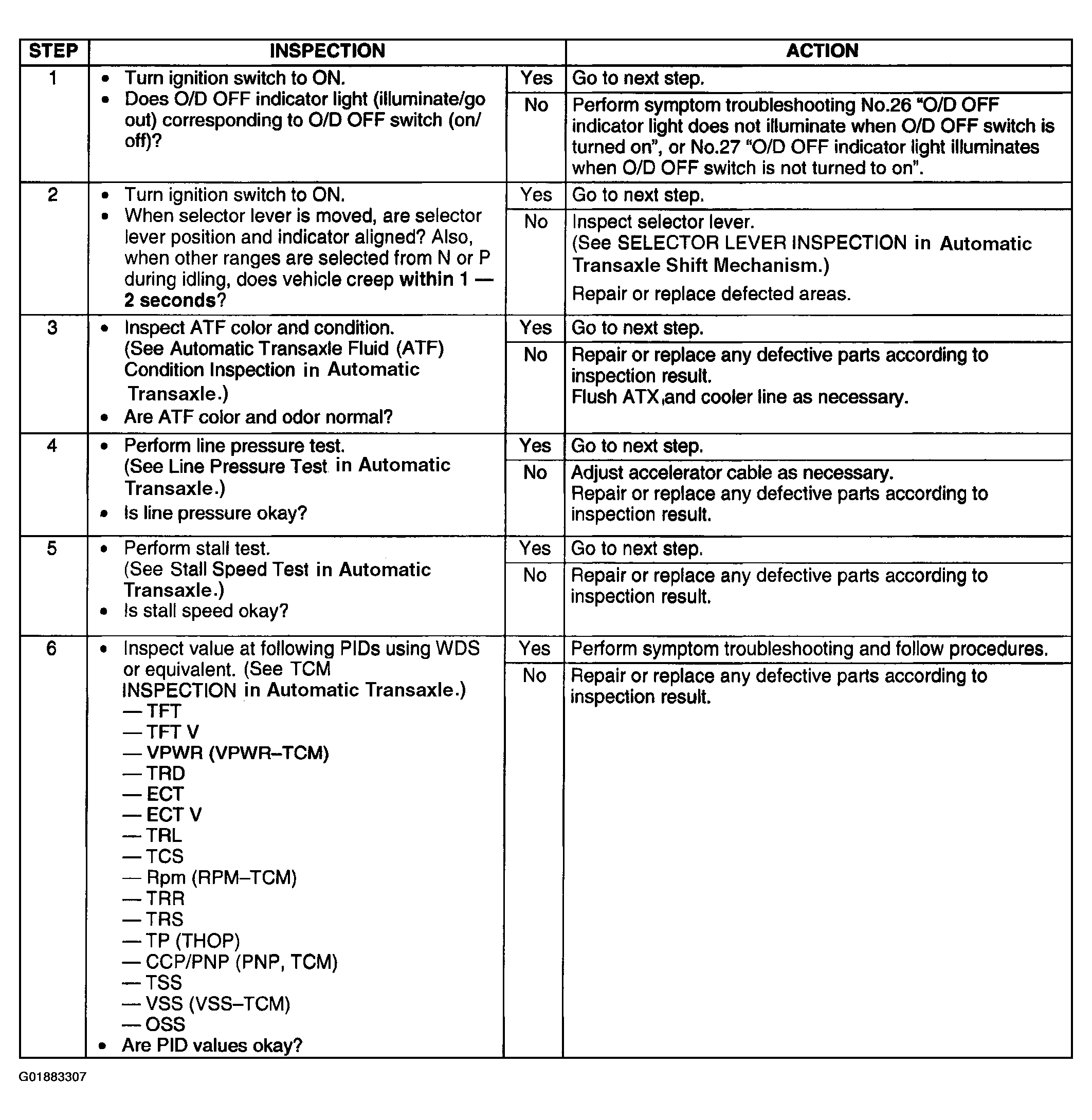

Fig 1: Automatic Transaxle Basic Inspection Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
