Symptom Troubleshooting - Automatic Transaxle
›
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram

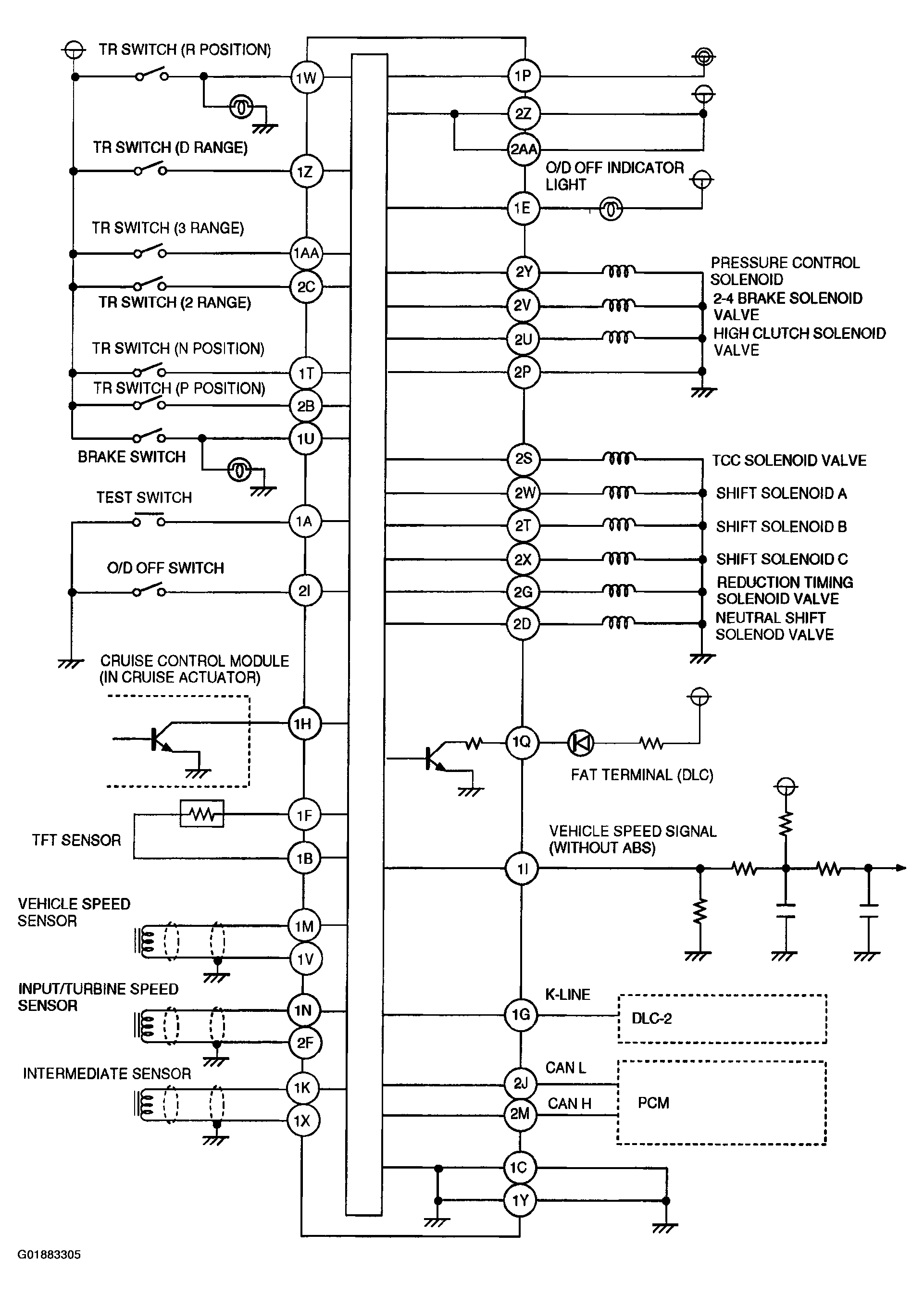

Fig 1: Wiring Diagram - Automatic Transaxle Control System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
