Diagnostic Index

Use the chart below to verify the symptoms of the trouble in order to diagnose the appropriate area.

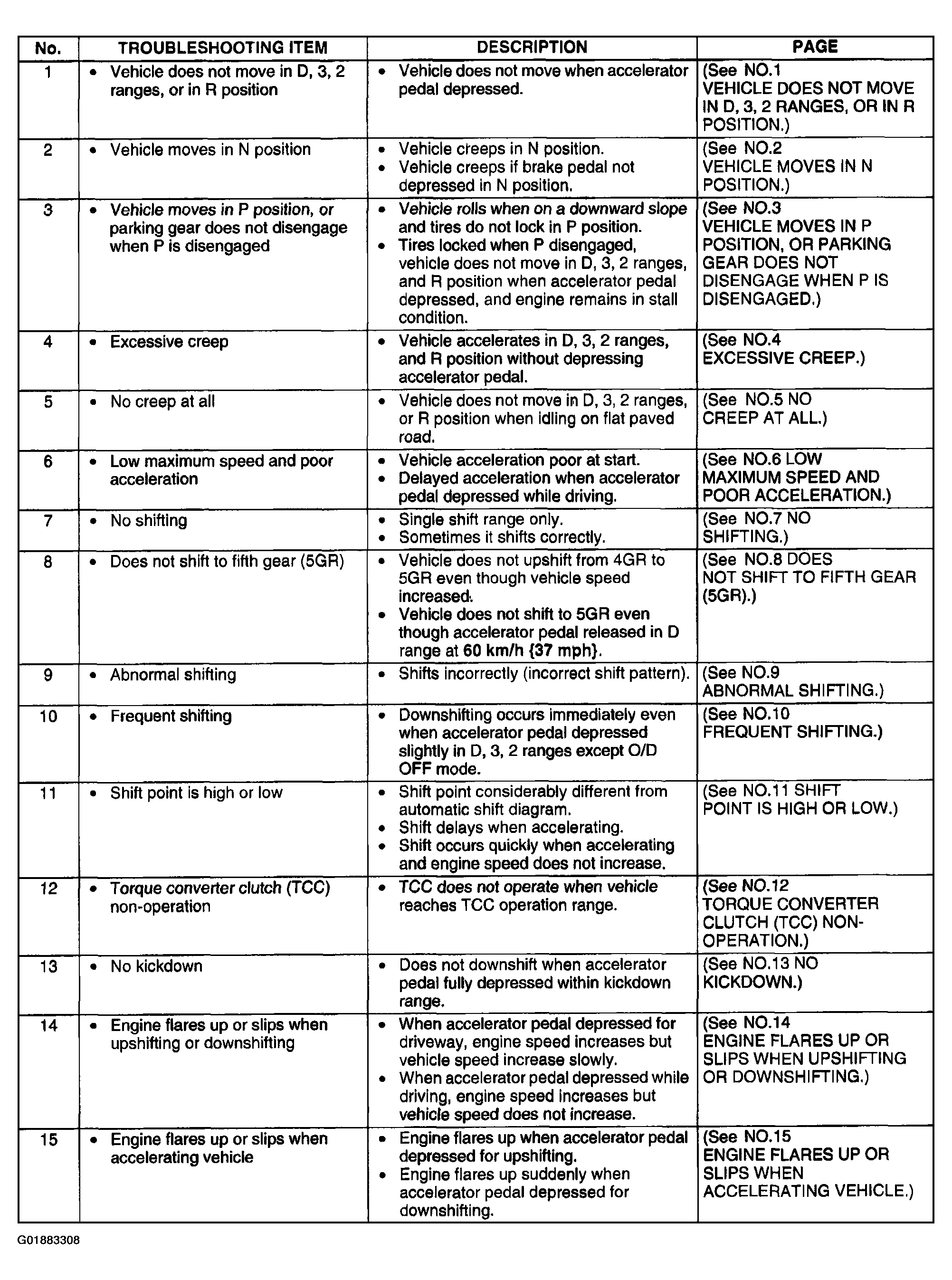

Fig 1: Automatic Transaxle Troubleshooting Symptoms Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

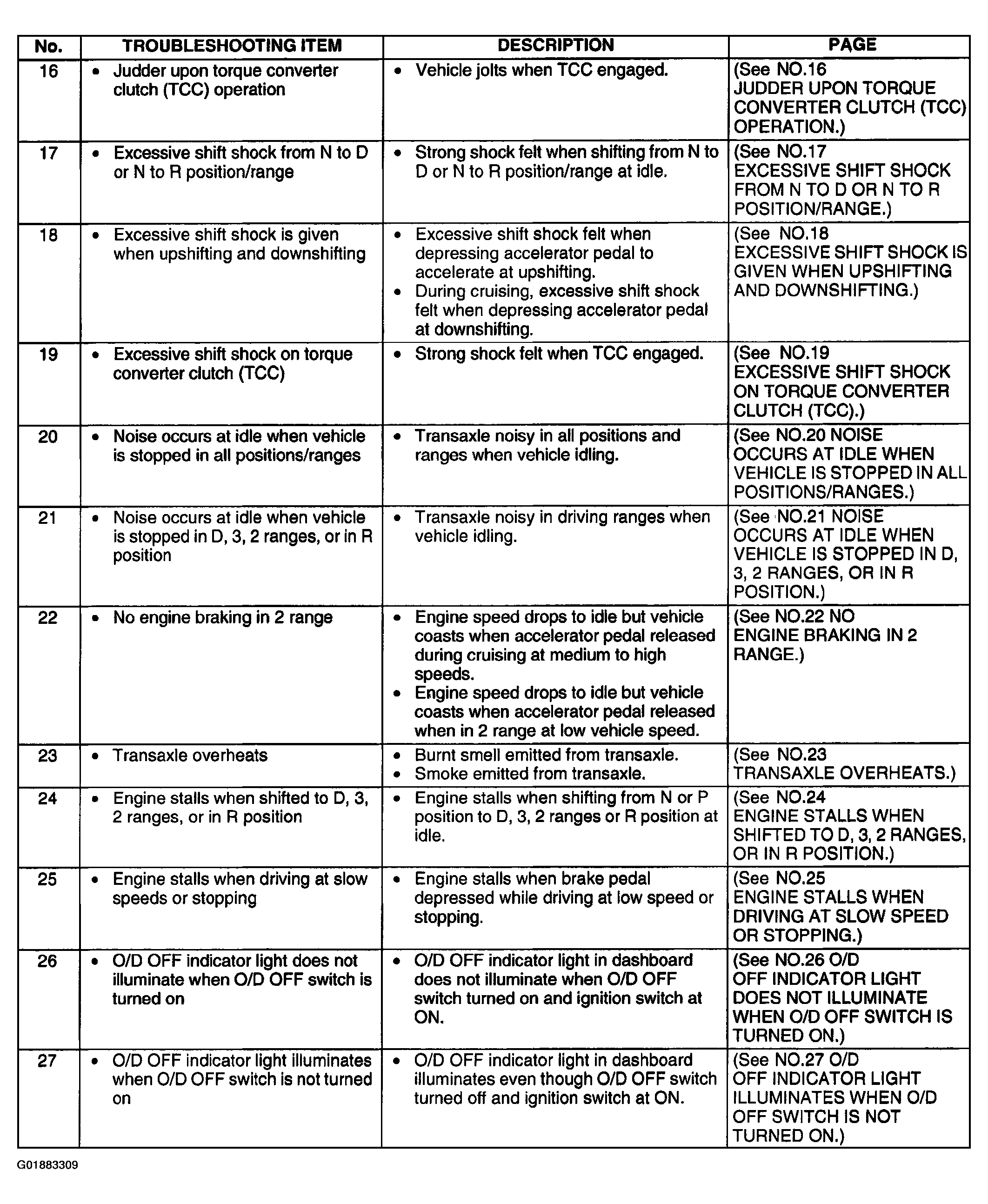

Fig 2: Automatic Transaxle Troubleshooting Symptoms Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
