Symptom Troubleshooting - Automatic Transaxle
›
No. 23 Transaxle Overheats
›
Notes
No. 23 Transaxle Overheats: Notes

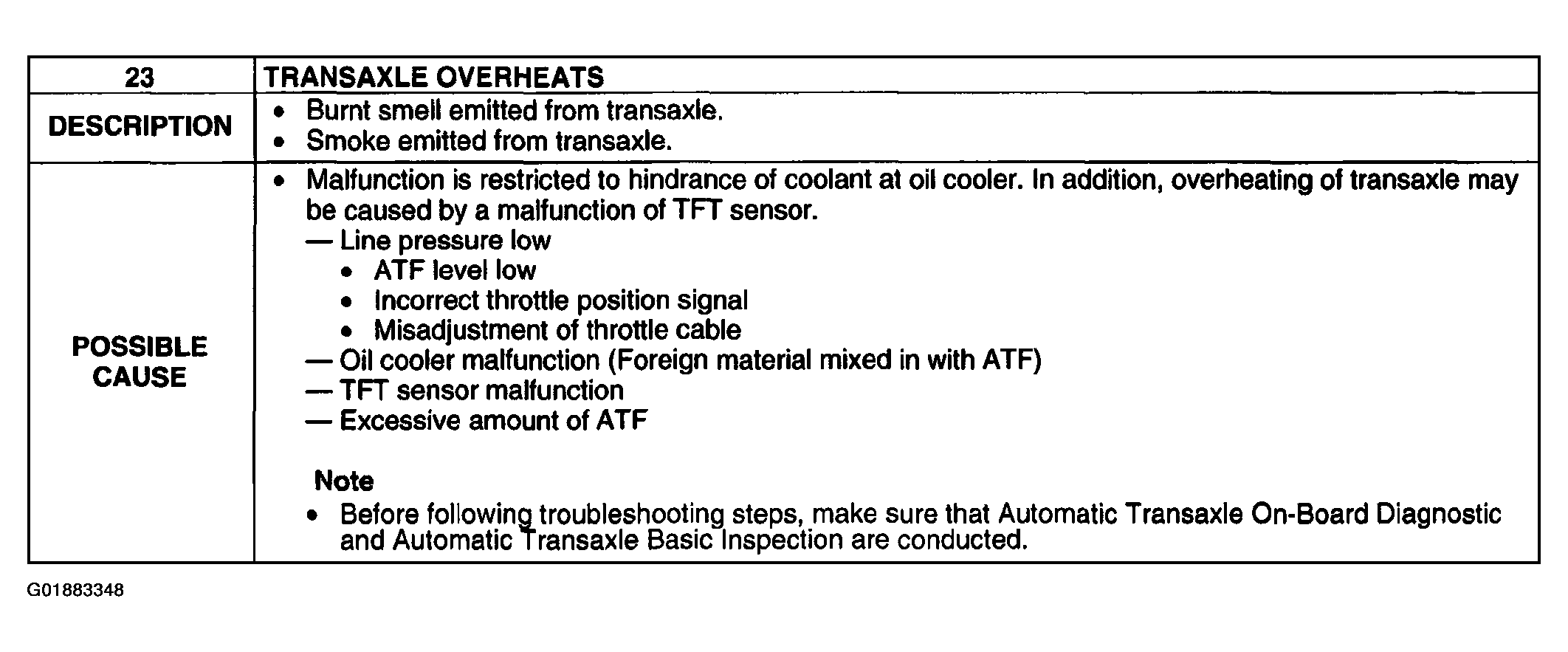

Fig 1: Troubleshooting Symptoms Chart - Transaxle Overheats
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
