Symptom Troubleshooting - Automatic Transaxle
›
No. 9 Abnormal Shifting
›
Notes
No. 9 Abnormal Shifting: Notes

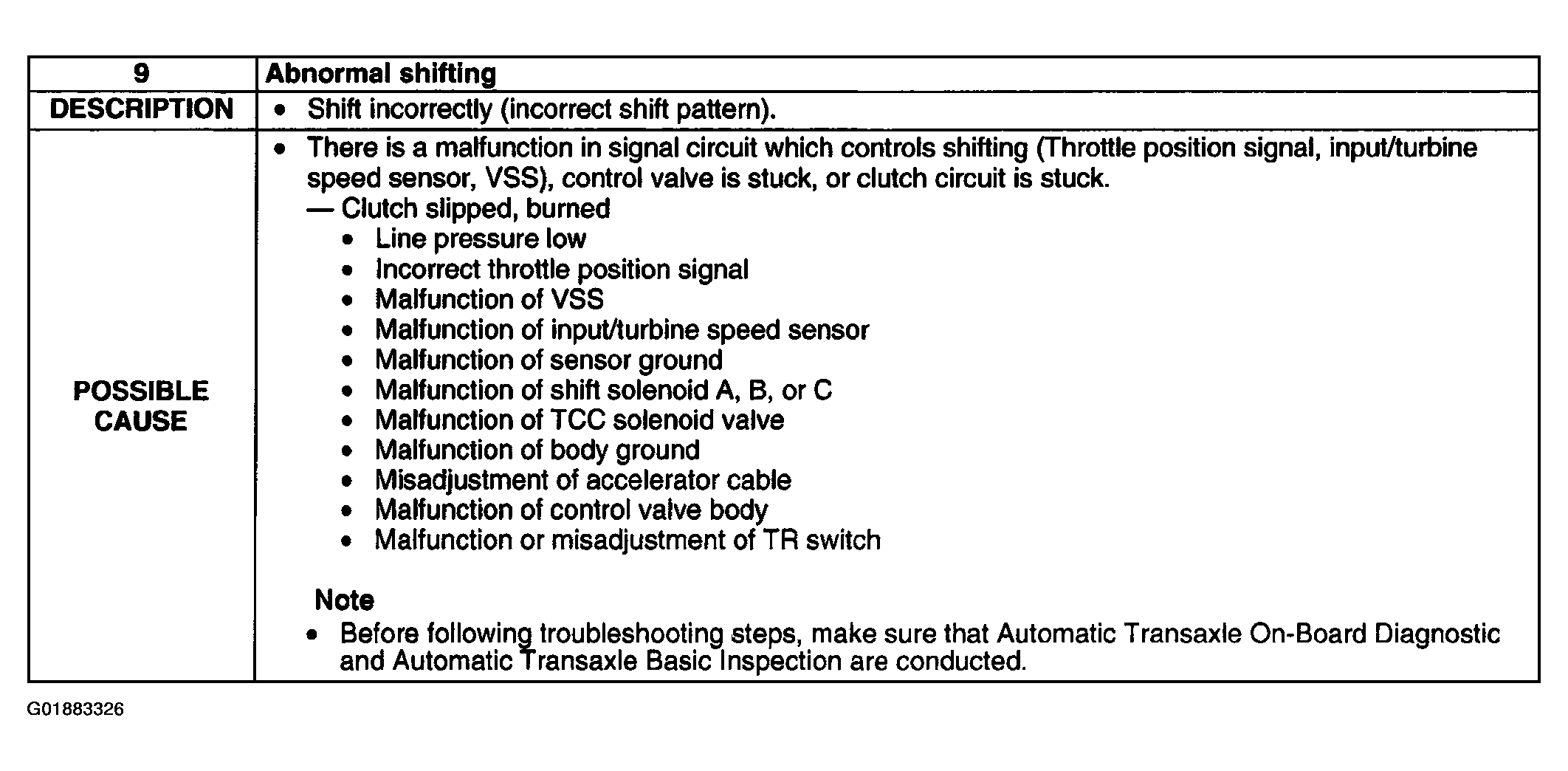

Fig 1: Troubleshooting Symptoms Chart - Abnormal Shifting
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
