Power Door Lock System Location Index

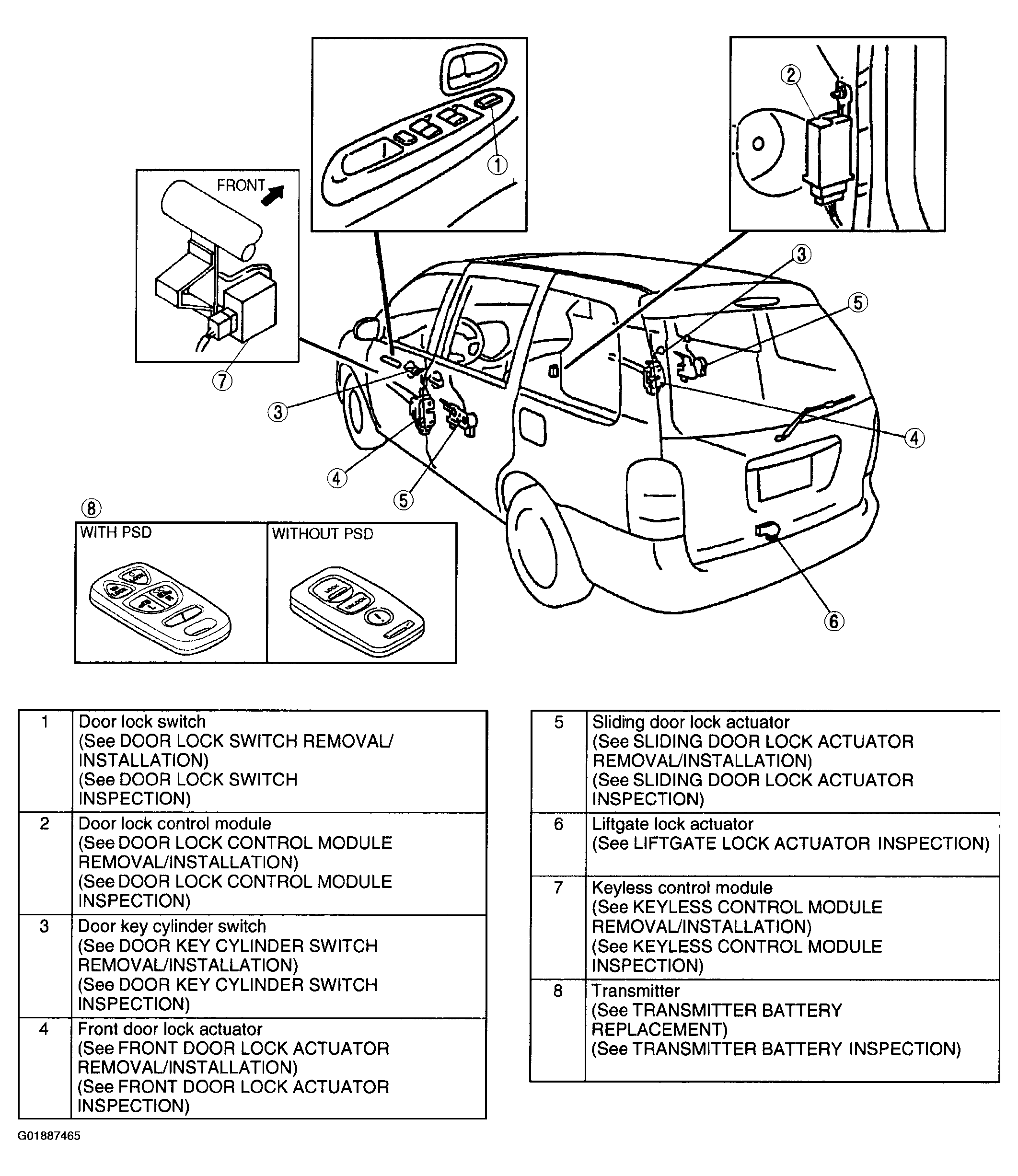

Fig 1: Locating Power Door Lock System Component Index
G01887465Courtesy of MAZDA MOTORS CORP.
