Socket Removal Note

  1. Turn the socket while pushing the protrusion of the ring through the hole of the socket with a tape-wrapped flathead screwdriver.
  2. Push the socket forward.

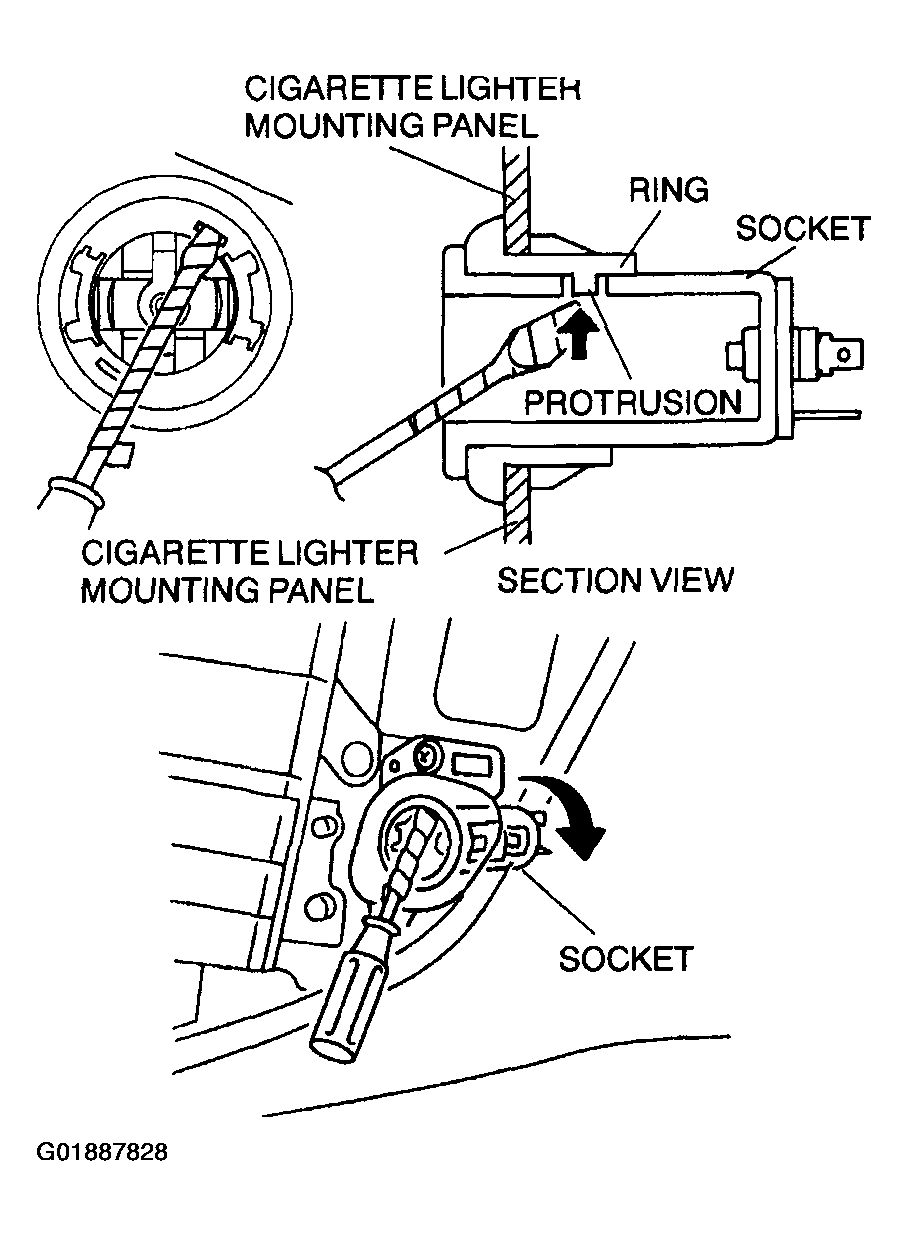

    Fig 1: Removing Socket
    G01887828Courtesy of MAZDA MOTORS CORP.
  3. Return the socket clockwise to original angle position as shown in Fig 2 , to pull it forward.
    Fig 2: Positioning Socket
    G01887829Courtesy of MAZDA MOTORS CORP.
