Woofer Removal/Installation

Disconnect the negative battery cable.
Remove the driver-side rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the figures.

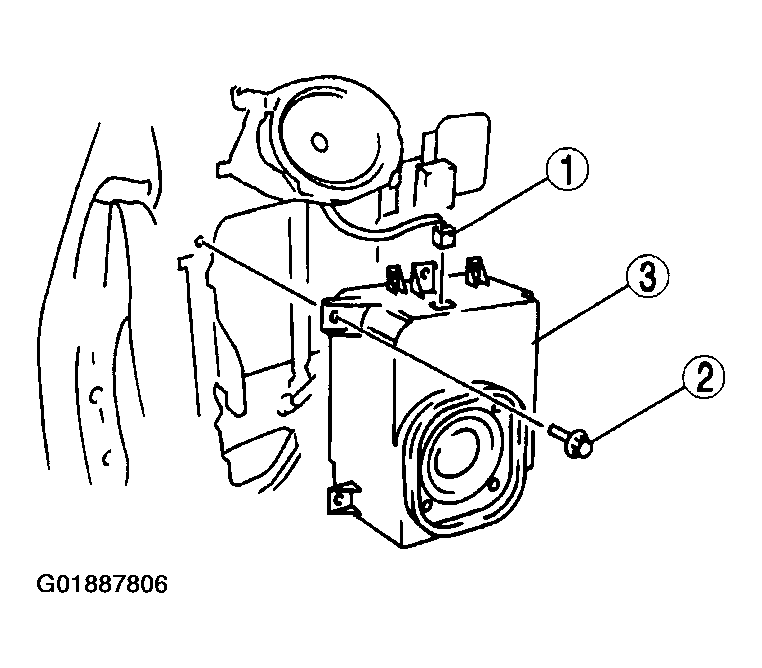

Fig 1: Removing Woofer
Courtesy of MAZDA MOTORS CORP.

Fig 2: Woofer Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
