Lubrication System Location Index

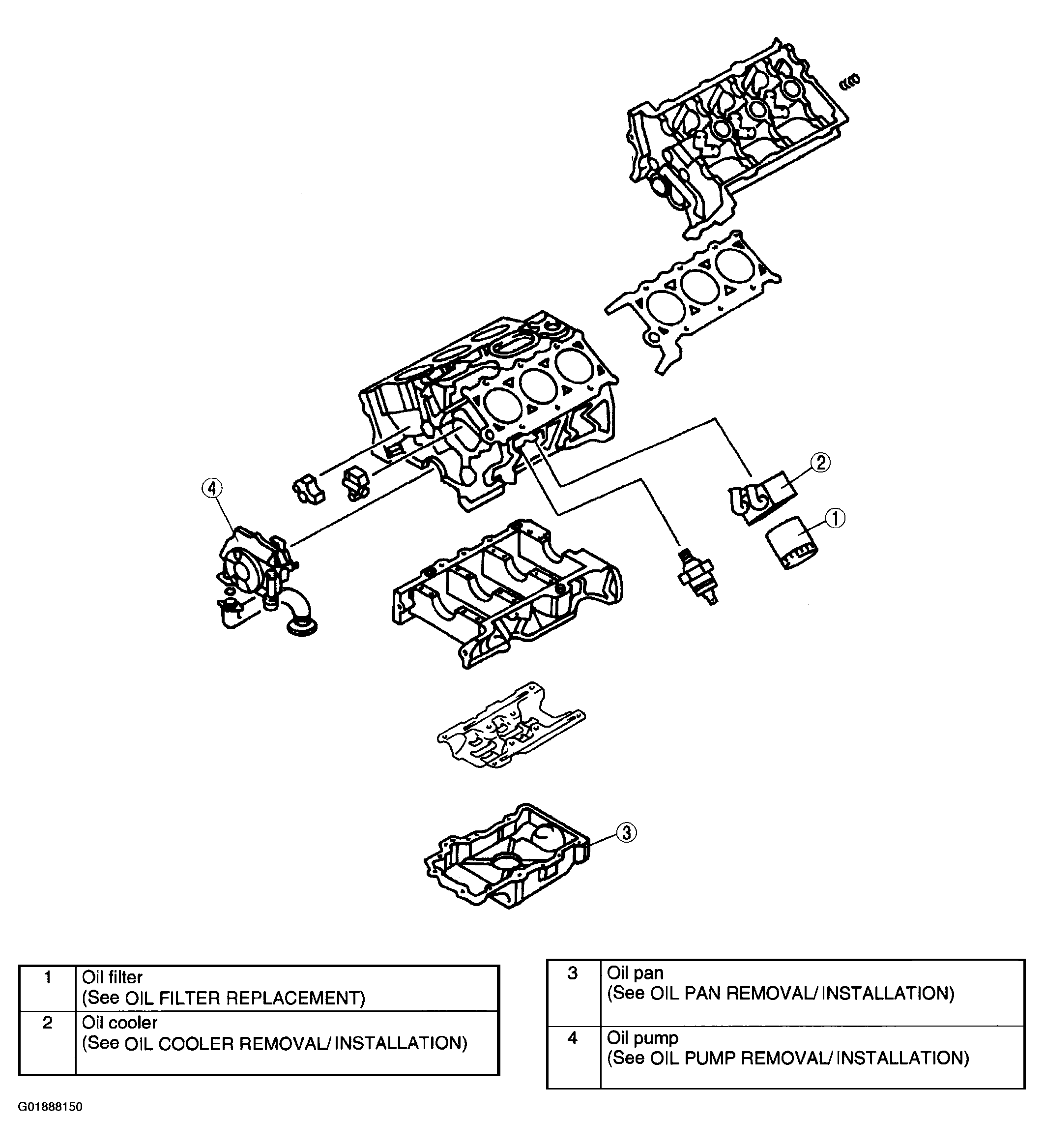

Fig 1: Lubrication System Location Index
G01888150Courtesy of MAZDA MOTORS CORP.
