Front Climate Control Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figures.

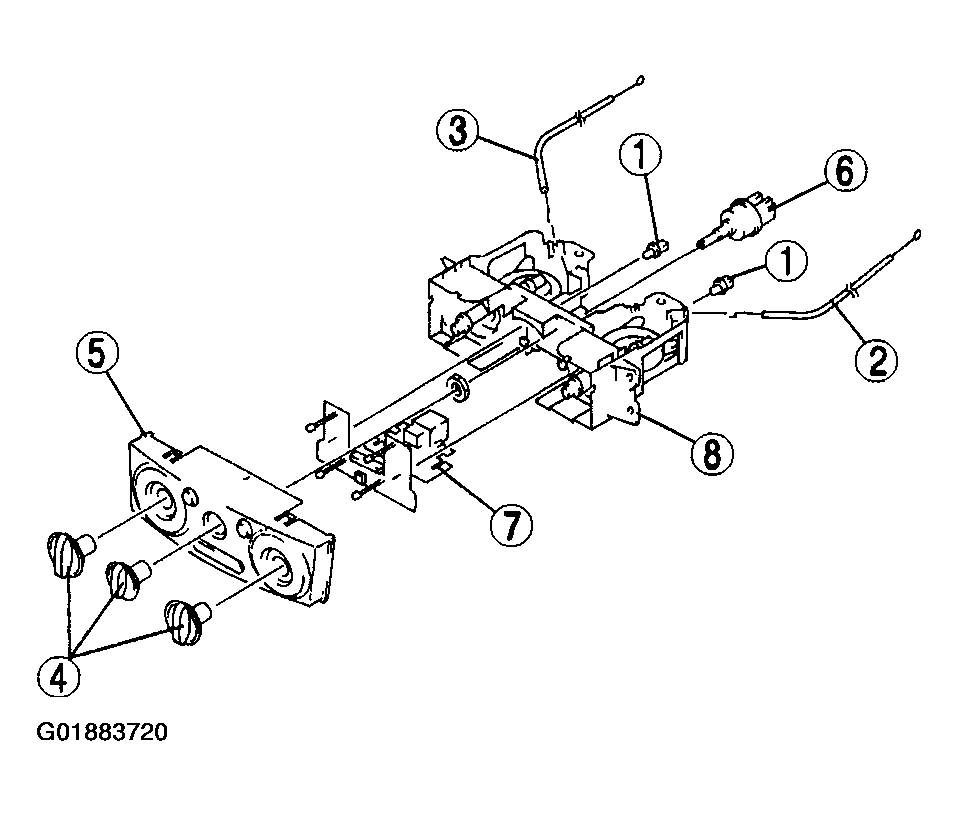

    Fig 1: Exploded View Of Front Climate Control Unit
    G01883720Courtesy of MAZDA MOTORS CORP.
    Fig 2: Front Climate Control Unit Removal Sequence
    G01883719Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
