Front Climate Control Unit Installation

  1. Install the front climate control unit to the center panel.

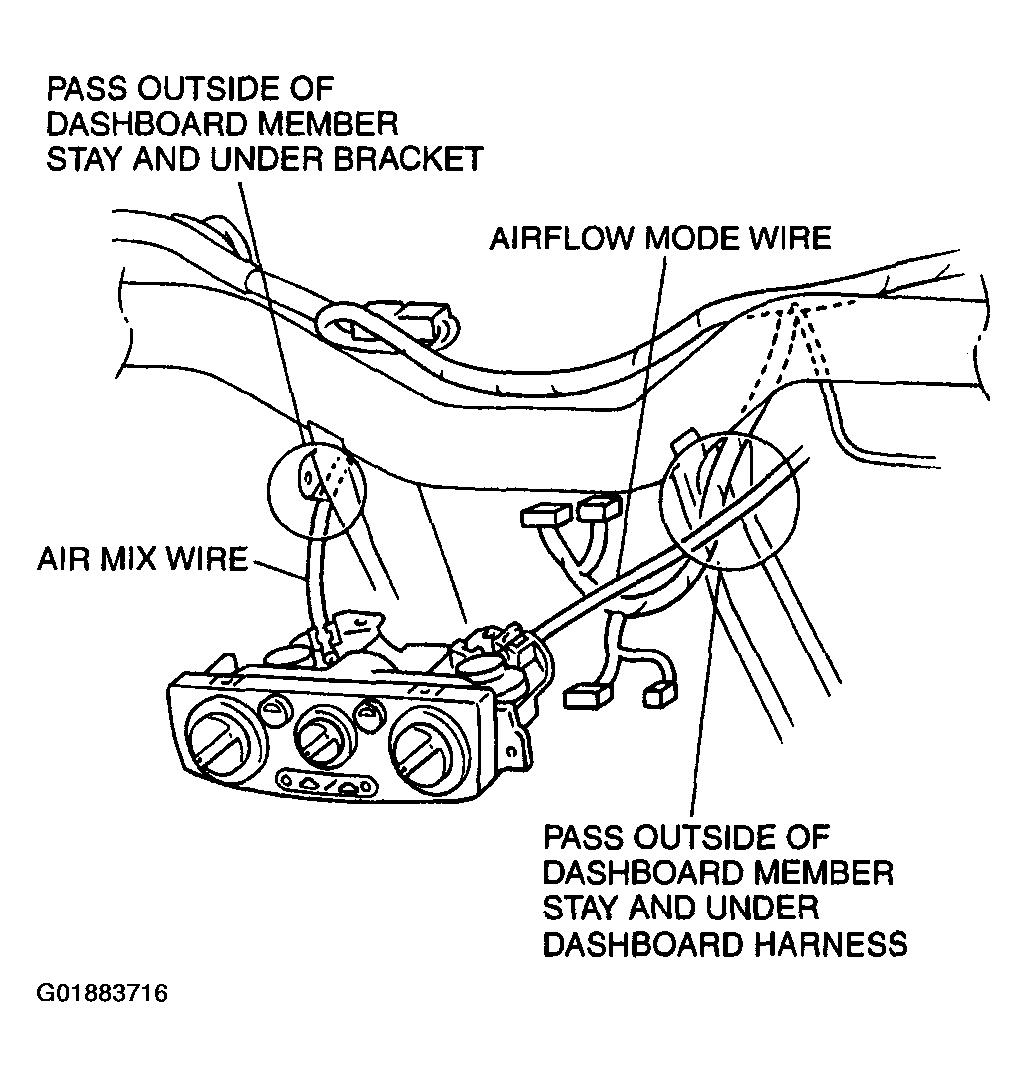

    Fig 1: Installing Front Climate Control Unit
    G01883716Courtesy of MAZDA MOTORS CORP.
  2. Pass each wire through the following routes then connect to front A/C unit.
  3. Connect the front climate control unit connectors.
  4. Install the meter hood.
  5. Adjust the front climate control unit wire. (See FRONT CLIMATE CONTROL UNIT WIRE ADJUSTMENT  .)
  6. Connect the negative battery cable.
