PSD Front Switch Connector End View

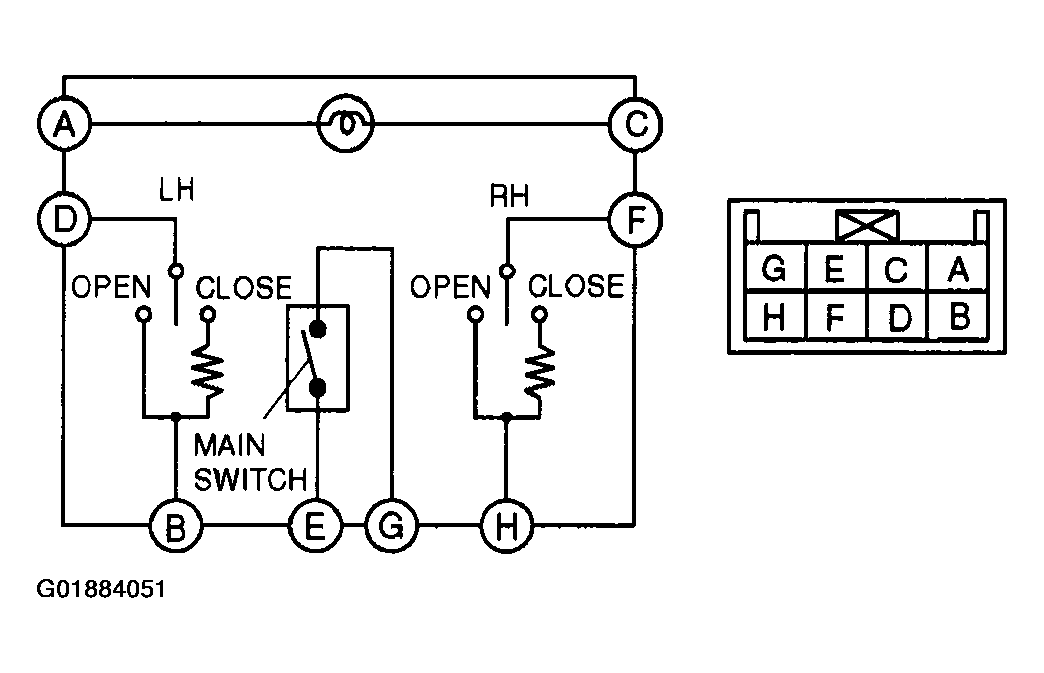

Fig 1: PSD Front Switch Connector End View
G01884051Courtesy of MAZDA MOTORS CORP.
