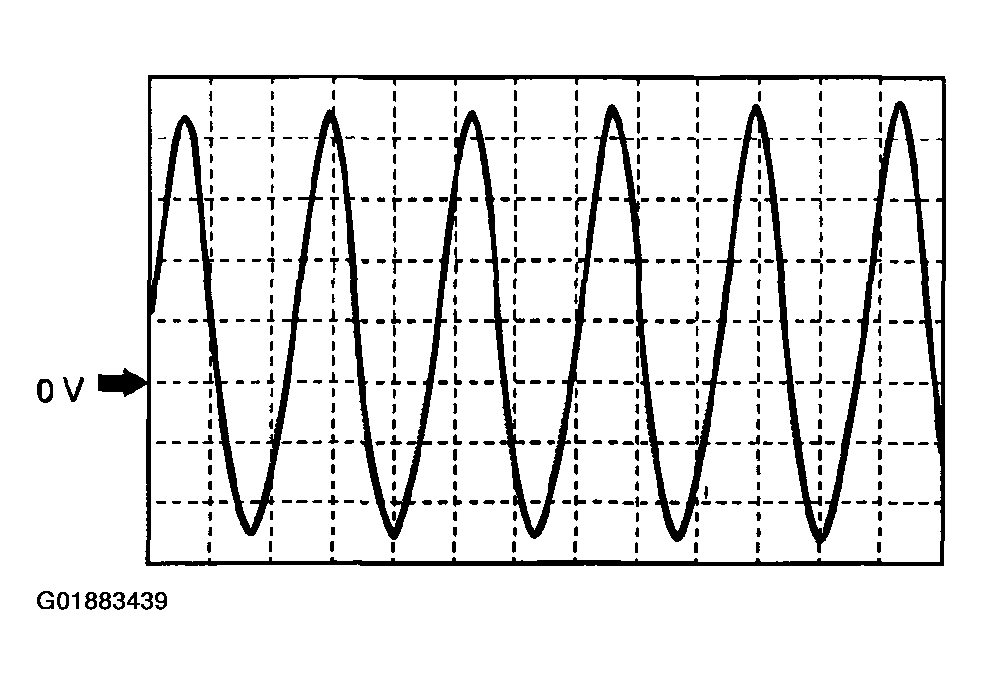

Input/turbine speed sensor signal

TCM terminal: 1N (+)-2F (-)
Oscilloscope setting: 1 V/DIV (Y) 1 ms/DIV (X)
Measuring condition: Turbine speed at 700 rpm, N position

Fig 1: Inspecting Input/Turbine Speed Sensor Signal
Courtesy of MAZDA MOTORS CORP.
