Power Antenna Removal/Installation
›
Notes
Power Antenna Removal/Installation: Notes
Disconnect the negative battery cable.
Remove the trunk side trim (LH). (See
TRUNK SIDE TRIM REMOVAL/INSTALLATION
.)
Remove in the order indicated in the figure.

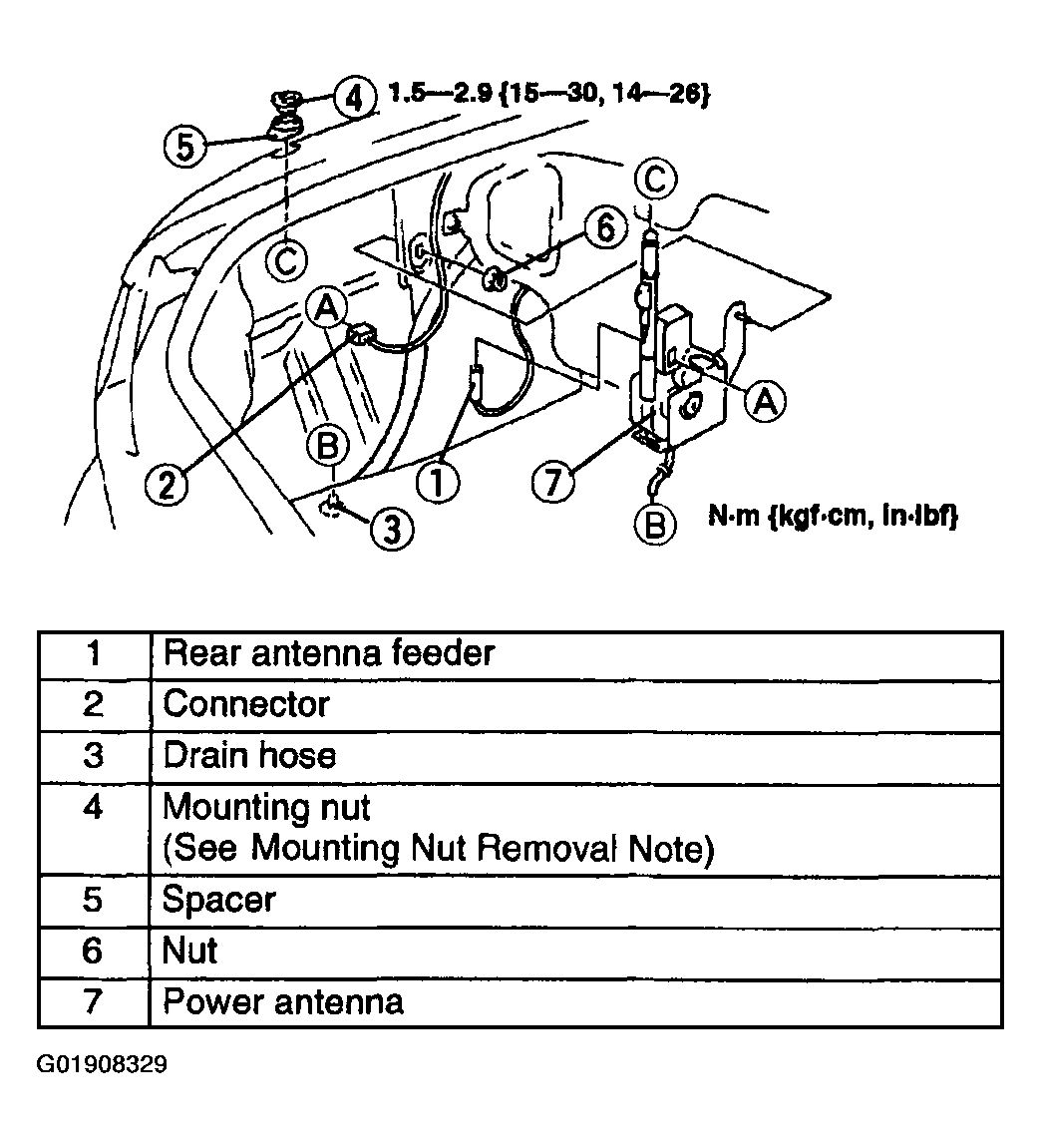

Fig 1: Removing/Installing Power Antenna
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
