Generator Connector End View
Generator Connector End View

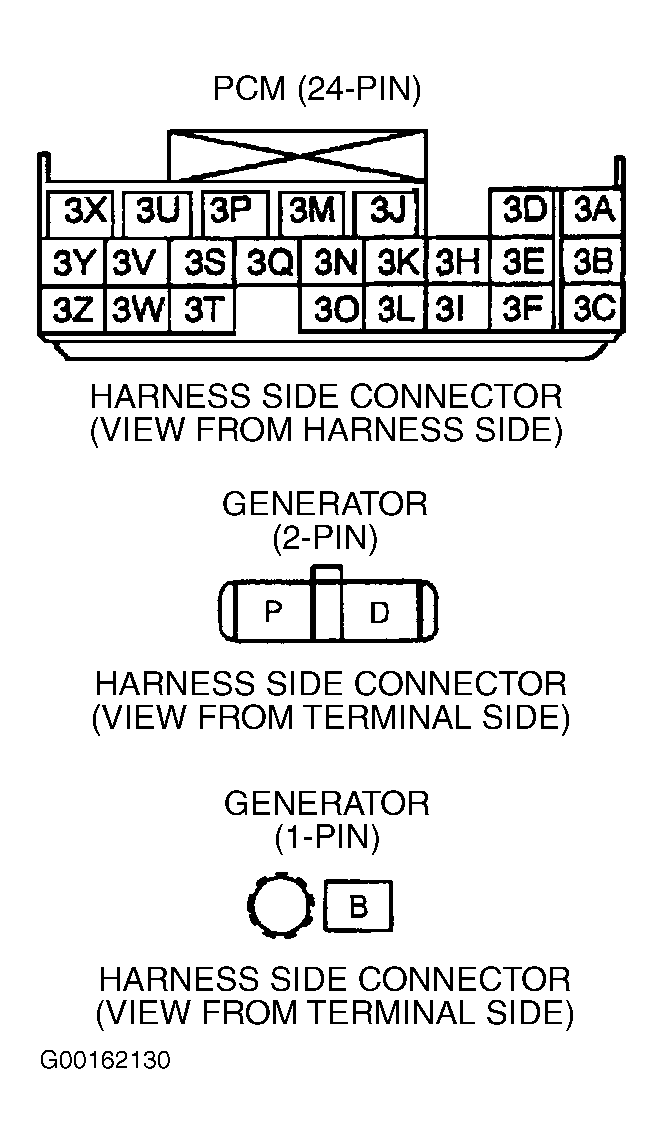

Fig 1: Generator Connector End View
Courtesy of MAZDA MOTORS CORP.
Fig 1: Generator Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
