Water Pump Removal/Installation: Notes

  1. Remove the air cleaner.
  2. Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    Fig 1: Water Pump Removal Order Table
    G01906784Courtesy of MAZDA MOTORS CORP.

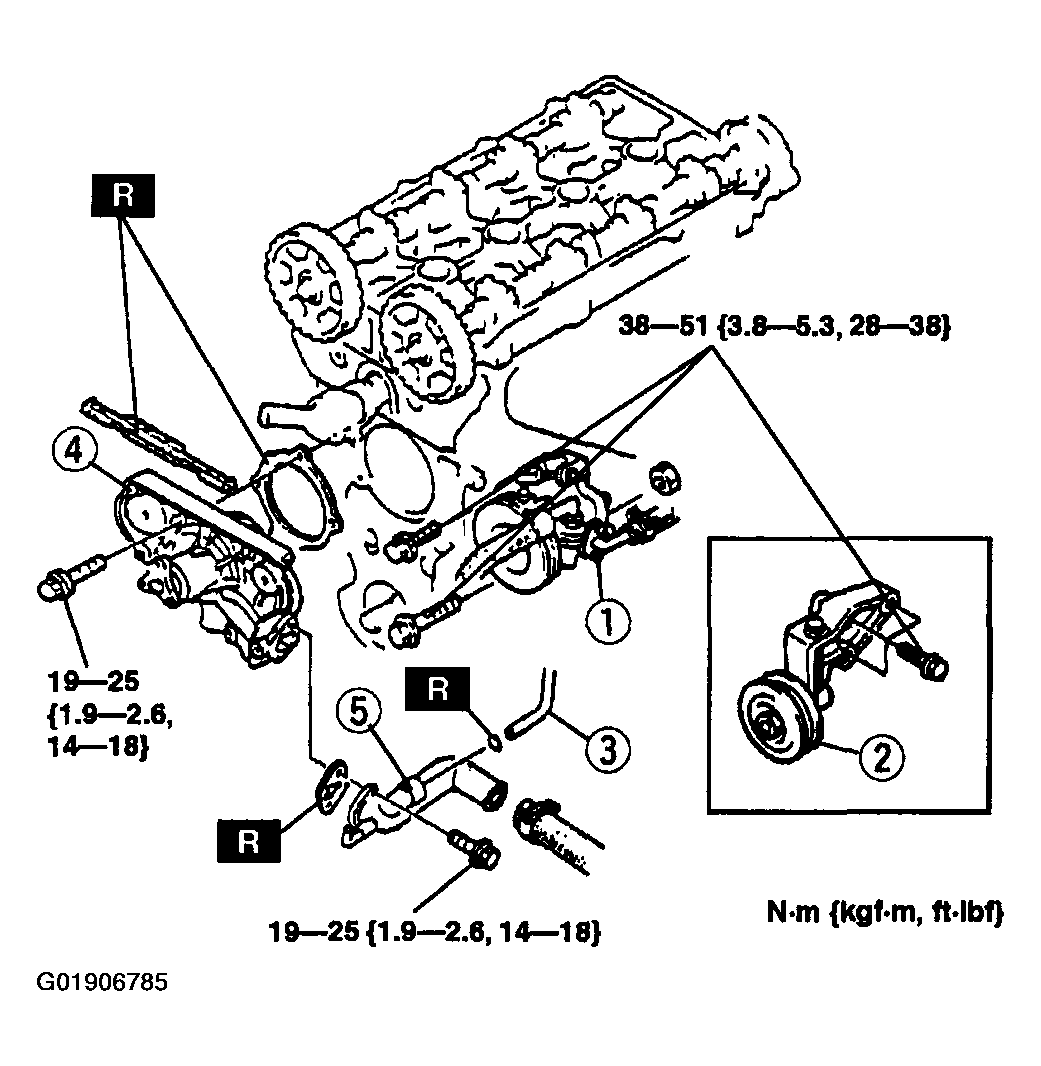

    Fig 2: Removing/Installing Water Pump
    G01906785Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
