Steering Shaft Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

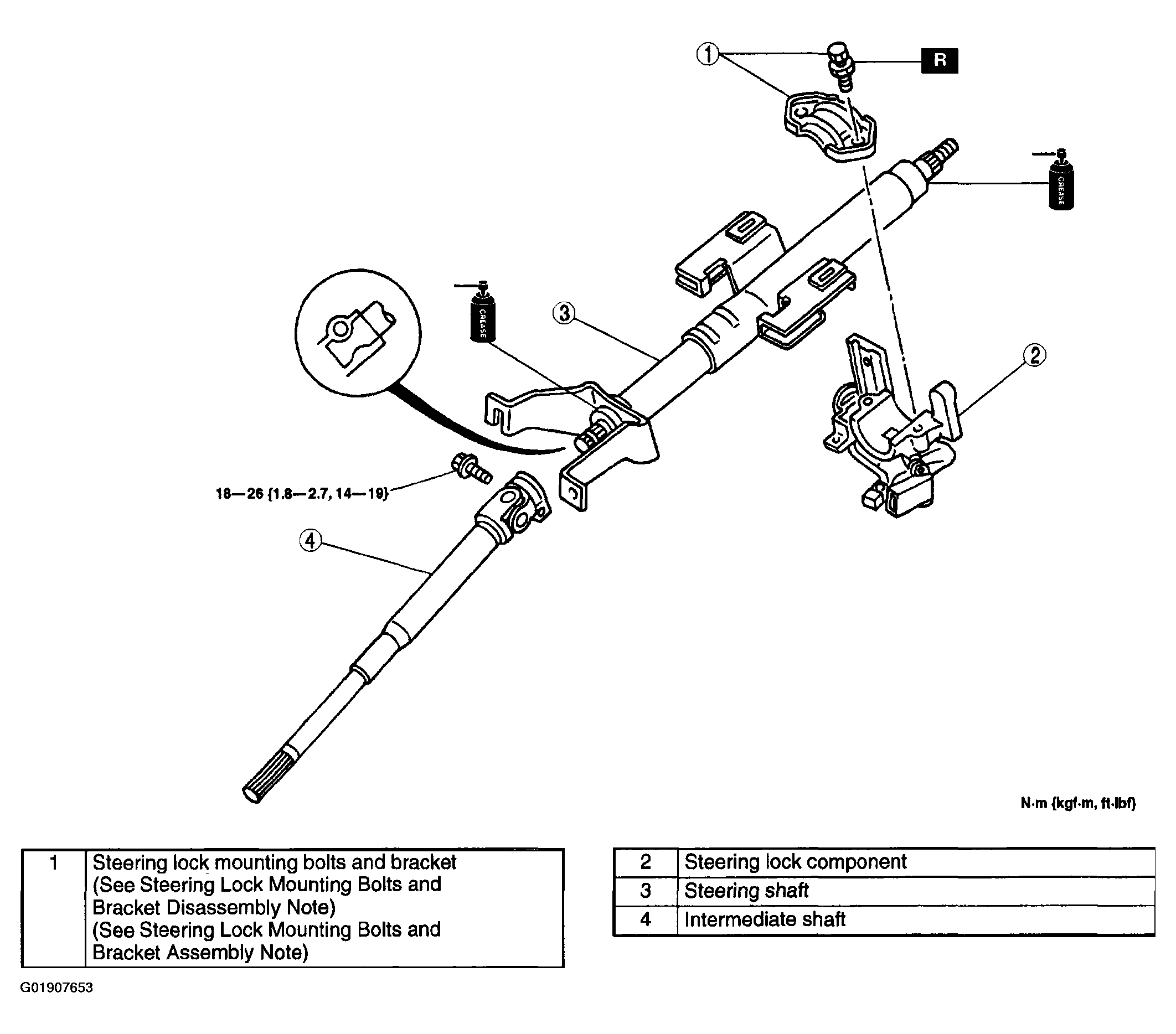

    Fig 1: Disassembly Order Of Steering Shaft
    G01907653Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
