Front Wheel Alignment
›
Specification (Unloaded)
Specification (Unloaded)

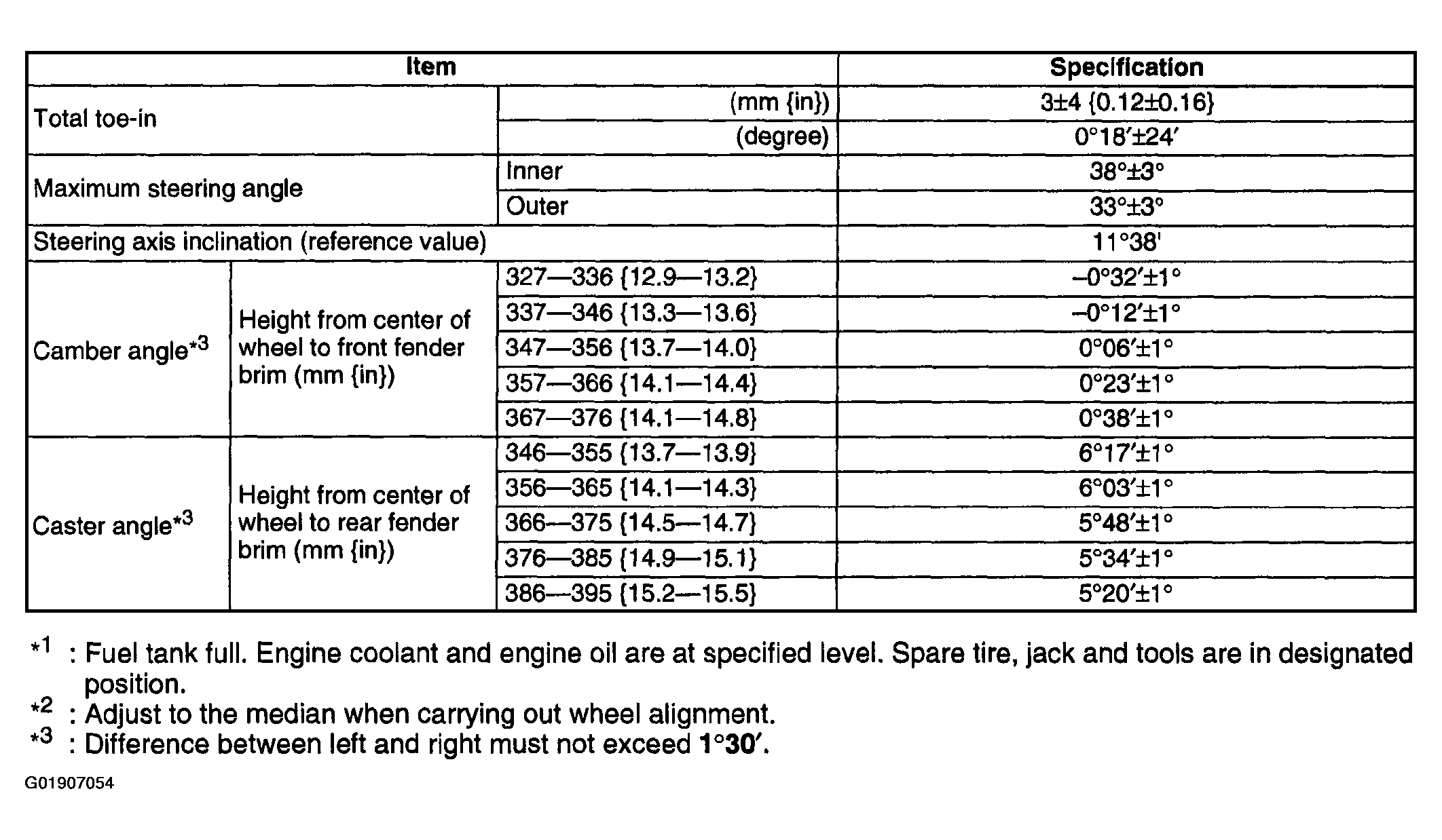

Fig 1: Front Wheel Alignment Specification (Unloaded)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
