Specification (Unloaded)

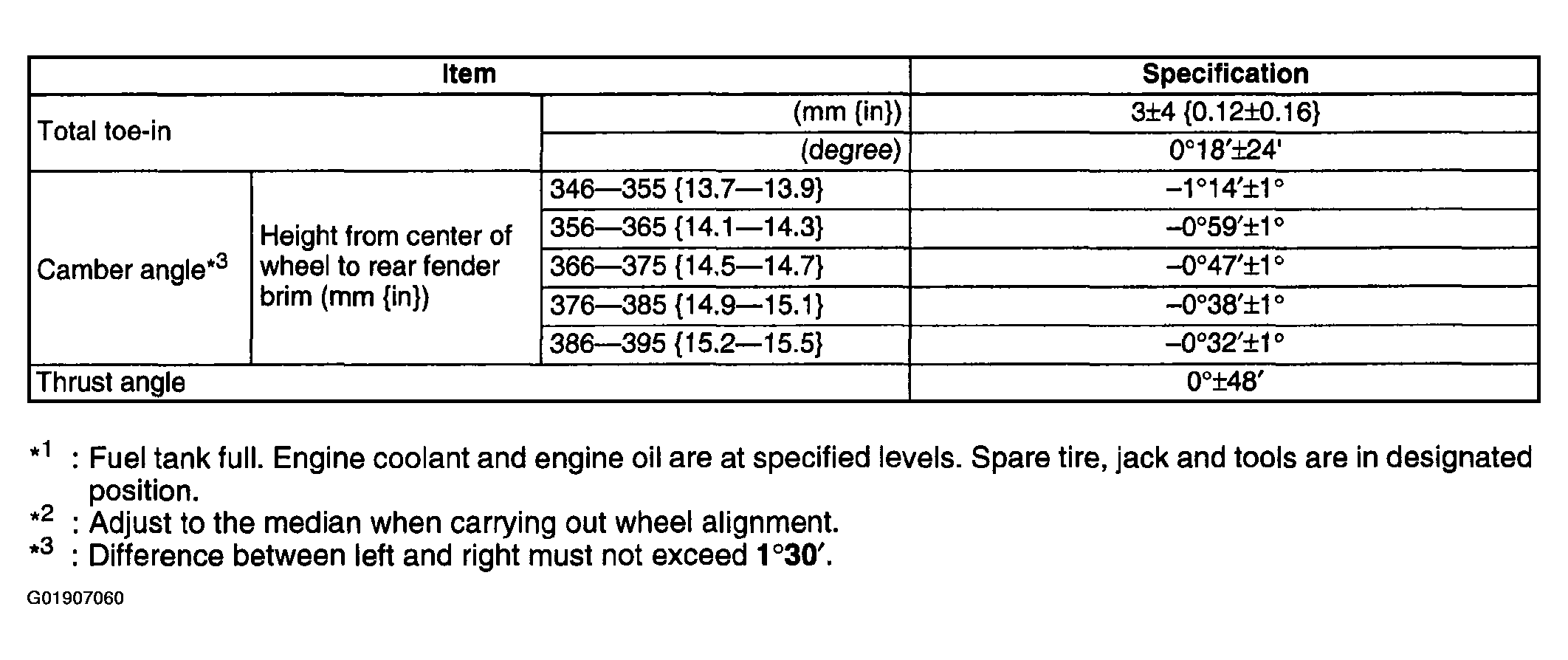

Fig 1: Rear Wheel Alignment Specification (Unloaded)
G01907060Courtesy of MAZDA MOTORS CORP.
