Automatic Transmission Assembly: Components

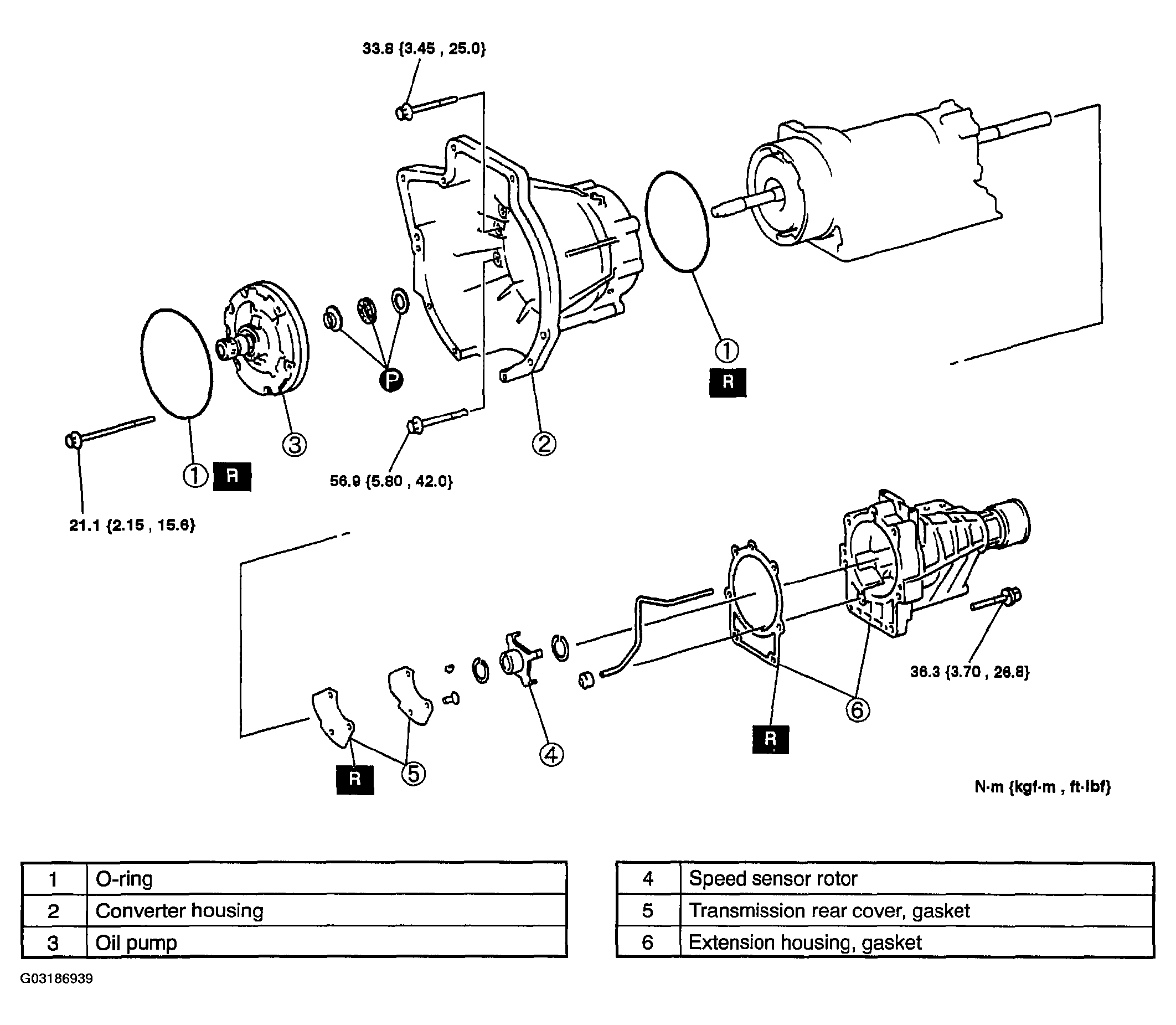

Fig 1: Identifying Transmission Components (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

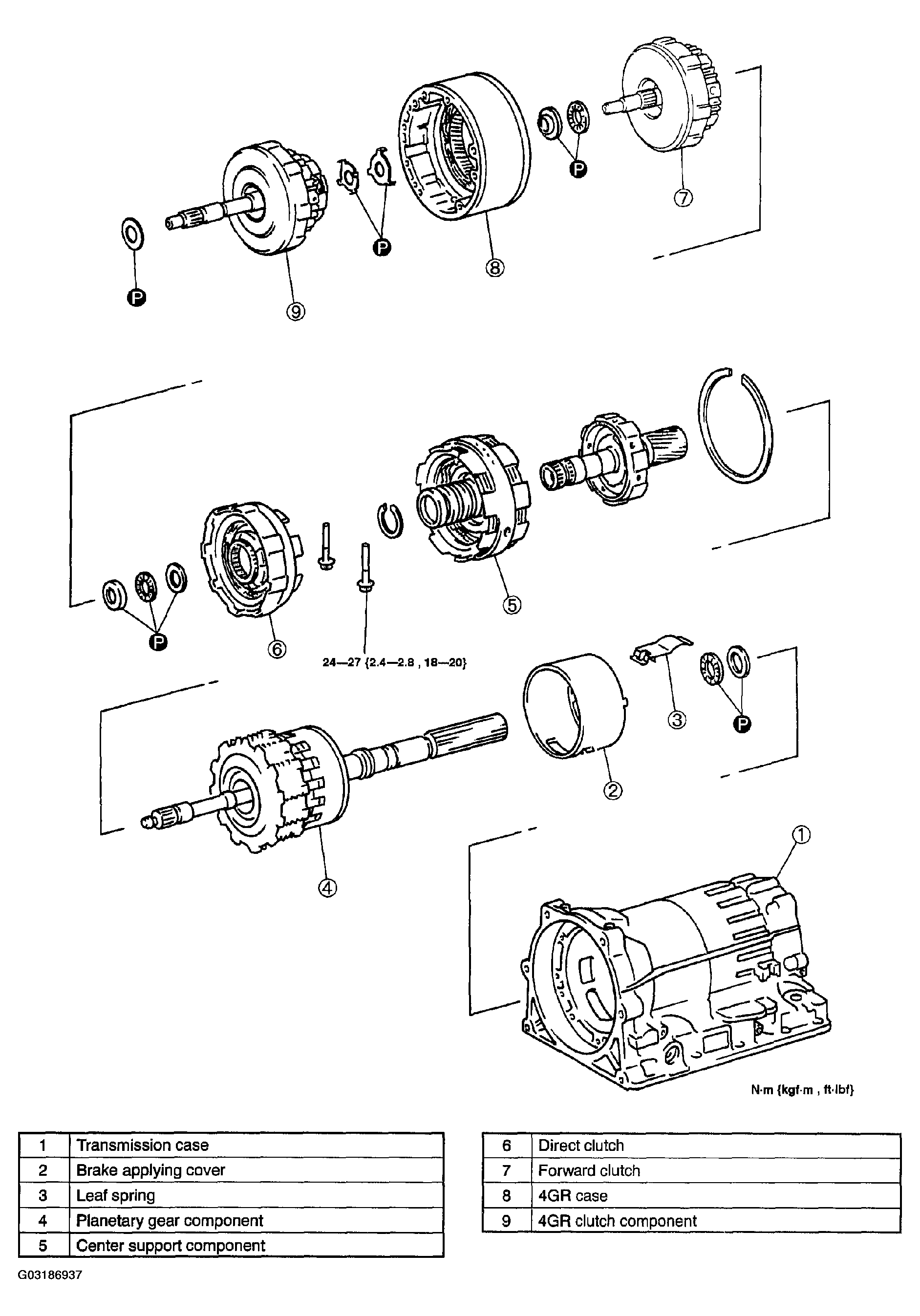

Fig 2: Identifying Transmission Components (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Transmission Components (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

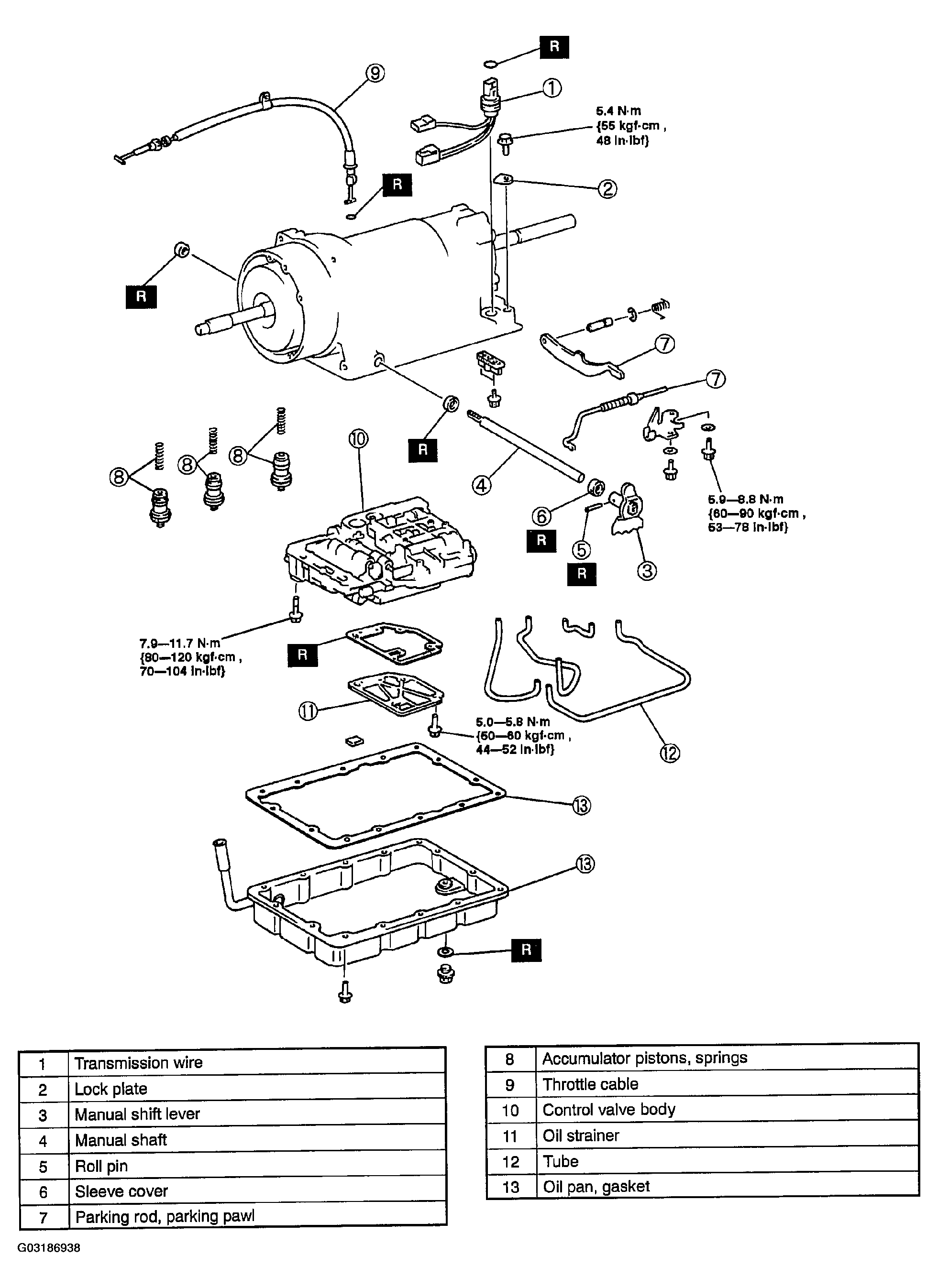

Fig 4: Identifying Transmission Components (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
