Automatic Transmission Disassembly: Disassembly: Components

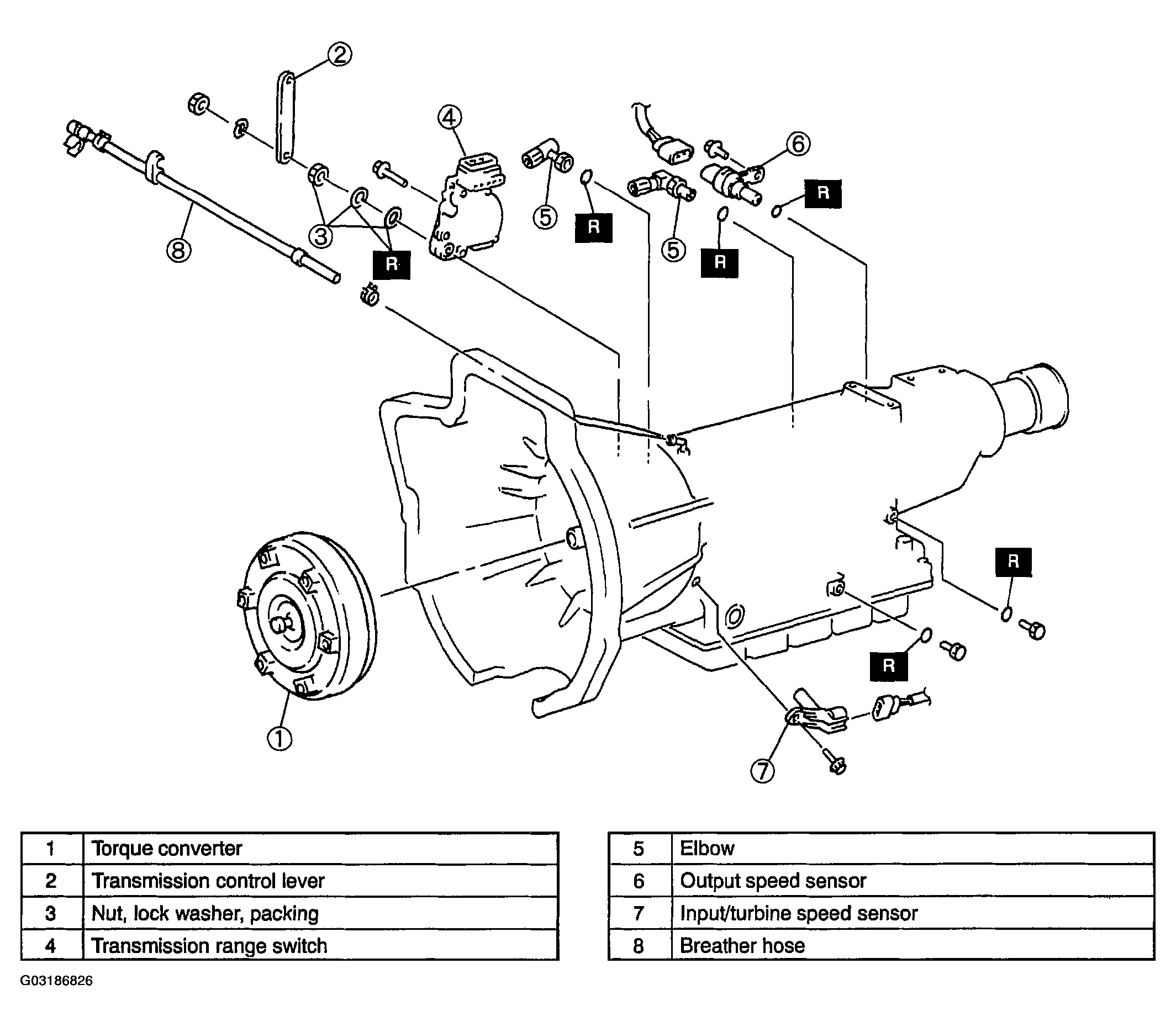

Fig 1: Disassembling Transmission Assembly (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

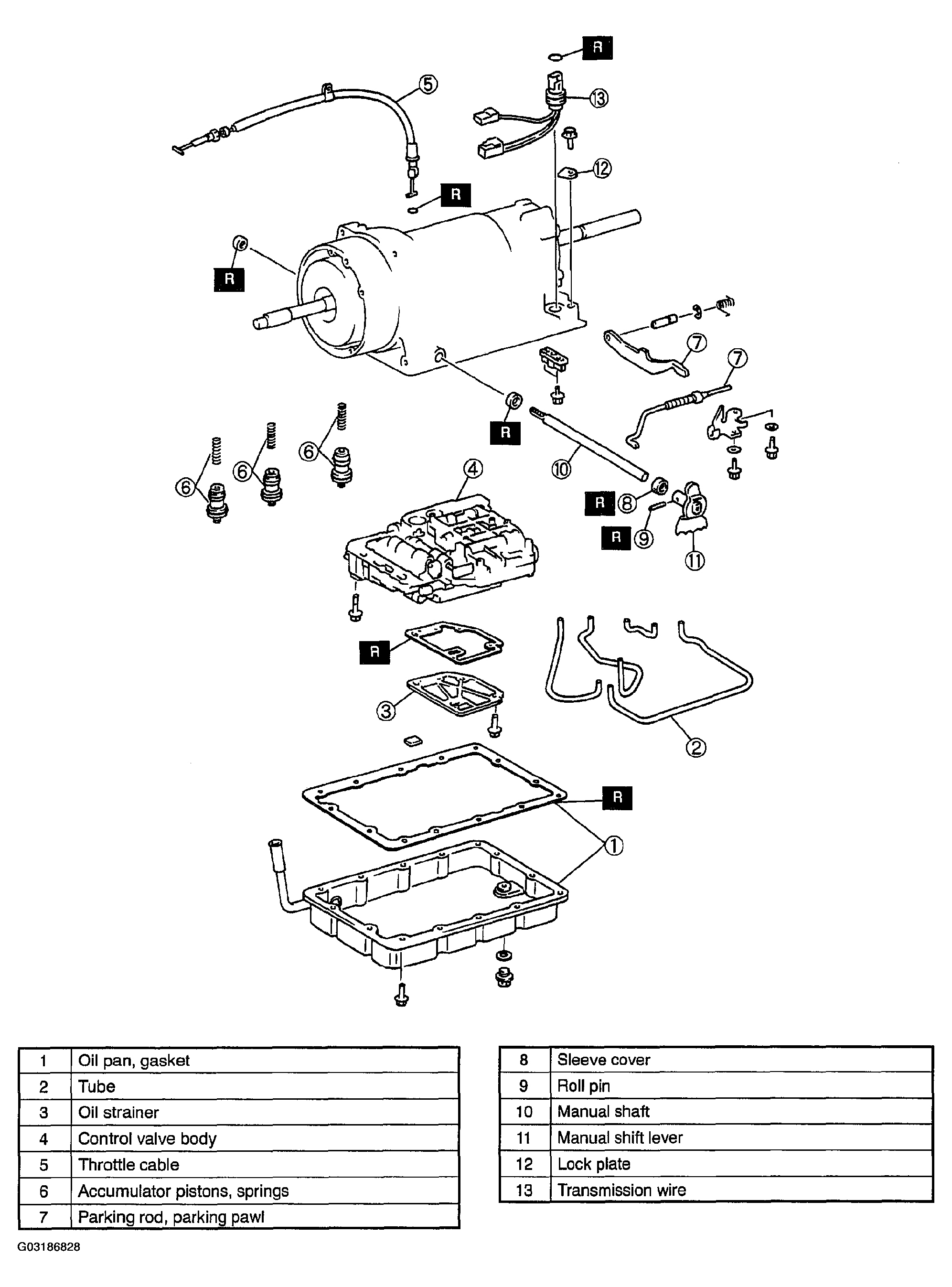

Fig 2: Disassembling Transmission Assembly (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

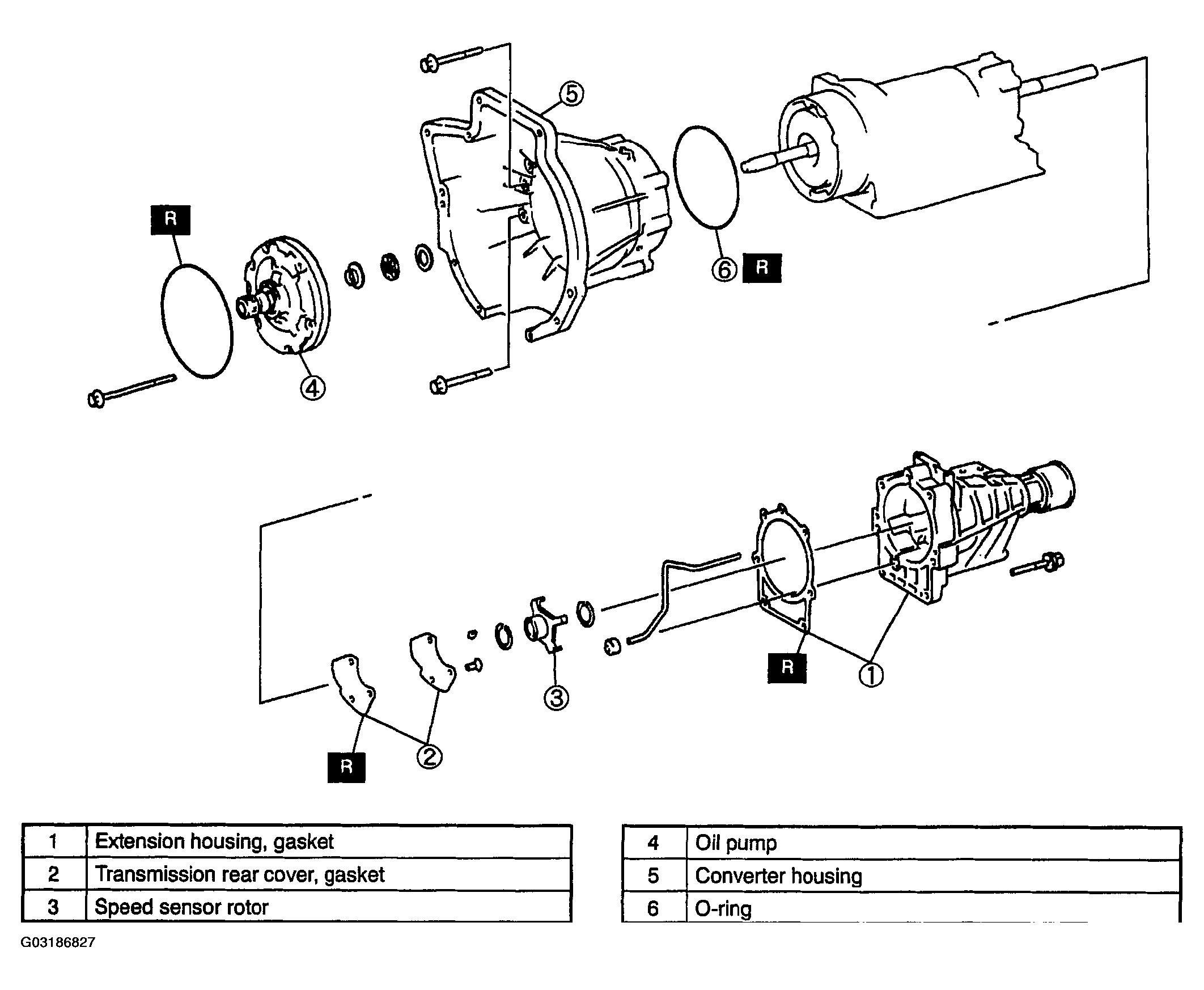

Fig 3: Disassembling Transmission Assembly (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

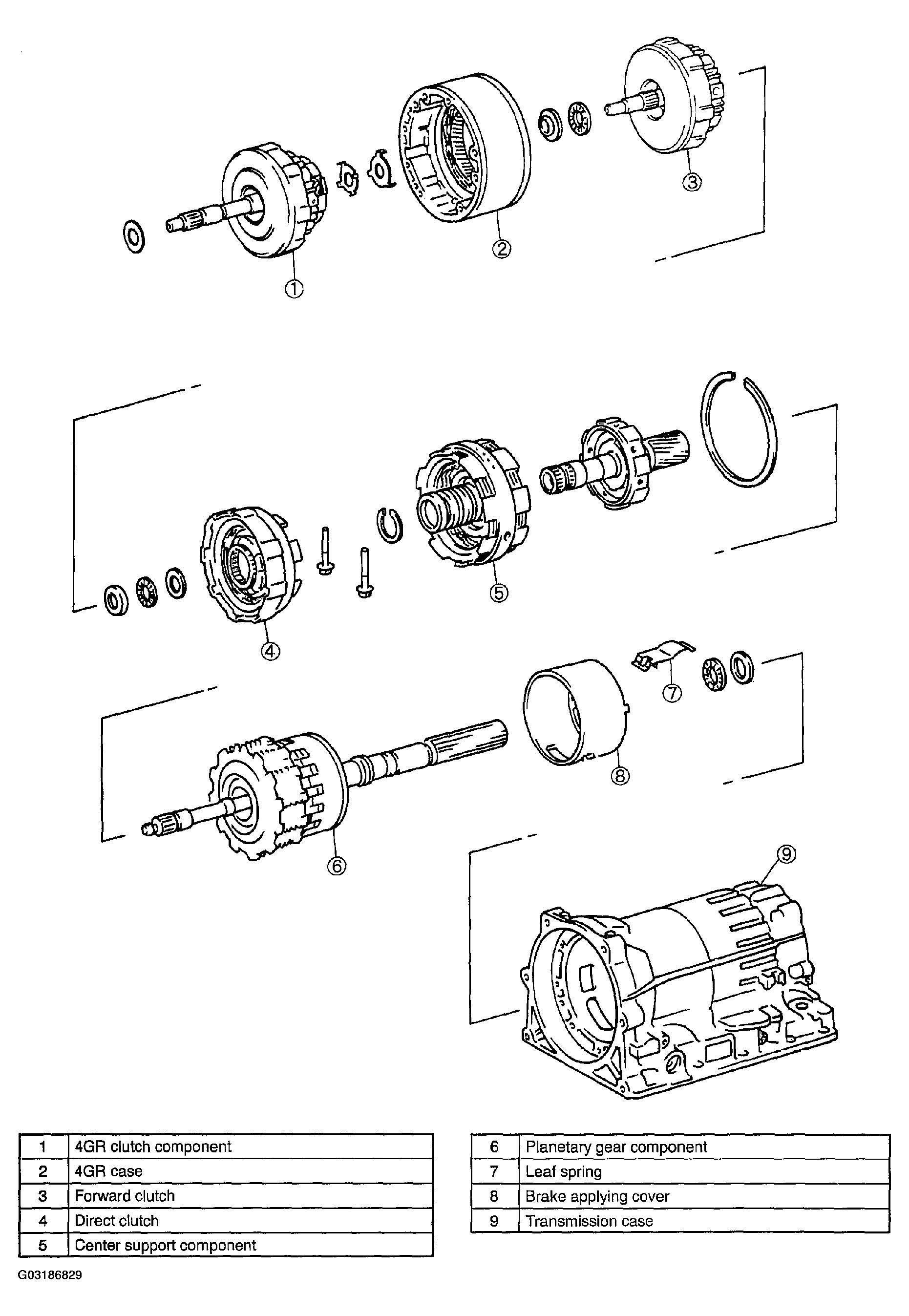

Fig 4: Disassembling Transmission Assembly (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
