Forward Clutch Disassembly/Assembly: Notes

  1. Carry out the preinspection before disassembly. (Refer to AUTOMATIC TRANSMISSION INSPECTION  , FORWARD CLUTCH PREINSPECTION  .)
  2. Disassemble in the order indicated in the figure.

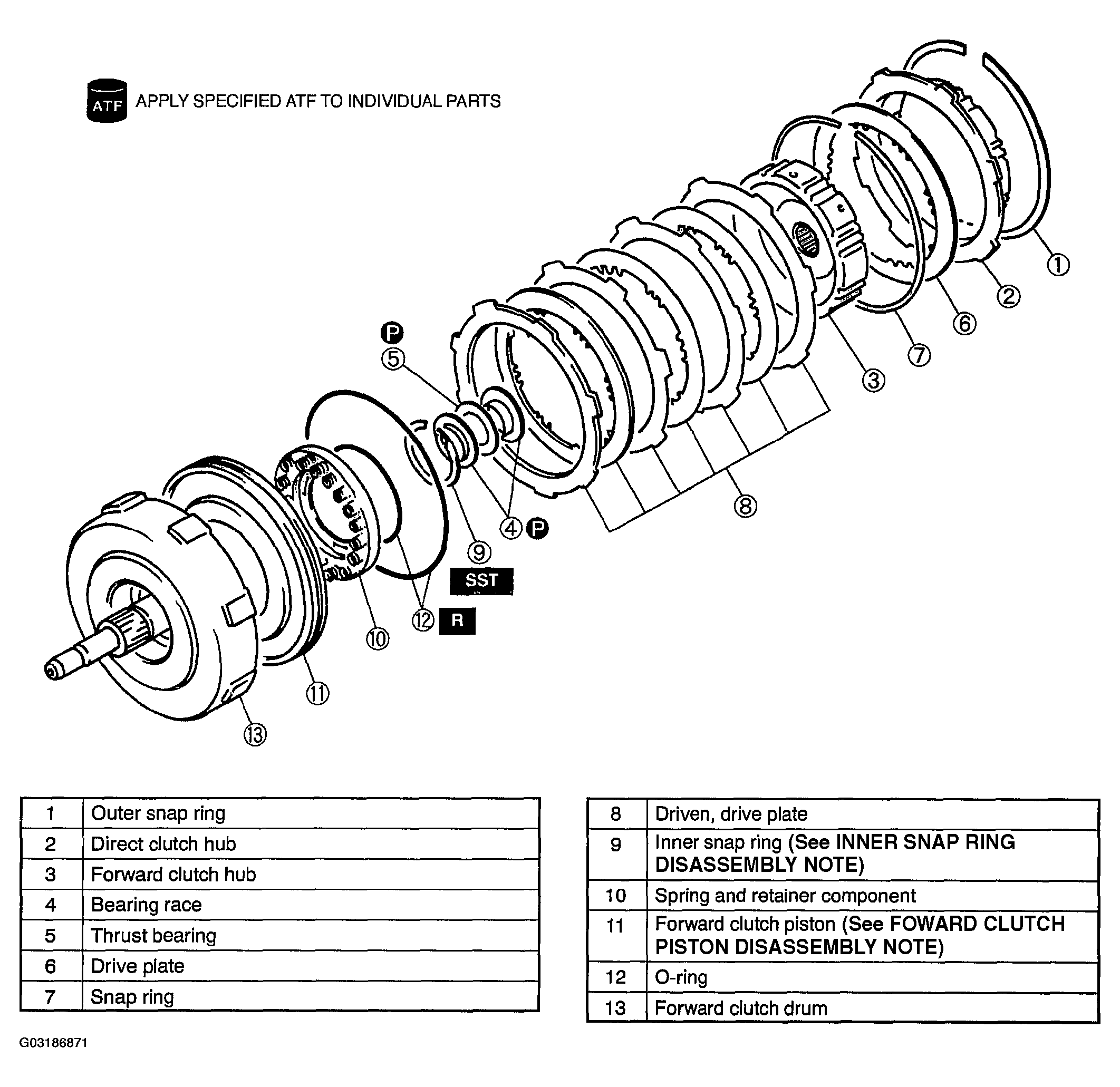

    3. Fig 1: Disassembling/Assembling Forward Clutch
    G03186871Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
