Oil Pump Disassembly/Assembly: Notes

  1. Remove in the order indicated in the figure.

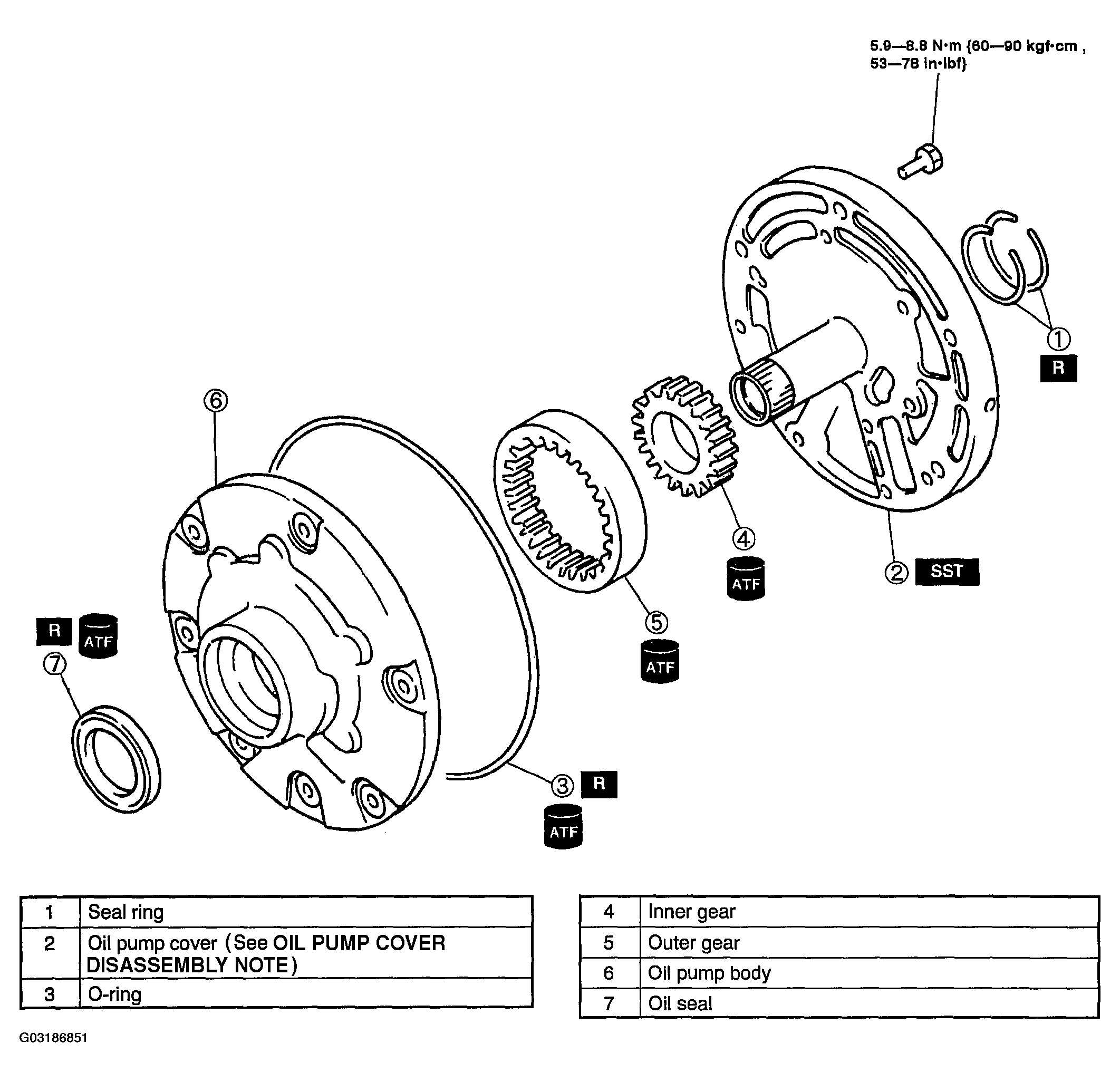

    2. Fig 1: Disassembling/Assembling Oil Pump
    G03186851Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
